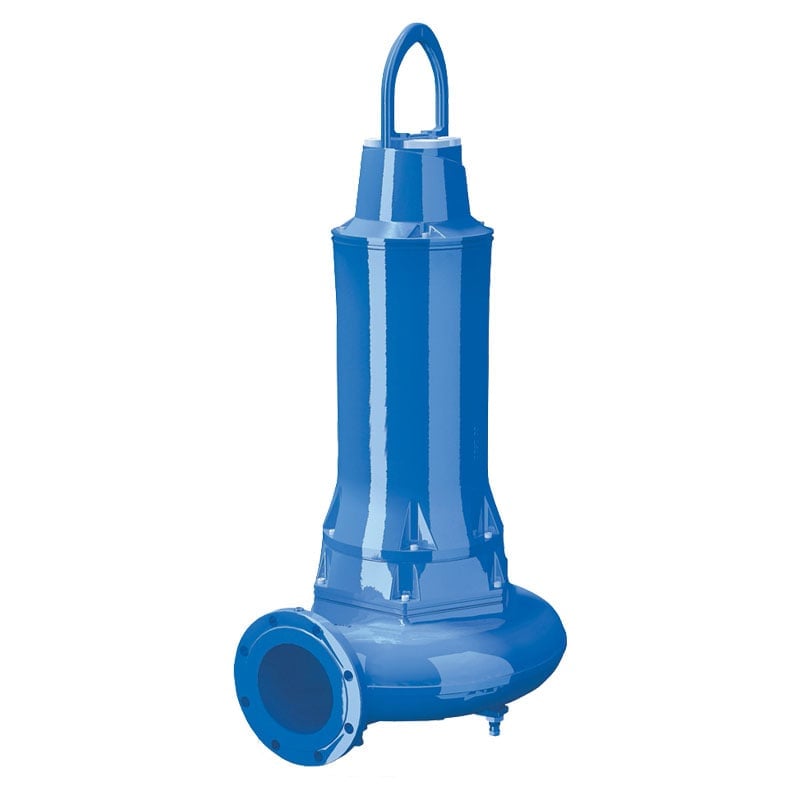

XFP150M 75kW Electric Submersible Wastewater pump

Click image to Zoom

The XFP150M (75kW) is a large 6” cast-iron electric submersible wastewater pump designed for handling solids on applications within the municipal, utilities and industrial sectors. Offering a maximum flow of 140 litres per second and a maximum head of 70 metres, the unit is trusted by utility and water companies alike to provide overpumping solutions for planned maintenance and emergencies. Operating on a powerful 75kW motor, the XFP150M is capable of handling sustained flows in a multitude of environments and has an automatic control feature that guarantees the unit is only functional when required.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

The XFP150M (75kW) is a large 6” cast-iron electric submersible wastewater pump designed for handling solids on applications within the municipal, utilities and industrial sectors. Offering a maximum flow of 140 litres per second and a maximum head of 70 metres, the unit is trusted by utility and water companies alike to provide overpumping solutions for planned maintenance and emergencies. Operating on a powerful 75kW motor, the XFP150M is capable of handling sustained flows in a multitude of environments and has an automatic control feature that guarantees the unit is only functional when required.

Click image to Zoom

Key Features

  • Contrabloc Impeller providesblockage-free operation
  • Premium Efficiency IE3 motorfor reduce energy consumption
  • Simple design allows minimalservice and maintenance
  • No vibration allows smoothrunning and constant flows
  • Easily portableso can be positioned quickly
  • Motor protection reducesthe risk of damage
  • Flexible configuration suitablefor both wet & dry installations
  • Simple installationfor instantaneous set-up

Environments

  • Building and construction
  • Emergency sewage pumping
  • Bypass and over-pumping
  • Wastewater treatment sites
  • Flood restoration
  • Manufacturing and industry
  • Industrial processes
  • Commercial premises
  • Agriculture
  • Utility industries

Accessories

  • 75Kw VFD Panel
  • 6" 10FT W/A SUCTION HOSE BAUER
  • 6" W/A SUCTION HOSE X 6MTS
  • 6" 20FT POLYTUBE
  • 6" X 6M HELIFLEX HOSE BAUER
  • 6" 10FT STEEL PIPE
  • 6" 20FT STEEL PIPE
  • 6" 45* BAUER BEND
  • 6" 90* BEND
  • 6" GATEVALVE
  • 6" NON-RETURN VALVE
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
XFP150M CB2.450
Motor type
415V
Motor rating
75kW
Max power input
79kW
Running current
131A
Discharge spigot
6"
Maximum solids
77 x52mm
EX Rated
Yes
Cooling jacket
Yes
Dimensions (H x W)
Guide rail option Height
1740 x 852 x 707mm
Free standing Height
1970 x 1265 x 800mm
Weight
1065kg
