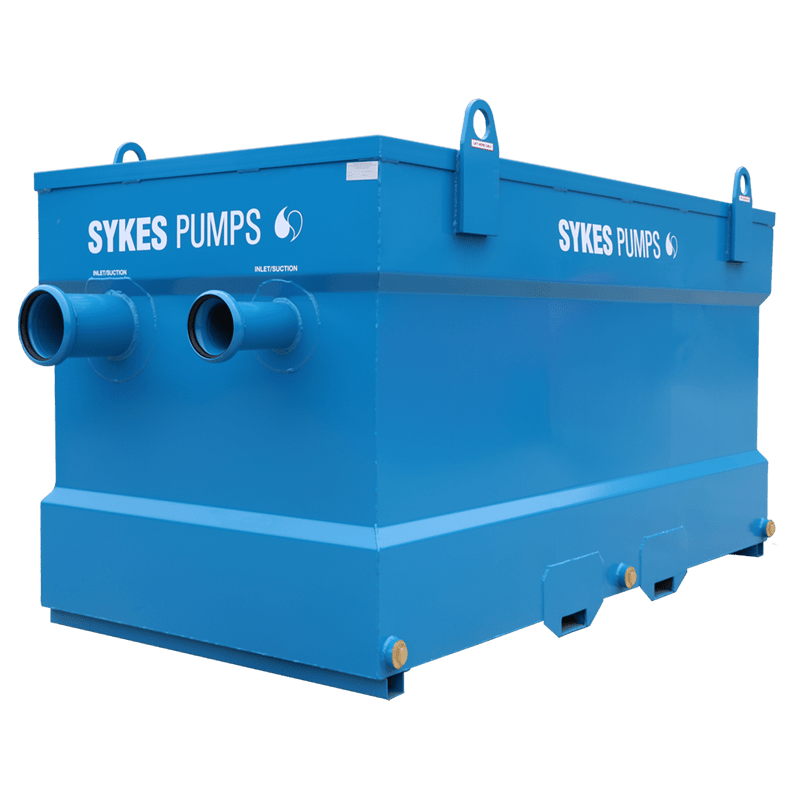

Settlement Tanks

With many authorities including the Environment Agency now insisting that settlement tanks are used on specific applications, it’s crucial that a reliable tank is used to maintain full pumping capacity whilst avoiding blocked drains. Sykes’ settlement tanks are designed to capture silt and suspended solids and prevent them from being discharged back into the watercourse. Our Settlement Tanks and Settlement Tank HD units are constructed from robust steel and feature a series of integral weir walls which aid effective settlement of the solids. These units also house multiple Bauer quick release couplings. Their design, which includes lifting eyes and drain bungs, enables two or more units to be linked together for multi-stage settlement, should this be required. The Settlement Tank HD is a heavy-duty version which also has fork pockets to allow the unit to be positioned on site with a fork lift.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Click image to Zoom

Features

  • Easy installation
  • Quick-release Bauer couplings for swift commissioning and decommissioning
  • Safe and easy to use allowing simplified operation
  • Environmentally-friendly enabling greater sustainability
  • Reliable product affording customer peace of mind
  • Robust construction facilitating use in testing applications

Environments

  • Clean and dirty water
  • Sludge
  • Utilities
  • Slurry
  • Quarries
  • Overpumping
  • Civil engineering
  • Wastewater
  • Tunneling
  • Agriculture
  • Local Authorities
  • Mines
  • Site dewatering

Settlement Tank

Capacity (litres)
3,000
Length (mm)
2,400
Width (mm)
1,200
Height (mm)
1,200
Weight at empty (kg)
805

Settlement Tank HD

Capacity (litres)
3,000
Height (mm)
1,460
Length (mm)
2,400
Weight Empty (Kg)
805
Width (mm)
1,220
