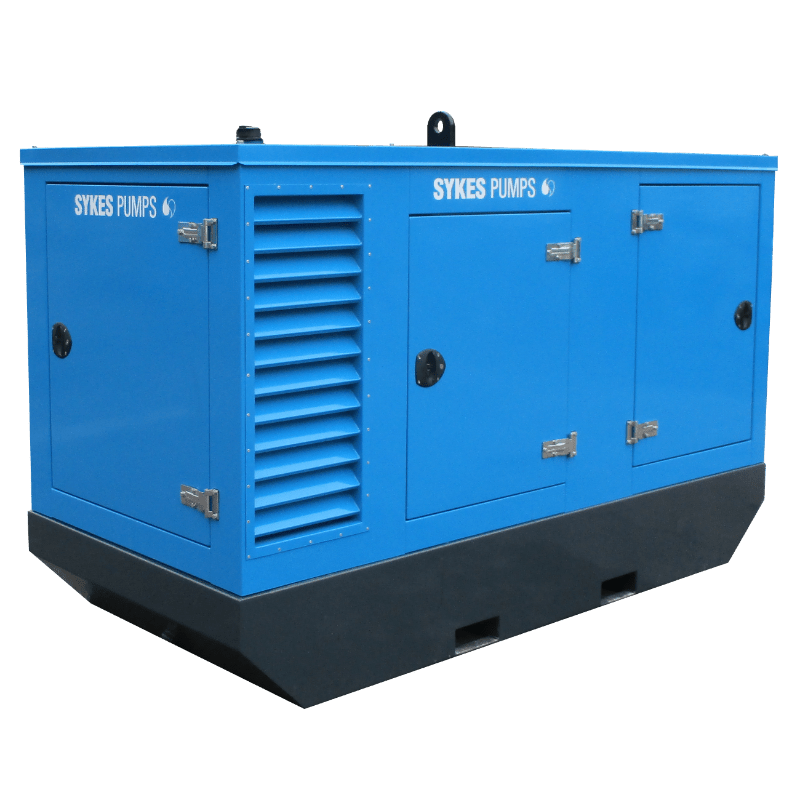

The HP150 Super Silenced is a low-noise high performance pump that has been purposefully manufactured for projects where very quiet operation is required. Specifically designed for use in jetting, dust suppression and temporary fire pump applications, the HP150 Super Silenced combines efficiency with a suitability to unattended operation. Ideal for scenarios where standard pump pressures are inadequate, this unit can deliver heads up to 90 metres and maximum flows of 100 litres per second. This 6” jetting pump incorporates a built-in fuel tank with a 170-litre capacity, enabling it to run for up to 24 hours before requiring refuelling. Featuring the Sykes Univac priming system, this pump utilises a 25 cfm rotary vacuum pump to allow automatic priming and re-priming from dry.
Key Features
- Low noise operationfor discreet use
- Hard-wearing partsfor robust applications
- Automatic priming and re-primingfor maximum efficiency
- Compact and manoeuvrablefor simple redeployment
- Hours of unattended operationfor continuous use
- Electric startfor swift functionality
- Economical operationfor greater fuel efficiency
- Standard skid base chassisfor easy placement
Environments
- Environmental
- Emergency pumping services
- Docks, ports and harbours
- Refineries
- Local authorities
- Film production and events
- Offshore and float outs
- Quarries and mines
- Building and construction
- Manufacture and industry
- Power generation
- Tunnelling
- Agriculture
- Washing plants
Accessories
- 2.5 INCH X 60FT JETTING HOSE
- JETTING STRAINER
- 6" X 3M W/A BAUER HOSE
- 6" 20FT W/A SUCTION HOSE BAUER
- 6" 20FT POLYTUBE
- 6" X 6MTR STEEL BAUER PIPE
- BUNDED FUEL TANK 1000 LITRE
- BUNDED FUEL TANK 2000 LITRE
- BUNDED FUEL TANK 3000 LITRE
Specifications
- Performance
- Max Head:- 90m, Max Flow:- 100 l/sec
- Weight
- 2,462 kg with fuel / 2,314 kg without fuel
- Dimensions (LxWxH) mm
- 2,720 x 1,250 x 1,790
- Noise level
- @7m= 65 dBA / 90 Lwa
- Fuel Tank Capacity
- 170 litres. Max 24 hours
- Pipe Connections
- Suction:- 6" table D / Bauer couplings option / Discharge:- 4" NP16 flanged
- Fuel Consumption
- Full Load @ 2,200 rpm:- 22 litres/hour
- Energy efficient duty point
- Fuel consumption @ 2,000 rpm:- 14 litres/hour
