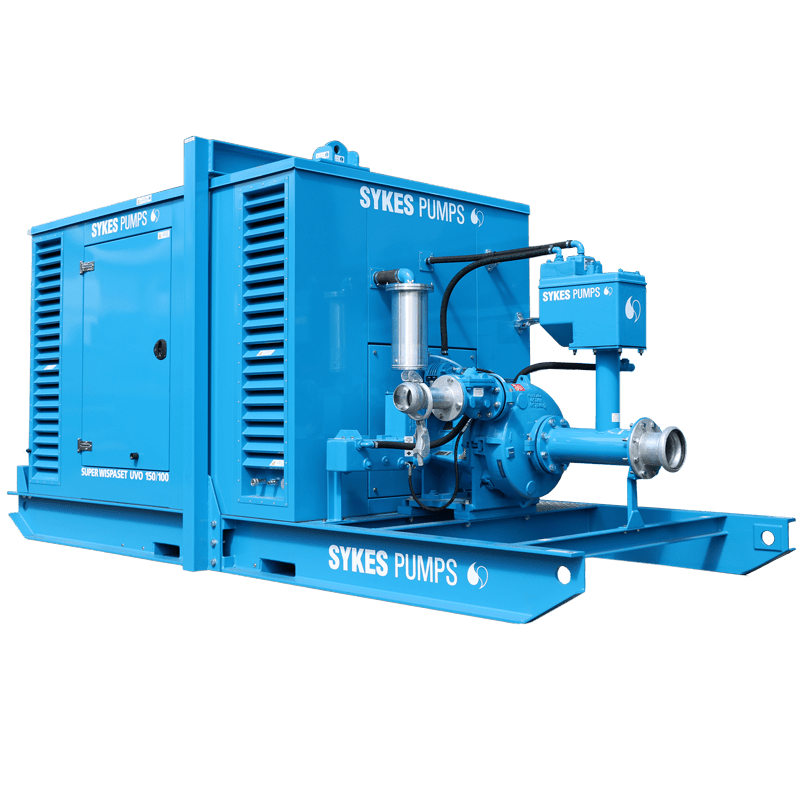

The Sykes Super Wispaset UVO 150/100 is a super silenced high-performance pump specifically designed for use on arduous, high head noise-sensitive applications. The pump runs on an innovative Tier 4-compliant Volvo TAD870VE engine which dramatically reduces emissions whilst meeting the latest European regulations. This market-leading product is contained within a sound-reducing canopy and has a maximum noise level of 70dBA at 7 metres. An average fuel consumption of just 16.8 litres an hour renders the Super Wispaset UVO 150/100 approximately 10% more efficient than comparable pumps on the market. The unit offers maximum heads of 93 metres and a maximum flow of up to 120 litres per second, while a built-in telemetry system provides detailed statistics about the pump’s performance.
Key Features
- Volvo TAD870VE enginefor optimum performance
- Low noise levelsfor use in built-up areas
- Low emissionsand compliant with latest European legislation
- Telemetry systemfor external performance monitoring and location tracking
- Remote start/stopfor full control on or off site
- High headcapable of discharge heads of over 90 metres
- Corrosion and abrasion resistantfor challenging outdoor locations
- Sykes auto self-primingenabling automatic priming from dry for ease of use
Environments
- Clean and dirty water
- Sludge
- Utilities
- Slurry
- Environmental
- Manufacturing and industry
- Quarries and mines
- Civil engineering
- Docks, ports & harbours
- Power stations
- Refineries
- Tunnelling
Accessories
- 8" INTAKE
- 8" 3M W/A BAUER HOSE
- 8" X 6M POLYTUBE BAUER DELIVERY
- 8" 20FT STEEL PIPE
- 8" 45* BAUER BEND
- 8" 90* BEND
- 8" GATEVALVE
- 8" NON RETURN VALVE
- SETTLEMENT TANK
- SYKES SILT AWAY
- ROAD CROSSING C/W 8" PN16 FLANGES
- BUNDED FUEL TANK 2800 LITRE
- BUNDED FUEL TANK 3000 LITRE
- 5M HP FUEL LINE
- RETAIL GAS OIL
Specifications
- Performance
- Max head:- 93 m
Max flow:- 120 l/s
Max solid:- 38 mm - Weight
- 4100 kg
- Dimensions (L x W x H)
- 4750 x 2120 x 2480
- Noise level
- @7m = 70 dBA
- Fuel capacity
- Separate bunded tanks available
- Pipe connections
- Suction:- 6" Table Discharge:- 4" NP16
Discharge:- 4" NP16Option Bauer Couplings - Fuel Consumption
- Full load @ 1800 rpm:- 28 litres/hour
- Energy Efficient duty point
- Fuel Consumption @ 1500 rpm:- 16.8 litres/hour
