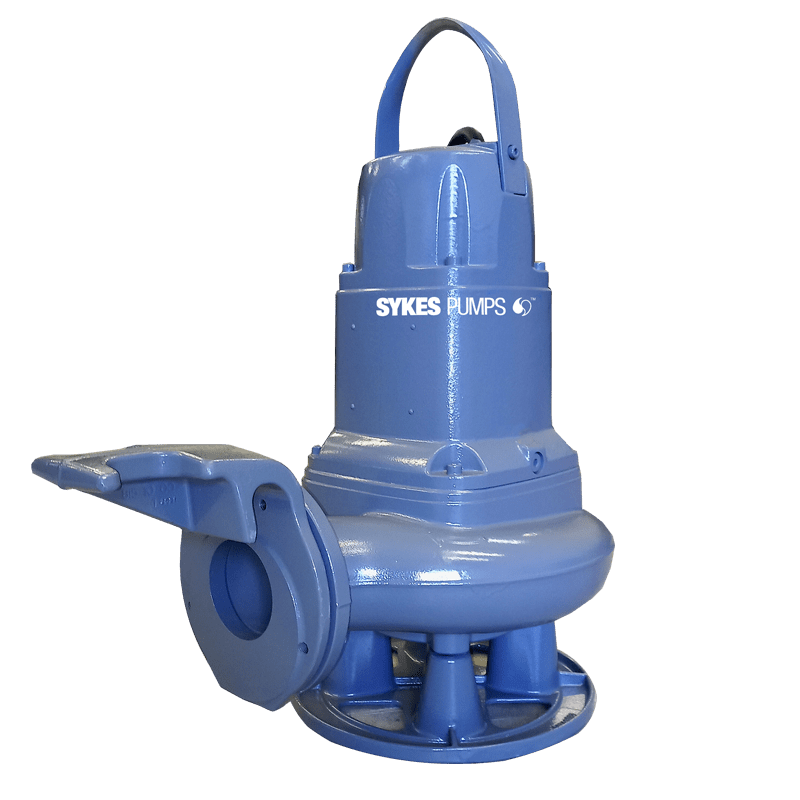

Variable Performance electric submersible wastewater pump

Click image to Zoom

Our Variable Performance pumps offer customers an unrivalled level of flexibility, with their varied performance curve allowing a single unit to be used in instances where three or four different types of pump may traditionally have been required. Entering the market as the world’s first pumping system to incorporate integrated intelligence, these Variable Performance units allow clients to minimise hire costs and reduce electricity usage. We offer these groundbreaking pumps in two models – the VP80 and the VP100 – with guide rail options also available.

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

Our Variable Performance pumps offer customers an unrivalled level of flexibility, with their varied performance curve allowing a single unit to be used in instances where three or four different types of pump may traditionally have been required. Entering the market as the world’s first pumping system to incorporate integrated intelligence, these Variable Performance units allow clients to minimise hire costs and reduce electricity usage. We offer these groundbreaking pumps in two models – the VP80 and the VP100 – with guide rail options also available.

Click image to Zoom

Key Features

  • Approvedfor use in hazardous environments
  • Eliminates the needfor multiple pumps on a typical project
  • Suitable for solids handlingand wastewater applications
  • Super Premium Efficiency motorfor lower running costs
  • Significantly reduced electricity usecompared with similar pumps
  • Flexible performance
  • Compatible with Sykes controlpanels for automatic stop/start

Environments

  • Construction
  • Emergency site drainage
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Industrial
  • General dewatering
  • Utilities
  • Power Generation

Accessories

  • 3"/4” 20FT W/A SUCTION HOSE BAUER
  • 3"/4” 20FT POLYTUBE
  • 3"/4” X 6M HELIFLEX PVC BAUER HOSE
  • 3"/4” 90* BEND
  • 3"/4” GATEVALVE
  • 3"/4” NON RETURN VALVE

Specifications

Model
VP80 VP100
Motor type (V)
415 (3-phase 50 Hz) 415 (3-phase 50 Hz)
Motor rating (kW)
7.3 7.3
Running current (A)
13.2 13.2
Discharge point (mm)
80 100
Suction inlet port (mm)
100 100
Maximum solids (mm)
N/A N/A
EX rated
Yes Yes
Cooling jacket
No No
Dimensions H x W (mm)
Guide rail option
655 x 410 685 x 470
Weight (Kg)
111 117
Transportable option
760 x 560 790 x 700
Weight (Kg)
127 137
