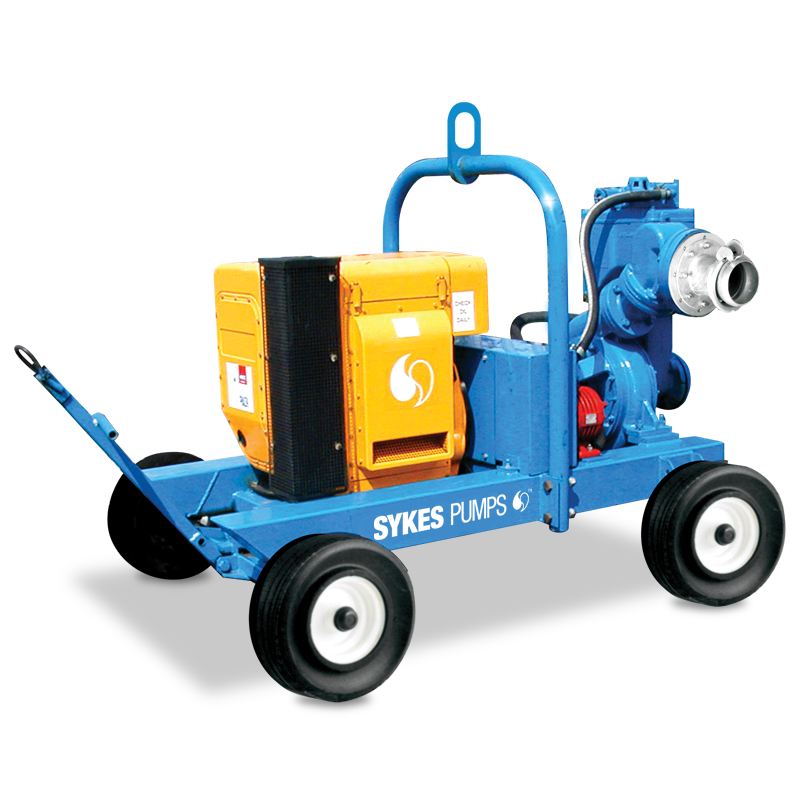

The GP 100 M is the general purpose industry standard for Constructers, Water utilities and local agencies. Used wherever there’s a need for positive self - priming, the GP100 M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 100 M, is powered by a 18.7kW Lister engine. All Sykes General Purpose pumps are available with alternative prime movers and mountings.

Pump performance

GP 100 M. Max Head: 31.0 m. Max Flow: 45.0 LxS. Max Solid: 44mm Here are the GP100 M dimensions. 1,,500 X 1,450 X 1,940mm and it weighs 998kg excluding fuel.

Features
  • Hard wearing cast Iron parts
  • Easy to tow
  • Corrosion resistant
  • Hours of unattended operation
  • Available as: A four wheeled site trailer
  • Automatic priming and re-priming
  • Available as: Skid mounted
  • Compact and manoeuvrable
  • Available as: High speed road trailer
  • Choice of engines
  • Easy maintenance
  • Electric motor option
Environments
  • Clean and dirty water
  • Over pumping
  • Heavy Sludge
  • Site dewatering
  • Heavy Slurry
  • Quarries
  • Waste water
  • 4" SPLIT INTAKE
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" LAYFLAT HOSE PER METRE
  • 4" BLUE LAYFLAT X 25M CW BAUERS
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • BUNDED FUEL TANK 1000 LITRE
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • RETAIL GAS OIL
  • 5M HP FUEL LINE
