LC25 Lamella Clarifier

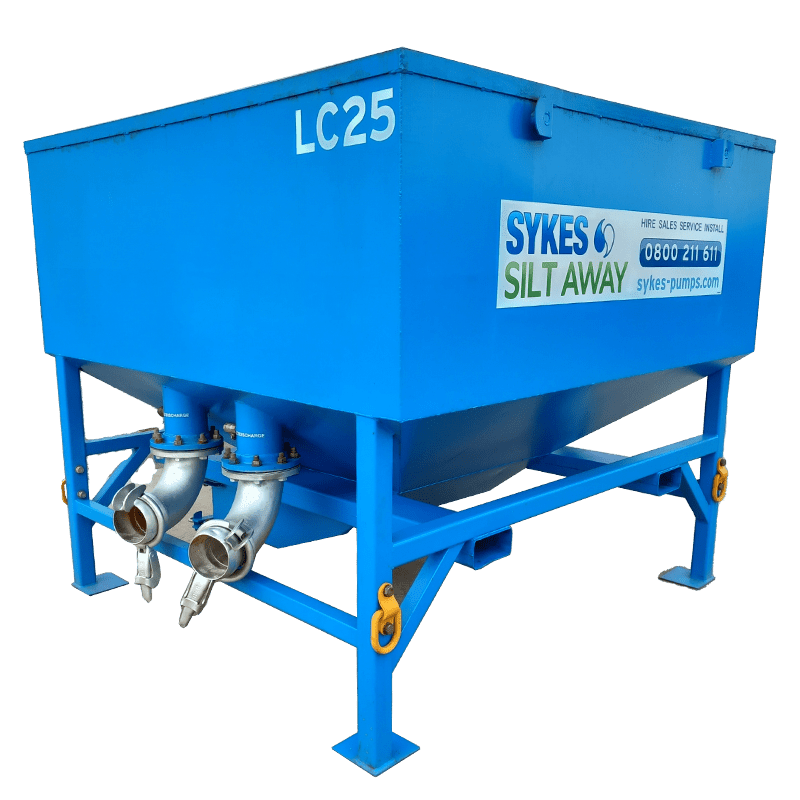

LC25 Lamella Clarifier Click image to Zoom

As part of our commitment to complying with growing environmental obligations, Sykes Pumps have developed our LC25 unit which can be used in conjunction with our range of 6” (150mm) pumps. The product has been specifically designed to separate suspended solids and sediment from water pumped from various ground sources, including construction sites, rivers and drains.

Pumped water passes through the filters via a Lamella platebox, allowing solids contained in water to drop into a discharge chamber below. This compartment can be easily emptied at ground level without the unit being decommissioned, making them perfect for applications were continuous operation is essential.

Get A Quote

As part of our commitment to complying with growing environmental obligations, Sykes Pumps have developed our LC25 unit which can be used in conjunction with our range of 6” (150mm) pumps. The product has been specifically designed to separate suspended solids and sediment from water pumped from various ground sources, including construction sites, rivers and drains.

Pumped water passes through the filters via a Lamella platebox, allowing solids contained in water to drop into a discharge chamber below. This compartment can be easily emptied at ground level without the unit being decommissioned, making them perfect for applications were continuous operation is essential.

LC25 Lamella Clarifier Click image to Zoom

Key Features

  • Effective separationof suspended solids
  • A robust, compact steel structure for maximum strength and durability
  • Low-level inlet and outlet connectionsfor safe, easy use
  • Fork lift pocketsto ease manoeuvrability
  • Water testing pointsfor outflow sampling
  • Large capacityfor applications where high flow is required
  • Designed for safe transportationto and from site
  • Innovativecleaning and emptying features

Specifications

Dimensions (L x W x H)
2320 x 2320 x 2015
Weight (kg)
1,196kg
Water Capacity
5,000 litres
Flange type
150mm NP16, fitted with 6” Bauer adaptors
Settlement Area
10m³
