Immediate Despatch

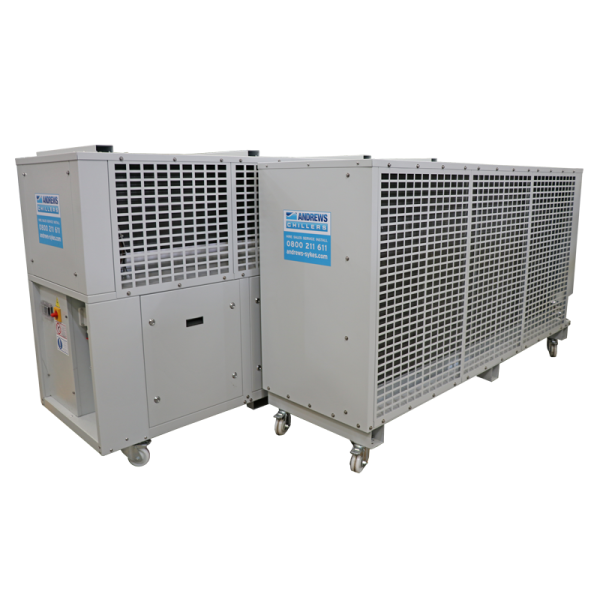

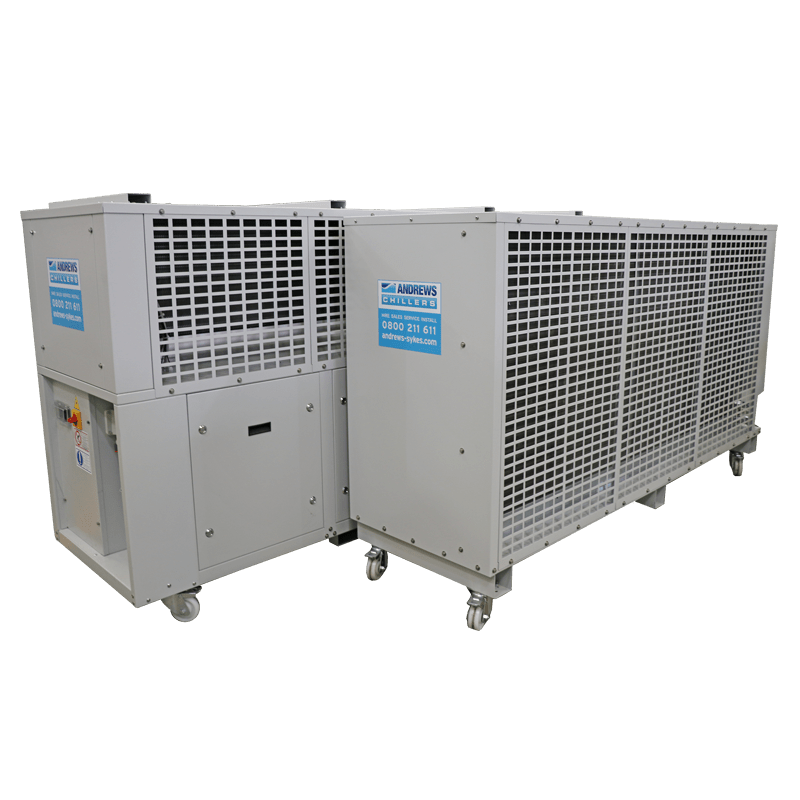

Fast Chill 90 Series 2
The Fast Chill 90 Series 2 is a robust and high-performing chiller that has been specifically designed for industrial applications where it is necessary to reduce temperatures to as low as -10⁰C. The product runs on the R454C gas refrigerant, which has a low global warming potential of 148 (GWP) and falls below the threshold value outlined in F-Gas regulations. Each unit incorporates a hot gas defrost system which pre-warms the water prior to draining, enabling an efficient heat exchange with any formed ice. Delivering a nominal cooling capacity of 26.1kW and significant airflows of 10,730m³/h, the Fast Chill 90 Series 2 is perfect for scenarios where specialist high capacity cooling is essential. The product features an automatic thermostat for accurate temperature control, and is widely used to provide large volume air conditioning to manufacturing processes and body storage areas.
Key Features
- Low temperature coolingdown to -10⁰C
- Quiet operationsuitable for noise-sensitive areas
- Quick installationideal for emergencies
- Economical performancelow running costs
- Low GWPenvironmentally friendly
- Robust constructiondesigned for use anywhere
- Highly reliableaffording customer peace of mind
- Flexible deploymentpre-charged glycol lines of up to 30m
Environments
- Cold stores
- Fresh meat cold rooms
- Temporary body storage
- Archive document storage
- Refrigerated warehouse
- Cellars
- Standby for cold stores
- Industrial processes
Accessories
- 20M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
- 10M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
- 15M CONECTING LINES (MAX 2 SETS)
- CONDENSATE HOSE
- FASTCHILL 90 OUTDOOR UNIT
Specifications
- Nominal cooling duty
- 26.1 kW
- Air flow (max)
- 10,730 m³/h
- Plug type
- BS4343 63 A 5 Pin
- Power supply
- 415 V 3 ph N+E 50 Hz Run 43 A
- Indoor noise level (max)
- 60 dBA / 66 LWA @ 3 metres
- Outdoor noise level (max)
- 71 dBA / 73 LWA @ 1 metre
- Indoor weight
- 530 kg
- Outdoor weight
- 295 kg
- Indoor dimensions (L x W x H)
- 2,700 x 750 x 1,300 mm
- Outdoor dimensions (L x W x H)
- 2,355 x 700 x 1,365 mm
- Control
- Automatic thermostat
- Average power consumption
- 17.8 kW/h
- Line length
- 15 metres (max = 30 metres)
- Operating temp range
- -10⁰C to + 30⁰C
- Generator size
- 40 kVA
