Home Chillers Chillers 30kW HP Fluid Chiller

30kW HP Fluid Chiller

The 30kW HP is a compact and energy efficient fluid chiller suitable for a multitude of applications where both chilled and hot water are required. The unit’s heat pump technology (HP) produces a heat capacity of up to 33kW. This cooling unit can be connected to any fan coil in the Andrews range and is capable of reducing temperatures to as low as -5 ̊C. The 30kW HP’s adaptability renders it perfect for accommodating commercial and industrial requirements, making it an ideal choice for events and exhibitions, scheduled chiller maintenance and product storage.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

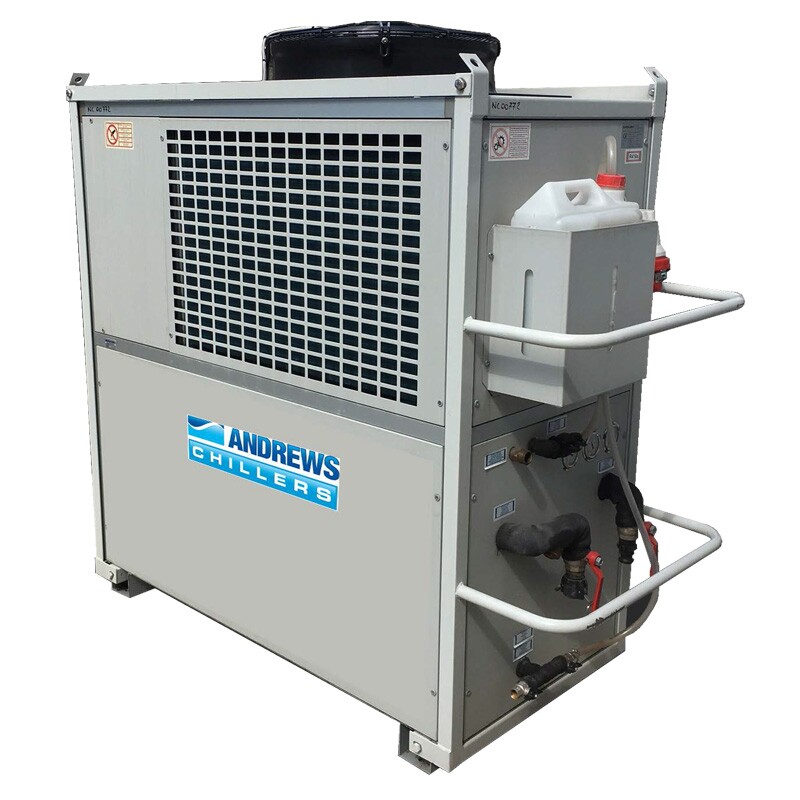

30kW HP Fluid Chiller Angle View Click image to Zoom

Features

  • Compact unit – can be used in restricted areas
  • Low temperature capability – down to as low as -5 ̊C
  • Quiet operation - low noise level of 70 dBA @ 10 metres
  • Economical – reducing running costs
  • Fast connecting line couplings – for simple and fast installation
  • Provides both heating and cooling – for all year-round use
  • Fully portable – can be positioned more easily
  • Robust construction – will stand up to the rigours of industrial use

Environments

  • Product storage
  • Process cooling
  • Pharmaceuticals
  • Disaster recovery
  • Food and beverages
  • Marquees
  • Scheduled chiller maintenance
  • Events and exhibitions
  • Agriculture
  • Manufacturing and industry

Accessories

  • 20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
  • 10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
  • 1.25 BORE HOSE PER METER
  • FAN COILS/ AHU'S
  • MANIFOLDS
  • SYSTEM CONNECTION FITTINGS
  • PLATE HEAT EXCHANGER

Specifications

Nominal cooling duty
30kW
Nominal heating duty (HP version)
33 kW
Power supply
415 V 3 ph N+E 50 Hz Run 25 A
Plug type
BS4343 32 A 5 pin
Noise level (max)
70 dBA @ 10 metres
Weight
635 kg
Dimensions (L x W x H)
1,775 x 863 x 1,675 mm
Control
Automatic programmer
Average power consumption
7.7 kW/h
Generator size
40 kVA
Water connection
32mm (1 1 /4”) Camlock
Nominal water flow
1.4 l/s
