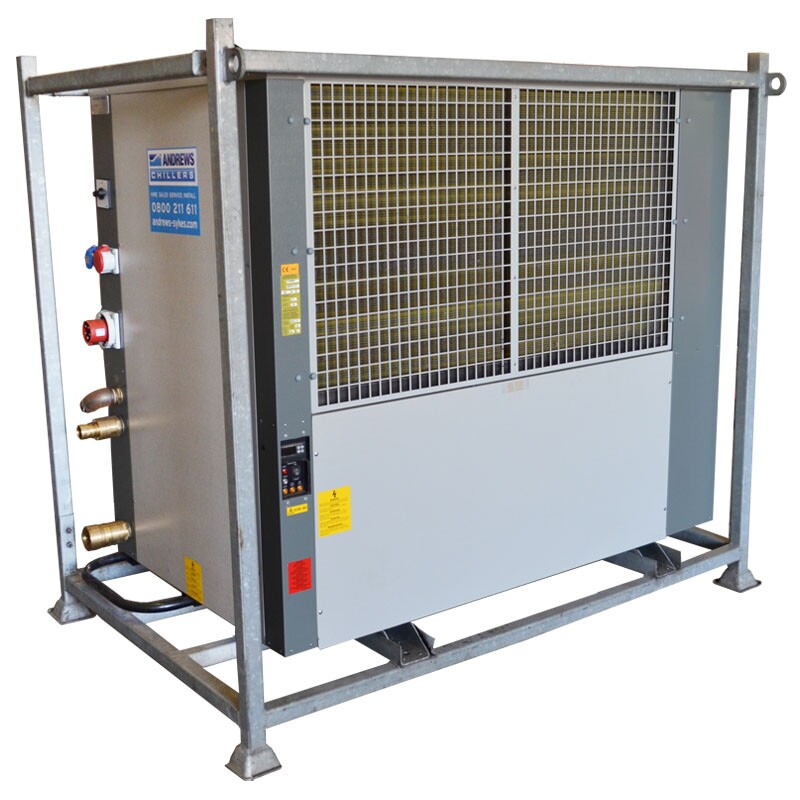

The FC90 refrigeration unit is a robust Chiller unit, designed with a crash frame enabling it to be protected in industrial applications. This split line fluid chiller is quick to install delivering fast and efficient cooling capacity down to -10°C. The FC90 has the ability to maintain environments between +/- 0.5°C while guaranteeing a maximum airflow of 10,000 m3, making it an ideal solution for temporary body storage and large volume air conditioning.
Feature
down to -10 ° C
for deployment in noise-sensitive areas
for flexible deployment
ensuring low running costs
allowing simplified operation
enabling greater sustainability
affording customer peace of mind
facilitating use in any application
| Nominal cooling duty | 26.3 kW |
|---|---|
| Air flow (max) | 10,000 m3 /h |
| Plug type | 63 A 3 ph N+E |
| Power supply | 415 V 3 ph N+E 50 Hz Run 37 A |
| Indoor noise level (max) | 63 dBA @ 3 metres |
| Outdoor noise level (max) | 73 dBA @ 1 metre |
| Indoor weight | 597 kg |
| Outdoor weight | 460 kg |
| Indoor dimensions (L x W x H) | 2,000 x 1,400 x 1,850 mm |
| Outdoor dimensions (L x W x H) | 1,450 x 1,350 x 1,800 mm |
| Control | Automatic thermostat |
| Average power consumption | 27.0 kW/h |
| Line length | 15 metres (max = 30 metres) |
| Operating temp range | -10ºC to +30ºC |
| Generator size | 30 kVA |
20M x 5 PIN 63 AMP 415V EXTENSION LEAD 10MM DIA
10M x 5 PIN 63 AMP 415V EXTENSION LEAD 10MM DIA
15M CONECTING LINES (MAX 2 SETS)
CONDENSATE HOSE
FASTCHILL 90 OUTDOOR UNIT
Cold stores
Fresh meat cold rooms
Temporary body storage
Archive document storage
Large volume air conditioning
Refrigerated warehouses
Beer cellars
Stand by for cold stores
Vegetable storage
Industrial processes
