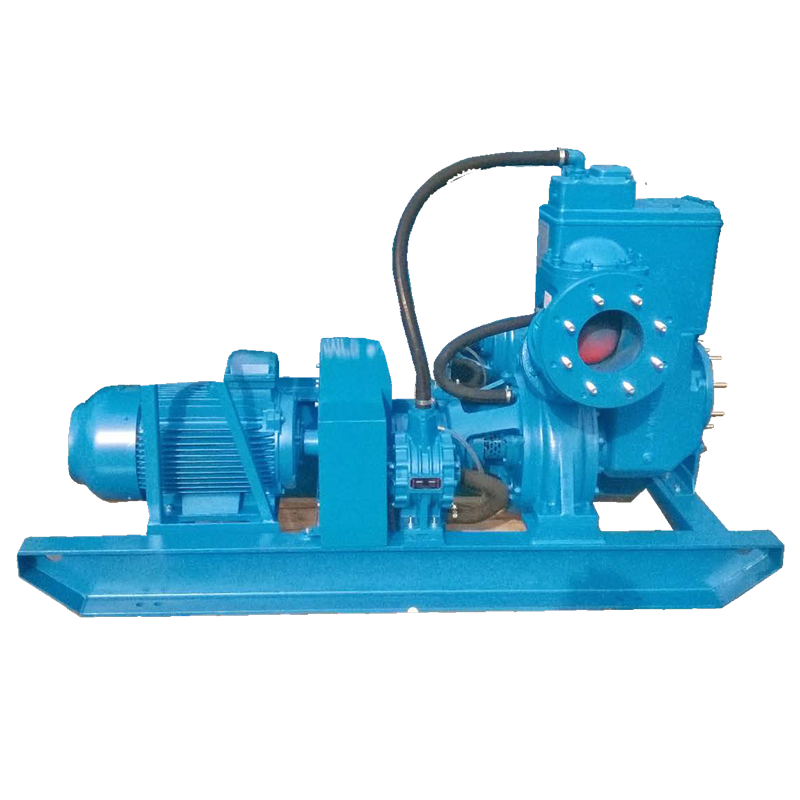

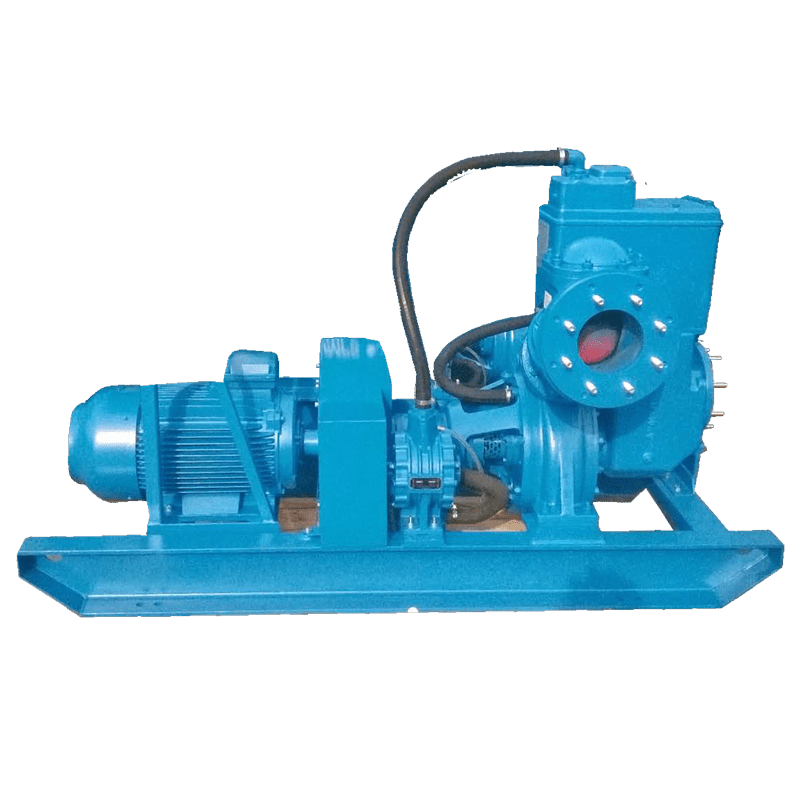

GP150E electric general purpose pump

The GP150E is a market-leading 6” electric general purpose pump that provides clients with a viable alternative to diesel driven units. Incorporating a modern electric motor, this product offers cleaner and quieter pumping while simultaneously helping customers to drastically reduce their carbon footprint. In addition to being ‘greener’ than comparable models available elsewhere, the GP150E requires only connection to a local power supply in order to function. Designed for construction, utilities, civil engineering and over-pumping projects, this lightweight unit can handle flows of up to 80 litres per second and solids of up to 44mm.

0800 211 611 Get A Quote

Click image to Zoom

Features

Minimised environmental impact
Hours of unattended operation for continuous use
Hard-wearing parts for robust applications
Automatic priming and re-priming for maximum efficiency
Compact and lightweight for simple redeployment
52 mm solids handling capability
Electric motor for quiet operation
Compatible with generators for greater flexibility
Various drive options

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Over-pumping
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Construction projects

Accessories

6" SPLIT INTAKE
6" 10FT W/A SUCTION HOSE BAUER
6" W/A SUCTION HOSE X 6MTS
6" 20FT POLYTUBE
6" X 6M HELIFLEX HOSE BAUER
6" LAYFLAT HOSE PER METRE
6" BLUE LAYFLAT X 25M CW BAUERS
6" 10FT STEEL PIPE
6" 20FT STEEL PIPE
6" 45* BAUER BEND
6" 90* BEND
6" GATEVALVE
6" NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6" PN16 FLANGES
ROAD RAMP WIDE C/W 6" PN16 FLANGES
ROAD CROSSING C/W 8" PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Specifications

Performance: Max Head:- 27m
Max Flow:- 80 l/sec
Max solids:- 52mm
Weight: 843kg
Dimensions (LxWxH) mm: 2,096 x 850 x 1,285
Noise level: @7m= 68 dBA
Pipe Connections: Suction:- 6" table D
Discharge:- 6" table D
Bauer couplings option:- 6"
Motor: 22kW IE3 motor, 415V 3ph 50HZ
