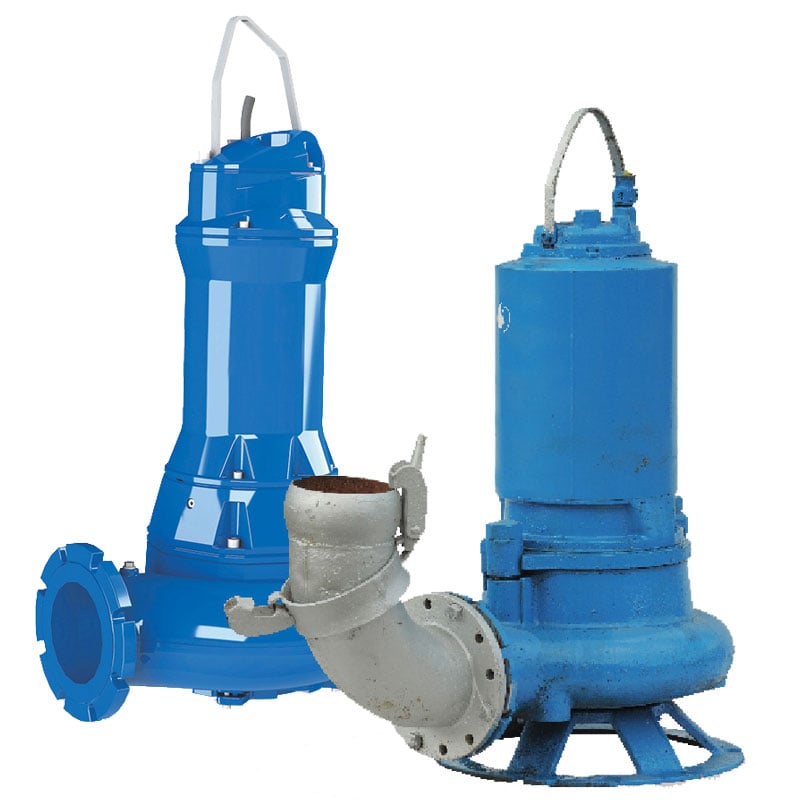

AFPK1575 / KE023 Electric Submersible Wastewater Pumps

Click image to Zoom

These durable 8” electric submersible wastewater pumps offer a pumping solution for applications that include utilities, industrial, infrastructural and others. Capable of delivering maximum flows of up to 195 litres per second and heads of up to 34 metres, these high-performance pumps are known for their reliability and can be adapted to any guide rail arrangement you have in place. An automatic control feature guarantees that the pumps run only when required, conserving energy throughout a project.

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

These durable 8” electric submersible wastewater pumps offer a pumping solution for applications that include utilities, industrial, infrastructural and others. Capable of delivering maximum flows of up to 195 litres per second and heads of up to 34 metres, these high-performance pumps are known for their reliability and can be adapted to any guide rail arrangement you have in place. An automatic control feature guarantees that the pumps run only when required, conserving energy throughout a project.

Click image to Zoom

Key Features

  • Spiral-grooved plate and cutterprovides blockage-free operation
  • Double mechanical sealsfor maximum abrasive resistance
  • Premium Efficiency IE3 motorfor reduce energy consumption
  • Simple design allows minimalservice and maintenance
  • Easily portableso can be positioned quickly
  • Motor protection reducesthe risk of damage
  • Flexible configuration suitablefor both wet & dry installations
  • No vibration allows smoothrunning and constant flows

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Manufacturing and industry
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries

Accessories

  • VARIABLE PANEL 18KW TO 56KW
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON-RETURN VALVE
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
AFPK1575KE203
Motor type
415V (3-Phase) 50Hz415V (3-Phase) 50Hz
Motor rating
37kW22kW
Running current
69A44A
Running speed
1450 rpm1450 rpm
Discharge port
150mm200mm
Suction inlet port
150mm200mm
Maximum solids
100mm90 x 70mm
EX Rated
YesNo
Cooling jacket
YesYes
Dimensions (H x W)
Guide rail option
1330 x 670mm1235 x 720mm
Weight
582kg440kg
Transportable option
1485 x 1020mm1380 x 1255mm
Weight
612kg500kg
