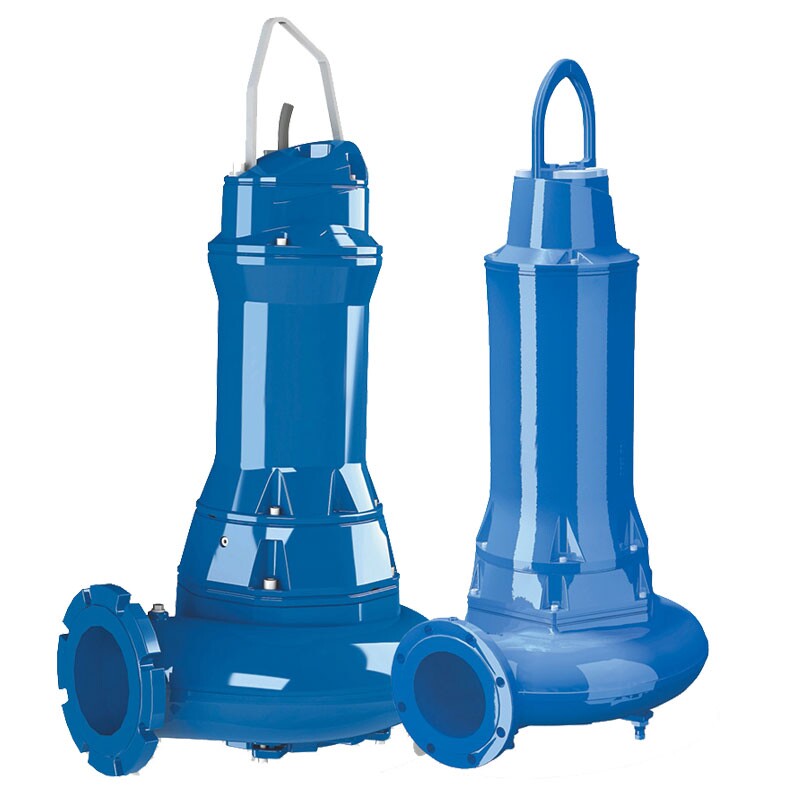

AFPK2045 / XFP200G Electric Submersible Wastewater Pumps

These large 8” electric submersible wastewater pumps deliver medium head and large flow performance, offering flows of up to 165 litres per second and heads of up to 30 metres. With a solids handling capability of 125mm, these pumps are ideally suited to the municipal, utility and industrial sectors. They can be adapted for guide rail applications and used in conjunction with automatic control panels which guarantee the unit will only run when required to conserve energy.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Click image to Zoom

Features

  • Contrabloc Impeller provides blockage-free operation
  • Double mechanical seals for maximum abrasive resistance
  • Premium Efficiency IE3 motor for reduce energy consumption
  • Simple design allows minimal service and maintenance
  • Easily portable so can be positioned quickly
  • Motor protection reduces the risk of damage
  • Flexible configuration suitable for both wet & dry installations
  • No vibration allows smooth running and constant flows

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Manufacturing and industry
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries

Accessories

  • VARIABLESOFT START PANEL 22Kw
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON-RETURN VALVE
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
AFPK2045XFP200G
Motor type
415V (3-Phase) 50Hz415V (3-Phase) 50Hz
Motor rating
14kw22kw
Running current
27.7A42.6A
Running speed
1450 rpm1450 rpm
Discharge port
200mm200mm
Suction inlet port
200mm200mm
Maximum solids
125 x 100mm125mm
EX Rated
YesYes
Cooling jacket
YesYes
Dimensions (H x W)
Guide rail option
1195 x 690mm1388 x 690mm
Weight
375kg397kg
Transportable option
1390 x 1210mm1541 x 1150mm
Weight
425kg460kg
