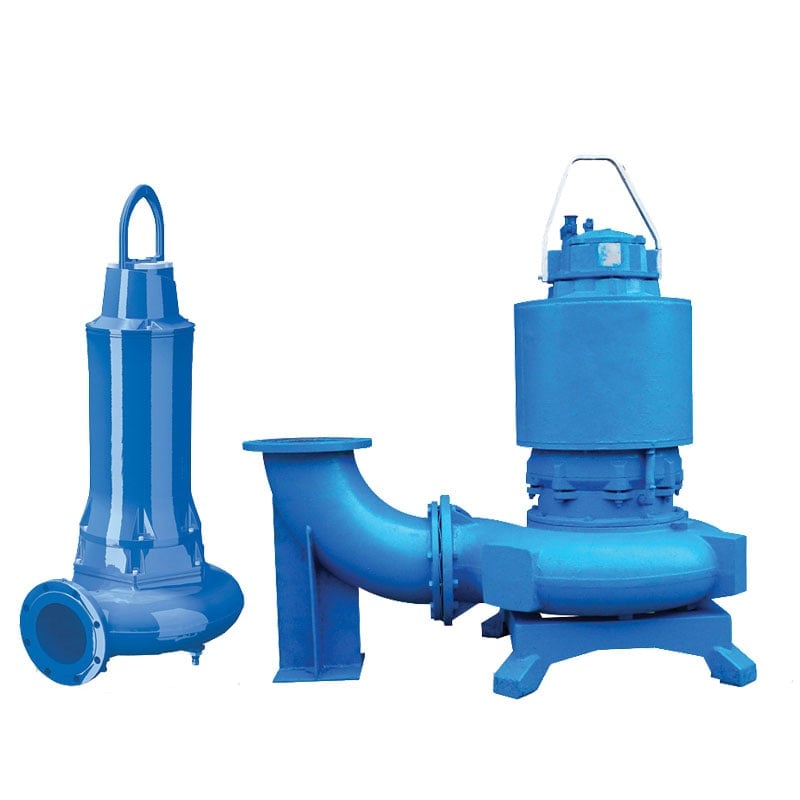

AFPK2073 / KE304 Electric Submersible Wastewater Pumps

These large 12โ€ electric submersible wastewater pumps provide clients with a large solids handling capability that can operate at heads of up to 34 metres. Delivering maximum flows of up to 400 litres per second, the pumps have been designed for use in a broad spectrum of environments including commercial, industrial and infrastructural. Each unit is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

Key Features

Feature

Feature

Contrabloc Impeller provides

blockage-free operation

Double mechanical seals

for maximum abrasive resistance

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Flexible configuration suitable

for both wet & dry installations

No vibration allows smooth

running and constant flows

Product Specification

Additional information

Model

KE304 / AFPK2073

Motor type

415V (3-Phase) 50Hz

Motor rating

50kw / 55kw

Running current

91A / 94A

Running speed

980 rpm / 1450 rpm

Discharge port

300mm / 200mm

Suction inlet port

300mm / 200mm

Maximum solids

100 x 150mm / 100mm

EX Rated

No / Yes

Cooling jacket

Yes

Guide rail option

1630 x 1100mm / 1490 x 775mm

Transportable option

1850 x 1730mm / 1520 x 1235mm

Weight

1070kg / 940kg

Accessories

  • VARIABLE PANEL 18KW TO 56KW
  • 12″ W/A SUCTION HOSE X 6MTS
  • 12″ 10FT STEEL PIPE
  • 12″ FLANGED HIGH PRESSURE HOSE X 6MTS
  • 12″ 45* BAUER BEND
  • 12″ 90* BAUER BEND
  • 12″ FLANGED 45* BEND
  • 12″ FLANGED 90* BEND
  • 12″ GATEVALVE
  • 12″ NON-RETURN VALVE

Environments

  • Contrabloc Impeller provides blockage-free operation
  • Double mechanical seals for maximum abrasive resistance
  • Premium Efficiency IE3 motor for reduce energy consumption
  • Simple design allows minimal service and maintenance
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries
