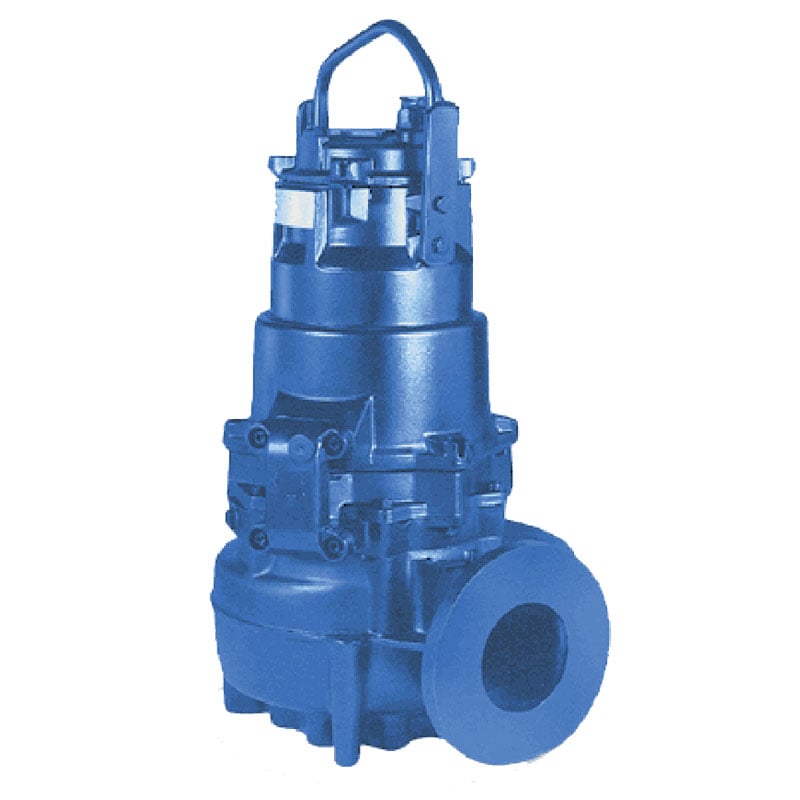

CS3152 Electric Submersible Wastewater pump

Click image to Zoom

This large 10” electric submersible wastewater pump delivers low head, high flow performance with an economical 8.8 kW motor. The unit can achieve heads of nine metres and flows of up to 260 litres per second, with a solids handling capability of between 100-150mm. It is ideal for low head sewage applications and compatible with all guide rails, providing customers with the perfect replacement pumping solution.

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

This large 10” electric submersible wastewater pump delivers low head, high flow performance with an economical 8.8 kW motor. The unit can achieve heads of nine metres and flows of up to 260 litres per second, with a solids handling capability of between 100-150mm. It is ideal for low head sewage applications and compatible with all guide rails, providing customers with the perfect replacement pumping solution.

Click image to Zoom

Key Features

  • Contrabloc Impeller providesblockage-free operation
  • Premium Efficiency IE3 motorfor reduce energy consumption
  • Simple design allows minimalservice and maintenance
  • No vibration allows smoothrunning and constant flows
  • Easily portableso can be positioned quickly
  • Motor protectionreduces the risk of damage
  • Flexible configuration suitablefor both wet & dry installations
  • Simple installationfor instantaneous set-up

Environments

  • Building and construction
  • Emergency sewage pumping
  • Bypass and over-pumping
  • Wastewater treatment sites
  • Flood restoration
  • Manufacturing and industry
  • Industrial processes
  • Agriculture
  • Utility industries
  • Commercial premises

Accessories

  • VARIABLE D.O.L. PANEL 1KW TO 15KW
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON-RETURN VALVE
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
CS3152-LT
Motor type
415V (3-Phase) 50Hz
Motor rating
8.8kW
Running current
19A
Running speed
1450 rpm
Discharge port
250mm
Suction inlet port
250mm
Maximum solids
102 x 102mm
EX Rated
No
Cooling jacket
No
Dimensions (H x W)
Guide rail option
1055 x 765mm
Weight
300kg
Transportable option
1255 x 1315mm
Weight
360kg
