Features & Environments

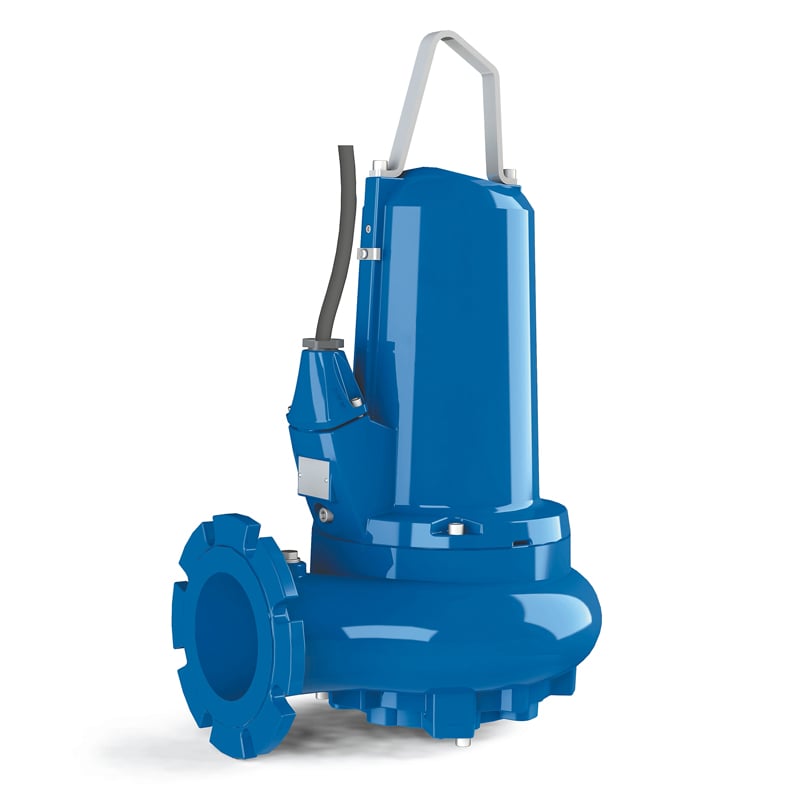

Sykes XFP100E CB1.1 electric submersible wastewater pump delivers a maximum flow of up to 60 litres per second and a head up to 25m. Constructed from cast iron this pump is extremely robust at a weight of 190Kg.
Used by water companies in their wastewater collection networks, pays testament to the high performance and reliability of this pump. This product is ideal for dealing with wastewater from commercial premises and office blocks or in pumping stations if an existing pump has to be removed for repair. Also suitable for use in industrial processes where fibrous material or solids are present.
A range of adaptors allows this pump to be adapted to replace pumps of other manufacturers either down guide rails of free standing.
Fitted with 20m of cable this pump can be provided for connection in crimp terminals or fitted with lugs for stud termination. For non “Ex” applications we can also fit a 32A 4 pin 415V appliance inlet making the pump ready for plug and pump.
As standard this pump is fitted with a Premium Efficiency IE3 Motor suitable for use in Explosion proof Zone 2 applications.
When used with a Sykes control panel the pump can benefit from automatic level control and additional overload and motor over-temperature protection. Automatic control ensures the pumps only run when required reducing energy usage.
Our Electric Wastewater pumps require minimal maintenance providing trouble free pumping for months on end, meaning that for most applications the pumps do not need to be disturbed for the duration of the scheme.
- Weight (kg)
- Dimensions (mm)
- Guide rail configuration (HxW)mm: 835 x 510 Free Standing configuration (HxW)mm: 905 x 790
- Motor Type (V)
- 415v 50Hz
- Discharge Spigots
- 4” Bauer
- Motor Rating (kW)
- Cable termination
- Tails, lugs or 32A 4 pin 415V appliance inlet (plug) for non-Ex
- Max Power Input (kW)
- Cable length
- Running Current (Amps)
- 18 Amps
- VARIABLE PANEL 1KW TO 15KW
- 4" X 3M W/A BAUER HOSE
- 4" 20FT W/A SUCTION HOSE BAUER
- 4" 20FT POLYTUBE
- 4" X 6M HELIFLEX PVC BAUER
- 4" X 6MTR STEEL BAUER PIPE
- 4" 45* BAUER BEND
- 4" 90* BEND
- 4" GATEVALVE
- 4" NON RETURN VALVE
- ROAD RAMP C/W 6" PN16 FLANGES
- ROAD RAMP WIDE C/W 6" PN16 FLANGES
- ROAD CROSSING C/W 8" PN16 FLANGES
