AFPK1043 Electric Submersible Wastewater pump

Pump Hire Submersible Wastewater

Motor Type (V) 415v 50Hz
Motor Rating (kW) 7kW
Model AFPK1043

Get a Hire Quote

Product Features

Contrabloc Impeller provides blockage-free operation

Premium Efficiency IE3 motor for reduce energy consumption

Simple design allows minimal service and maintenance

No vibration allows smooth running and constant flows

Easily portable so can be positioned quickly

Motor protection reduces the risk of damage

Compact so fits small spaces

Simple installation for instantaneous set-up

Description

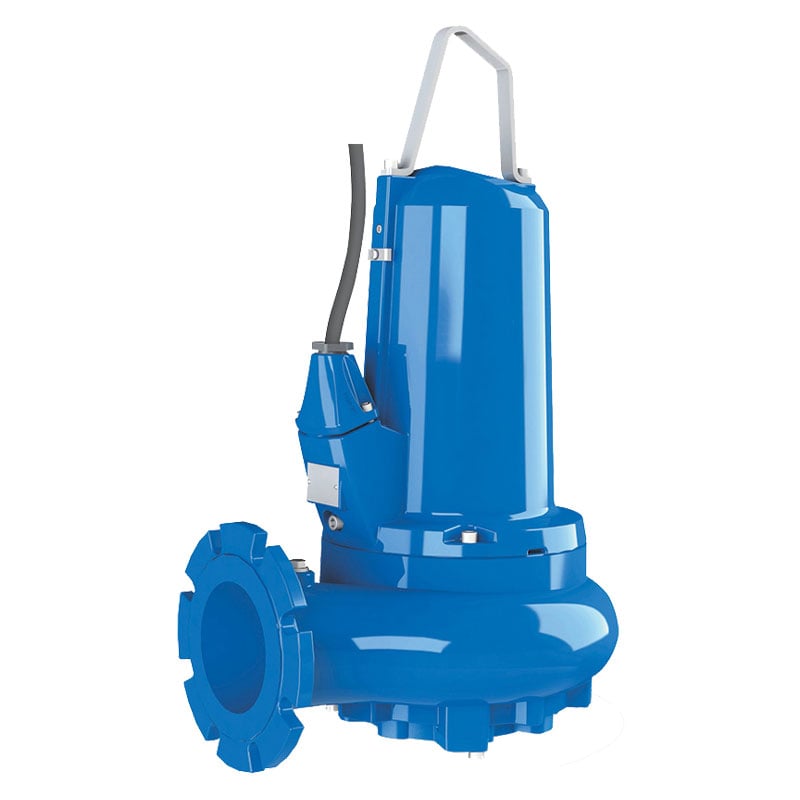

The AFPK1043 is a cast-iron electric submersible wastewater pump capable of handling solids of up to 55 millimetres in diameter. Offering a maximum flow of 35 litres per second and maximum head of 35 metres, the unit is trusted by utility and water companies alike and is ideally suited for temporarily replacing permanent solutions on customer sites. Fitted with an efficient 7kW motor, the AFPK1043 is capable of handling sustained flows in a multitude of environments.

Accessories

VARIABLE D.O.L. PANEL 1KW TO 15KW

4" X 3M W/A BAUER HOSE

4" 20FT W/A SUCTION HOSE BAUER

4" 20FT POLYTUBE

4" X 6M HELIFLEX PVC BAUER

4" X 6MTR STEEL BAUER PIPE

4" 45* BAUER BEND

4" 90* BEND

4" GATEVALVE

4" NON RETURN VALVE

Downloads

Specification Sheet

Specifications

Model AFPK1043

Motor type 415V (3-Phase) 50Hz

Motor rating 7kW

Running current 13.6A

Running speed 2900 rpm

Discharge port 100mm

Suction inlet port 100mm

Maximum solids 55mm

Ex Rated No

Cooling jacket Yes

Dimensions (H x W)

Guided rail option 725 x 455mm

Weight 125kg

Transportable option 855 x 720mm

Weight 124kg
