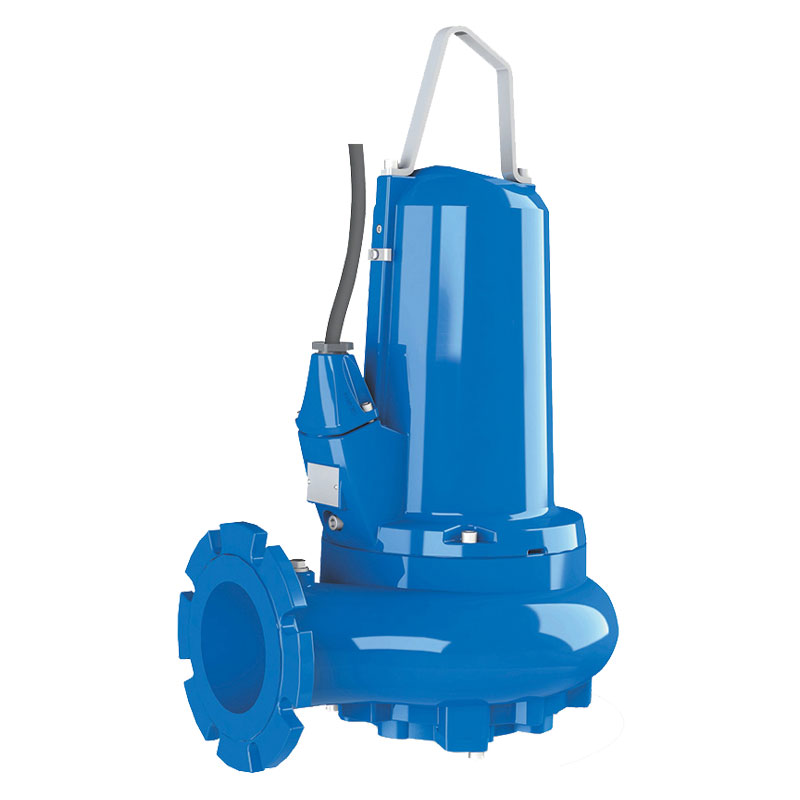

AFPK1045 Electric Submersible Wastewater pump

Click image to Zoom

The AFPK1045 is a cast-iron electric submersible wastewater pump available in two versions and has been designed for use in a broad range of applications. With a maximum flow of 64 litres per second, the 18.5kW version delivers a head of 36 metres while the 11kW version delivers heads of up to 27 metres. The pumps’ impressive solids handling capabilities are ideal for use across most market sectors including wastewater transportation. The AFPK1045 is compatible with guide rails and offers a reliable solution in instances where existing pumping arrangements have failed unexpectedly.

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

The AFPK1045 is a cast-iron electric submersible wastewater pump available in two versions and has been designed for use in a broad range of applications. With a maximum flow of 64 litres per second, the 18.5kW version delivers a head of 36 metres while the 11kW version delivers heads of up to 27 metres. The pumps’ impressive solids handling capabilities are ideal for use across most market sectors including wastewater transportation. The AFPK1045 is compatible with guide rails and offers a reliable solution in instances where existing pumping arrangements have failed unexpectedly.

Click image to Zoom

Key Features

  • Contrabloc Impeller providesblockage-free operation
  • Premium Efficiency IE3 motorfor reduce energy consumption
  • Simple design allowsminimal service and maintenance
  • No vibration allows smoothrunning and constant flows
  • Easily portableso can be positioned quickly
  • Motor protection reducesthe risk of damage
  • Compactso fits small spaces
  • Simple installationfor instantaneous set-up

Environments

  • Building and construction
  • Sewage pumping
  • Bypass and over-pumping
  • Wastewater treatment
  • Industrial processes
  • Agriculture
  • Utility industries
  • Commercial premises
  • Flood restoration
  • General maintenance

Accessories

  • VARIABLE PANEL 1KW TO 15KW - 11KW Pump
  • VARIABLE SOFT START PANEL 18KW TO 56KW - 18.5KW Pump
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE

Specifications

Model
AFPK1045AFPK1045
Motor type
415V (3-Phase) 50Hz415V (3-Phase) 50Hz
Motor rating
11kW18.5kW
Running current
22.1A35.6A
Running speed
1450 rpm1450 rpm
Discharge port
100mm100mm
Suction inlet port
150mm150mm
Maximum solids
100mm100mm
Ex Rated
NoNo
Cooling jacket
YesYes
Dimensions (H x W)
Guided rail option
1145 x 550mm1145 x 550mm
Weight
310kg320kg
Transportable option
1295 x 940mm1295 x 940mm
Weight
330kg340kg
