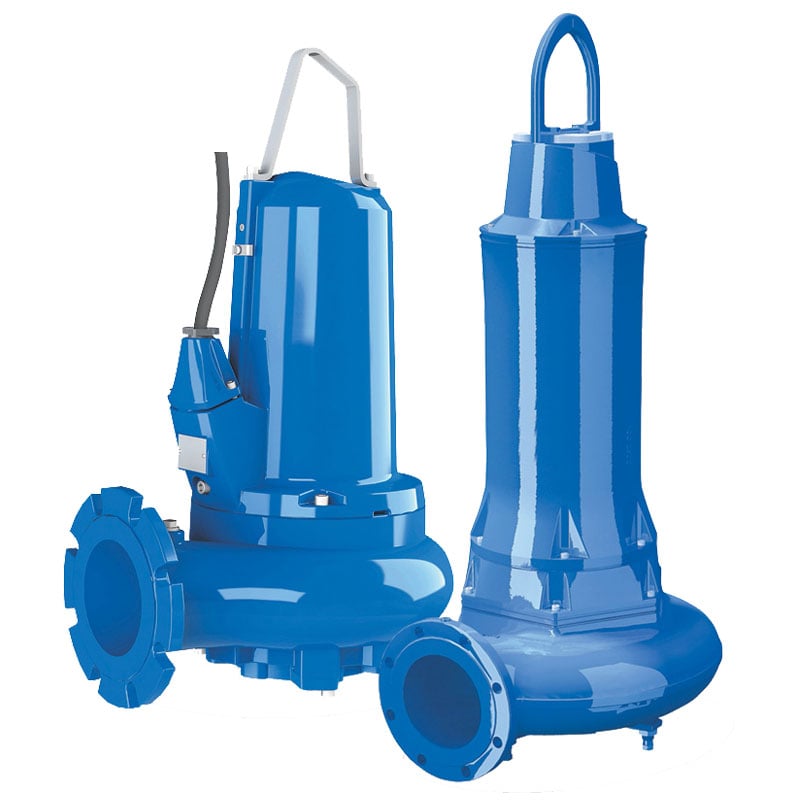

AFPK1048 / XFP101G Electric Submersible Wastewater pumps

Click image to Zoom

These 15kW mid-sized electric submersible wastewater pumps provide clients with a robust solids handling solution capable of operating at heads of up to 64 metres. Delivering a maximum flow of 40 litres per second, both pumps have been designed for use in a broad spectrum of environments including commercial, industrial and municipal. Each pump is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

These 15kW mid-sized electric submersible wastewater pumps provide clients with a robust solids handling solution capable of operating at heads of up to 64 metres. Delivering a maximum flow of 40 litres per second, both pumps have been designed for use in a broad spectrum of environments including commercial, industrial and municipal. Each pump is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

Click image to Zoom

Key Features

  • Contrabloc Impeller providesblockage-free operation
  • Double mechanical sealsfor maximum abrasive resistance
  • Simple design allows minimalservice and maintenance
  • No vibration allows smoothrunning and constant flows
  • Easily portableso can be positioned quickly
  • Motor protection reduces the risk of damage
  • Compactso fits small spaces
  • Simple installationfor instantaneous set-up

Environments

  • Building and construction
  • Emergency sewage pumping
  • Bypass and over-pumping
  • Wastewater treatment sites
  • Flood restoration
  • Manufacturing and industry
  • Industrial processes
  • Commercial premises
  • Agriculture
  • Utility industries

Accessories

  • VARIABLE PANEL 1KW TO 15KW
  • 3" 20FT W/A SUCTION HOSE BAUER
  • 3" 20FT POLYTUBE
  • 3" X 6M HELIFLEX PVC BAUER HOSE
  • 3" 90* BEND
  • 3" GATEVALVE
  • 3" NON-RETURN VALVE

Specifications

Model
AFPK1048XFP101G
Motor type
415V (3-Phase) 50Hz415V (3-Phase) 50Hz
Motor rating
15kW15kW
Running current
27.1A28A
Running speed
2900 rpm2900 rpm
Discharge port
100mm100mm
Suction inlet port
100mm100mm
Maximum solids
50mm50mm
Ex Rated
YesYes
Cooling jacket
YesYes
Dimensions (H x W)
Guided rail option
1080 x 445mm1212 x 496mm
Weight
265kg285kg
Transportable option
1250 x 800mm1380 x 800mm
Weight
285kg310kg
