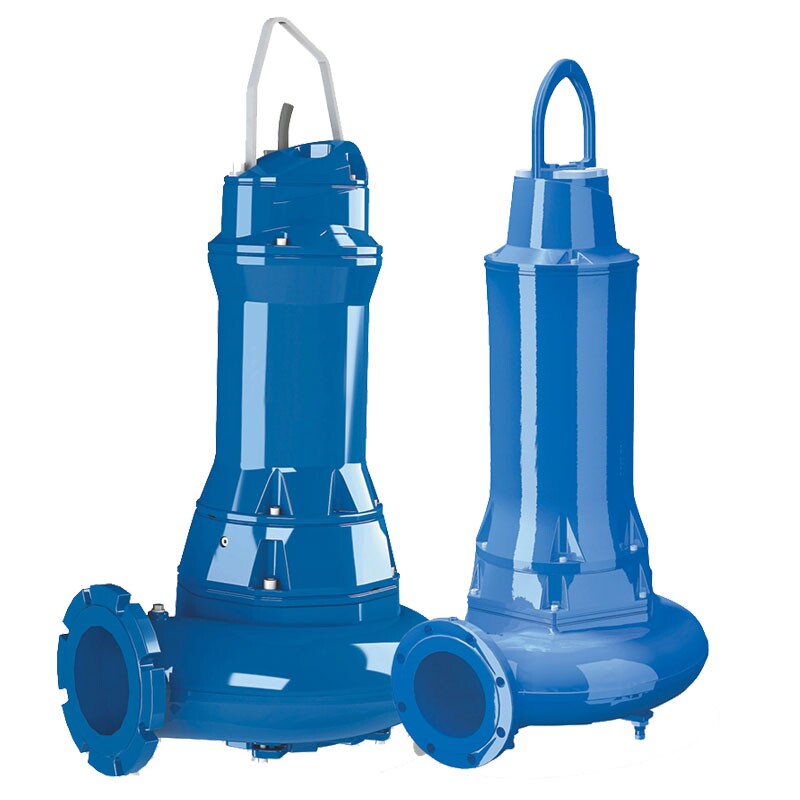

AFPK1552/XFP150M 55kW Electric Submersible Wastewater Pumps

Click image to Zoom

These large and durable electric 6” submersible wastewater pumps offer a smooth-running pumping solution designed for applications within the municipal, utility and industrial sectors. Powered by a 55kW high efficiency motor, these pumps can deliver maximum flows of up to 138 litres per second, heads of up to 60 metres and can be adapted to any guide rail arrangement you have in place. An automatic control feature guarantees that the pumps run only when required, conserving energy throughout a project.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

These large and durable electric 6” submersible wastewater pumps offer a smooth-running pumping solution designed for applications within the municipal, utility and industrial sectors. Powered by a 55kW high efficiency motor, these pumps can deliver maximum flows of up to 138 litres per second, heads of up to 60 metres and can be adapted to any guide rail arrangement you have in place. An automatic control feature guarantees that the pumps run only when required, conserving energy throughout a project.

Click image to Zoom

Key Features

  • Contrabloc Impeller providesblockage-free operation
  • Double mechanical sealsfor maximum abrasive resistance
  • Premium Efficiency IE3 motorfor reduce energy consumption
  • Simple design allows minimalservice and maintenance
  • Easily portableso can be positioned quickly
  • Motor protection reducesthe risk of damage
  • Flexible configuration suitablefor both wet & dry installations
  • No vibration allows smoothrunning and constant flows

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Manufacturing and industry
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries

Accessories

  • VARIABLE PANEL 18KW TO 56KW
  • 6" 10FT W/A SUCTION HOSE BAUER
  • 6" W/A SUCTION HOSE X 6MTS
  • 6" 20FT POLYTUBE
  • 6" X 6M HELIFLEX HOSE BAUER
  • 6" 10FT STEEL PIPE
  • 6" 20FT STEEL PIPE
  • 6" 45* BAUER BEND
  • 6" 90* BEND
  • 6" GATEVALVE
  • 6" NON-RETURN VALVE
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
AFPK1552XFP150M CB2.
Motor type
415V415V
Motor rating
55kW55kW
Max power input
58.1kW58.1kW
Running current
94.4A94.1A
Discharge spigot
6"6"
Maximum solids
77 x 52mm77 x 52mm
EX Rated
YesYes
Cooling jacket
YesYes
Dimensions (H x W)
Guide rail option Height
1450mm1740mm
Maximum Width
875885mm
Minimum Width
705mm710mm
Free standing Height
1650mm1940mm
Maximum Width
1260mm1265mm
Minimum Width
850mm850mm
Weight
995kg1020kg
