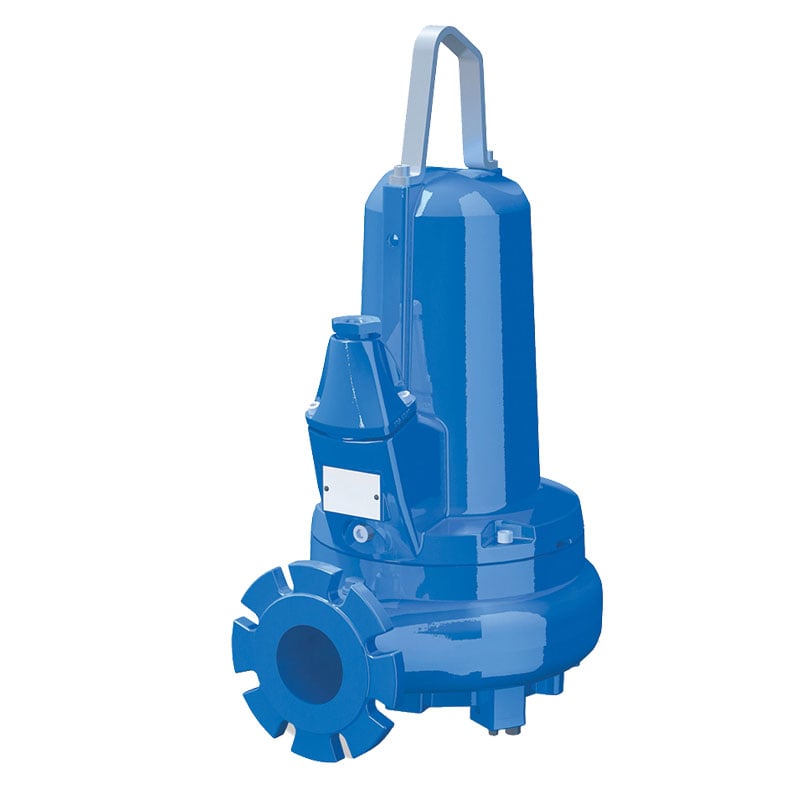

AFPK1042 electric submersible wastewater pumps

Click image to Zoom

The robust AFPK1042 electric submersible pump is designed for providing reliable performance within small pumping stations and utility networks, as well as most other wastewater applications. These small wastewater submersibles come in 6kW and 4kW versions and deliver heads of up to 19 metres and maximum flows of 60 litres per second. Our AFPK1042 models are ideal suited to dealing with sustained flows but also feature a cooling jacket to stop the motor overheating when the pump is not fully submerged.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Get A Quote

The robust AFPK1042 electric submersible pump is designed for providing reliable performance within small pumping stations and utility networks, as well as most other wastewater applications. These small wastewater submersibles come in 6kW and 4kW versions and deliver heads of up to 19 metres and maximum flows of 60 litres per second. Our AFPK1042 models are ideal suited to dealing with sustained flows but also feature a cooling jacket to stop the motor overheating when the pump is not fully submerged.

Click image to Zoom

Key Features

  • Contrabloc Impeller providesblockage-free operation
  • Double mechanical sealsfor maximum abrasive resistance
  • Premium Efficiency IE3 motorfor reduce energy consumption
  • Simple design allowsminimal service and maintenance
  • Easily portableso can be positioned quickly
  • Motor protectionreduces the risk of damage
  • Compactso fits small spaces
  • No vibration allows smoothrunning and constant flows

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • General maintenance
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries

Accessories

  • VARIABLE D.O.L. PANEL 1KW TO 15KW
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER HOSE
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE

Specifications

Model
AFPK1042AFPK1042
Motor type
415V (3-Phase) 50Hz415V (3-Phase) 50Hz
Motor rating
4kW6kW
Running current
8.8A12.5A
Running speed
1450 rpm1450 rpm
Discharge port
100mm100mm
Suction inlet port
100mm100mm
Maximum solids
100mm100mm
Ex Rated
YesYes
Cooling jacket
YesYes
Dimensions (H x W)
Guided rail option
735 x 455mm735 x 455mm
Weight
121kg125kg
Transportable option
870 x 750mm870 x 750mm
Weight
141kg144kg
