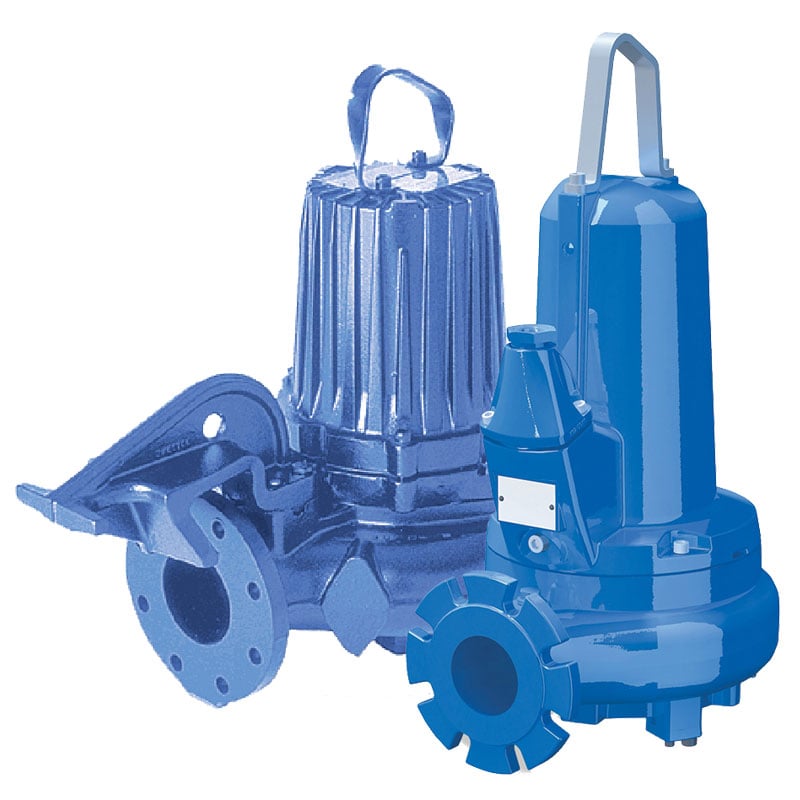

AFPK0832 and CS3102 Electric Submersible Wastewater pumps

These durable electric submersible wastewater pumps offer a smooth-running pumping solution designed for a range of applications within the water, utility and industrial sectors. Capable of delivering maximum flows of up to 40 litres per second and a head of up to 27 metres, these small-sized electric submersible pumps are known for their reliability and can be adapted to any guide rail arrangement you have in place. The AFPK0832 models are well-suited to medium head projects while the CS3102 units are best for scenarios where higher flows are required.

Key Features

Feature

Contrabloc Impeller provides

blockage-free operation

Double mechanical seals

for maximum abrasive resistance

Simple design allows

ce and maintenance

No vibration allows smooth

running and constant flows

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Compact so fits small spaces

Simple installation

for instantaneous set-up

Product Specification

Additional information

Model	AFPK0832 / CS3102
Motor type	415V (3-Phase) 50Hz
Motor rating	7kW / 3kW
Running current	13.6A / 6.7A
Running speed	2900 rpm / 1450 rpm
Discharge port	80mm / 100mm
Suction inlet port	80mm / 100mm
Maximum solids	80mm / 76mm
EX Rated	Yes / No
Cooling jacket	Yes / No
Guide rail option	700 x425 / 600 x 465
Transportale option	870 x650 / 720 x 620
Weight	139kg / 131kg

Downloads

Accessories

VARIABLE D.O.L.PANEL 1KW TO 15KW
3”/4″ X 3M W/A BAUER HOSE
3”/4″ 20FT W/A SUCTION HOSE BAUER
3”/4″ 20FT POLYTUBE
3”/4″ X 6M HELIFLEX PVC BAUER
3”/4″ LAYFLAT HOSE PER METRE
3”/4″ BLUE LAYFLAT X 25M CW BAUERS
3”/4″ X 6MTR STEEL BAUER PIPE
3”/4″ 45* BAUER BEND
3”4″ 90* BEND
3”/4″ GATEVALVE
3”/4″ NON RETURN VALVE

Environments

Building and construction
Emergency sewage pumping
Bypass and over-pumping
Wastewater treatment sites
Flood restoration
Manufacturing and industry
Industrial processes
Property maintenance
Agriculture
Utility industries
