Features & Environments

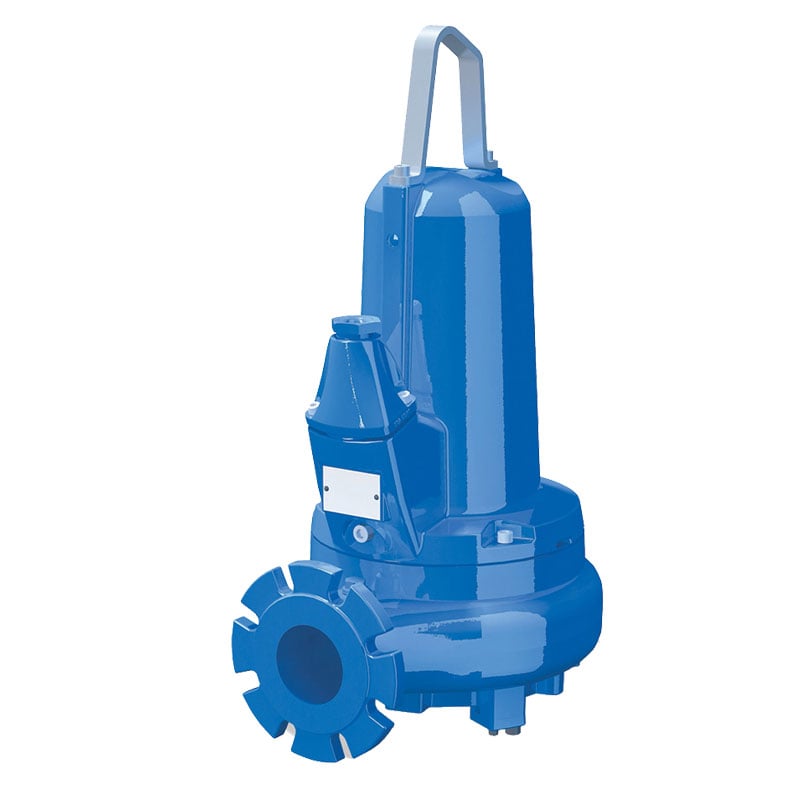

Sykes AFPK0842 4kW electric submersible wastewater pump delivers a maximum flow of up to 25 litres per second and a head up to 21m. Constructed from cast iron this pump is extremely robust at a weight of 110Kg.
Used by water companies in their wastewater collection networks, pays testament to the high performance and reliability of this pump. This product is ideal for dealing with wastewater in site office establishments, commercial premises and office blocks or in pumping stations if an existing pump has to be removed for repair. Also suitable for use in industrial processes where fibrous material or solids are present.
A range of adaptors allows this pump to be adapted to replace pumps of other manufacturers either down guide rails of free standing.
Fitted with 20m of cable this pump can be provided for connection in crimp terminals or fitted with lugs for stud termination. For non “Ex” applications we can also fit a 32A 4 pin 415V appliance inlet making the pump ready for plug and pump.
When used with a Sykes control panel the pump can benefit from automatic level control and additional overload and motor over-temperature protection. Automatic control ensures the pumps only run when required reducing energy usage, while motors are available in the ATEX Explosion proof versions for Zone 2 applications.
Our Electric Wastewater pumps require minimal maintenance providing trouble free pumping for months on end, meaning that for most applications the pumps do not need to be disturbed for the duration of the scheme.
- Weight (kg)
- Dimensions (mm)
- Guide rail configuration (HxW)mm: 655 x 455 Free Standing configuration (HxW)mm: 795 x 675
- Motor Type (V)
- 415v 50Hz
- Discharge Spigots
- 3” Bauer
- Motor Rating (kW)
- Cable termination
- Tails, lugs or 32A 4 pin 415V appliance inlet (plug) for non-Ex
- Max Power Input (kW)
- Cable length
- Running Current (Amps)
- 7.9 Amps
- VARIABLE PANEL 1KW TO 15KW
- 3" 20FT W/A SUCTION HOSE BAUER
- 3" 20FT POLYTUBE
- 3" X 6M HELIFLEX PVC BAUER HOSE
- 3" 90* BEND
- 3" GATEVALVE
- 3" NON RETURN VALVE
- ROAD RAMP C/W 6" PN16 FLANGES
- ROAD RAMP WIDE C/W 6" PN16 FLANGES
