PX22 Series electric submersible drainer pump

Sykes’ PX22 Series submersible drainer pumps are designed for use on general dewatering applications. Ideal for moving nuisance water, they are commonly deployed in a broad range of environments e.g. construction, utilities, mines and quarries, shipyards, docks and industrial sites to ensure projects run to schedule. These 6”/8” pumps are available in either Medium or High Head versions with flow rates up to 160 L/sec and a maximum Head of 96 metres. Our PX22 units are very robust and are compatible for use with a 415V power supply. Low maintenance features enable trouble free uninterrupted use over long periods.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

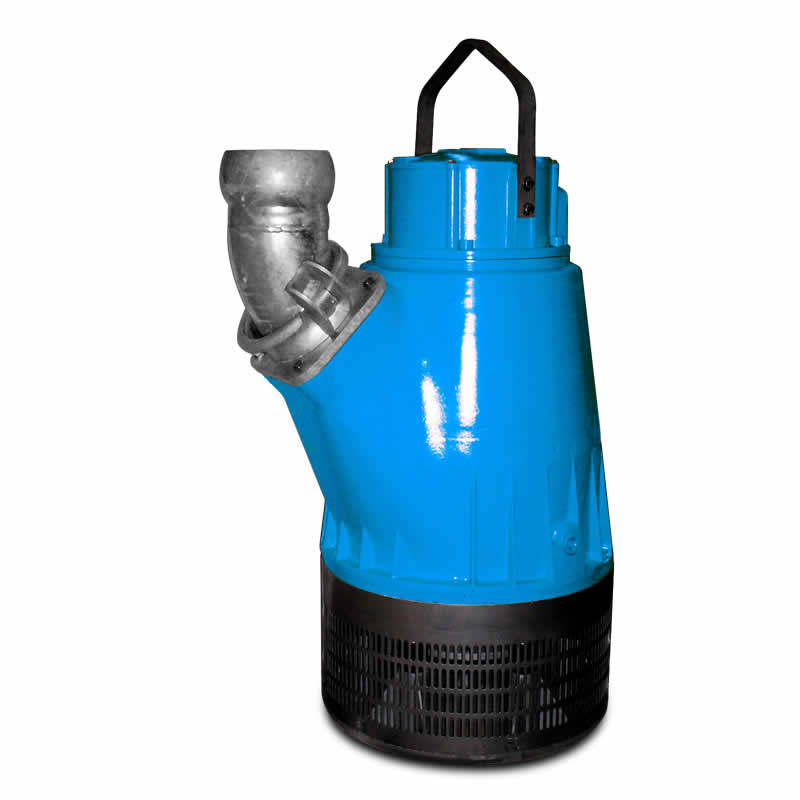

px20 drainer pump angle Click image to Zoom

Features

  • Stainless steel components for high abrasive resistance
  • Highly reliable and suitable for long-term use
  • Options with high flow and high head versions available
  • No vibration allows smooth running and constant flows
  • Easily portable so can be positioned quickly
  • Built in motor protection reduces the risk of damage
  • Simple installation provides fast and easy operation
  • Robust so ideal for sites

Environments

  • Construction
  • Emergency site drainage
  • Docks & Shipyards
  • Clean and dirty water pumping
  • Tunneling
  • Industrial
  • General dewatering
  • Mines & Quarries
  • Utilities
  • Power Generation

Accessories

  • PX22 35KW ASD STARTER PANEL
  • VARIABLE PANEL 18KW TO 56KW
  • 6" 10FT W/A SUCTION HOSE BAUER
  • 6" W/A SUCTION HOSE X 6MTS
  • 6" 20FT POLYTUBE
  • 6" X 6M HELIFLEX HOSE BAUER
  • 6" LAYFLAT HOSE PER METRE
  • 6" BLUE LAYFLAT X 25M CW BAUERS
  • 6" 10FT STEEL PIPE
  • 6" 20FT STEEL PIPE
  • 6" 45* BAUER BEND
  • 6" 90* BEND
  • 6" GATEVALVE
  • 6" NON RETURN VALVE
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
PX 22 N Medium HeadPX22 H High Head
Motor type
415V (3-Phase) 50Hz415V (3-Phase) 50Hz
Motor rating
35kW35kW
Max power input
39.5kW39.5kW
Running current
64A64A
Discharge Spigot
6", 8" Bauer6", 8" Bauer
Dimensions (H x W)
1150 x 705mm1070 x 705mm
Weight (excl cable)
270kg270kg
