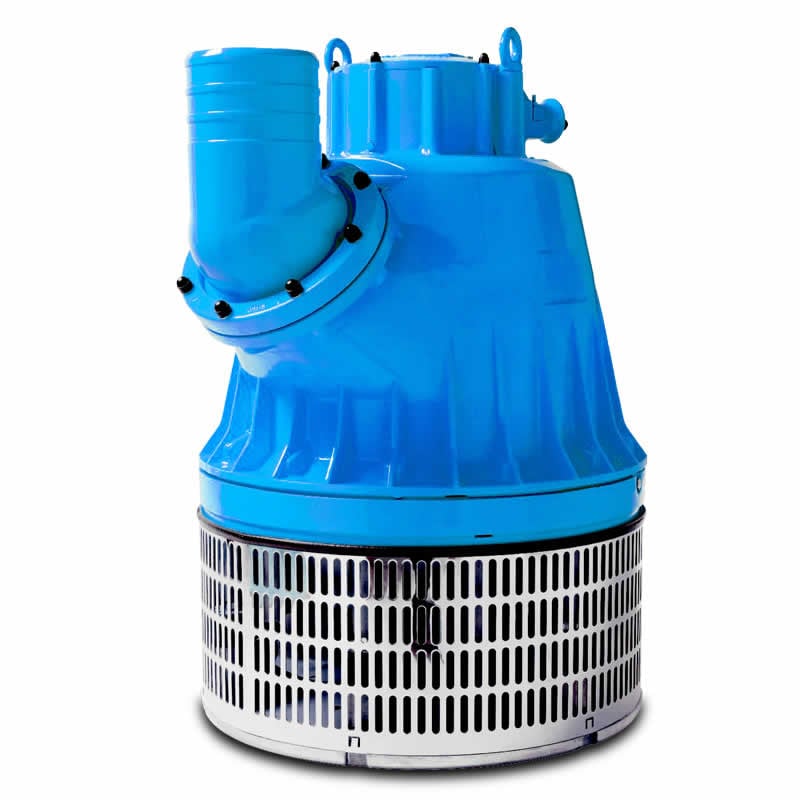

Sykes PX30H electric submersible drainage pump delivers a maximum flows up to 140 litres per second at a head up to 70m. Constructed from cast aluminium and stainless steel with a white cast iron impeller the pump is robust having a weight of 525Kg.

These pumps are ideal for dewatering at all kinds of quarries and construction sites from Quarry base dewatering and washing equipment, civil infrastructure projects through to power stations, and utility industries. Considering the huge pumping capacity of these pumps, the relatively compact size is remarkable and makes transporting the pumps around a site an easy task.

The pump is fitted with twin 20m runs of suitable power cable plus a signal cable which can be prepared for termination in to compression terminals or with lugs for stud termination.

Our drainage pumps require minimal maintenance providing trouble free pumping for months on end, meaning that for most applications the pumps do not need to be disturbed for the duration of the scheme.

When used with a Sykes control panel the pumps can benefit from automatic level control and additional overload protection. Automatic control ensures the pumps only run when required reducing energy usage.

Features
  • Cast aluminium and Stainless steel body
  • Cast Iron impeller
  • High wear resistance
  • Highly reliable
  • No vibration - smooth running
  • Optional float control
  • Built in motor protection
  • 6” Discharge
  • Standardized design for minimal service and maintenance
  • Light -weight materials for easier portability
  • Simple installation
  • Small size for access in to confined areas
  • 415V, 70kW motor
  • Low noise and no fumes
  • Max Head 70 metres
  • Max Flow 140 litres/sec.
Environments
  • Building and Construction
  • Emergency pumping
  • Docks, Ports and Harbours
  • Tunnelling
  • Large flow ingress water pumping
  • Flood restoration
  • Quarries
  • Manufacturing and Industry
  • Industrial processes
  • Food, fruit and Vegetable preparation processes
  • Power Stations
  • Agriculture
  • Utility industries
Weight
525Kg
Dimensions
(HxW)mm: 1161 x 945
Motor Type
415 V (3-Phase) 60Hz
Discharge Spigots
6” Bauer
Motor Rating (Kw)
70kW
Cable termination
Prepared for compression terminals or fitted with lugs for stud terminals
Max power input (Kw)
76.4kW
Cable length
20m
Running Current
113 Amps
Voltage
415 Volts
