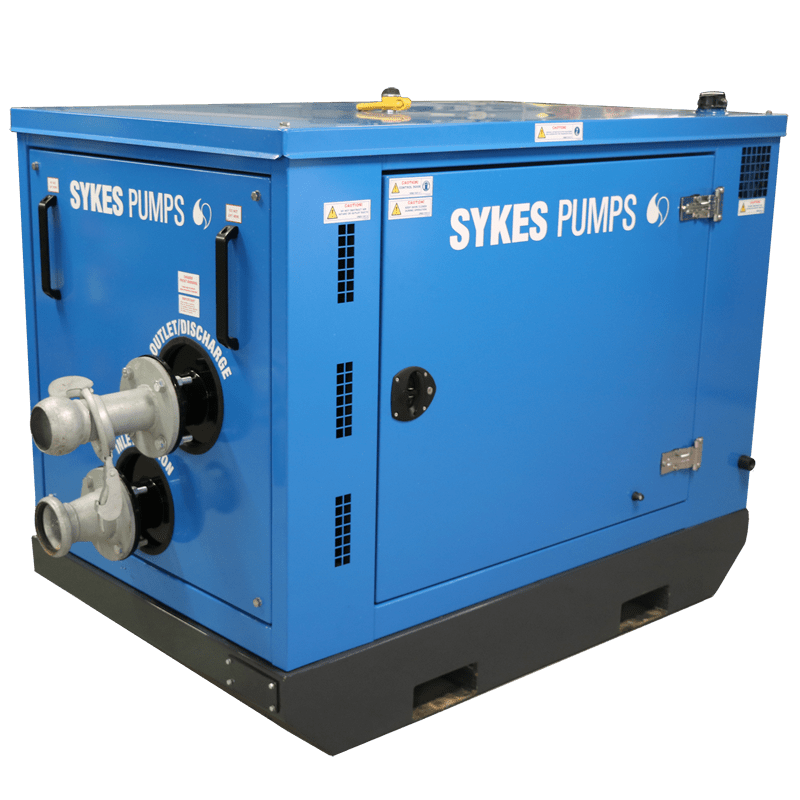

The Sykes Super Wispaset 80 eco is a 3” super silenced pump designed for unobtrusive use in a range of applications including construction, utilities, civil engineering, marine and quarries. Powered by a modern Hatz diesel engine, the unit is housed in an acoustic canopy to limit noise pollution and enable use in areas where quiet functionality is essential. A fully bunded 35-litre fuel tank enables the pump to function continuously for up to 24 hours – underlining the product’s economic fuel consumption. Capable of delivering heads of up to 24 metres and flows of up to 36 litres per second, this particular model combines impressive performance capabilities with low running costs and a small footprint. The Super Wispaset 80 eco unit features the revered Sykes Univac priming system, enabling the pump to prime and re-prime fully automatically from dry.
Key Features
- Low noise operation
- Fuel efficient operation
- Small footprint
- Easily changeableshaft seals
- Compact and manoeuvrable
- Solids handlingup to 40 mm
- Automatic priming and re-priming
- Hard-wearing cast iron parts
Environments
- Construction
- Emergency Pumping Services
- Docks, Ports and Harbours
- Refineries
- Water and Waste Treatment
- Local Authorities
- Film Production and Events
- Offshore and Float Outs
- Quarries and Mines
- Building and Construction
- Manufacture and Industry
- Power Stations
- Tunnelling
Accessories
- 3" SPLIT INTAKE
- 3" 20FT W/A SUCTION HOSE BAUER
- 3" 20FT POLYTUBE
- 3" X 6M HELIFLEX PVC BAUER HOSE
- 3" LAYFLAT HOSE PER METRE
- 3" BLUE LAYFLAT X 25M CW BAUERS
- 3" 90* BEND
- 3" GATEVALVE
- 3" NON RETURN VALVE
- ROADRAMP
Specifications
- Performance
- Max head:- 24m
Max flow:- 36 l/s
Max solid:- 40 mm - Weight
- 890 kg with fuel
856 kg without fuel - Dimensions (L x W x H)
- 1800 x 1100 x 1400 mm
- Noise level
- @ 1m = 72 dBA
@ 7m = 64 dBA - Fuel capacity
- 35 litres. Max 24 hours
- Pipe connections
- Suction:- 4" Table D
Discharge:- 4" Table D
Bauer couplings option:- 3" - Fuel Consumption
- Full load @ 1800 rpm:- 1.99 litres/hour
- Energy Efficient duty point
- Fuel Consumption @ 1500 rpm:- 1.4 litres/hour
