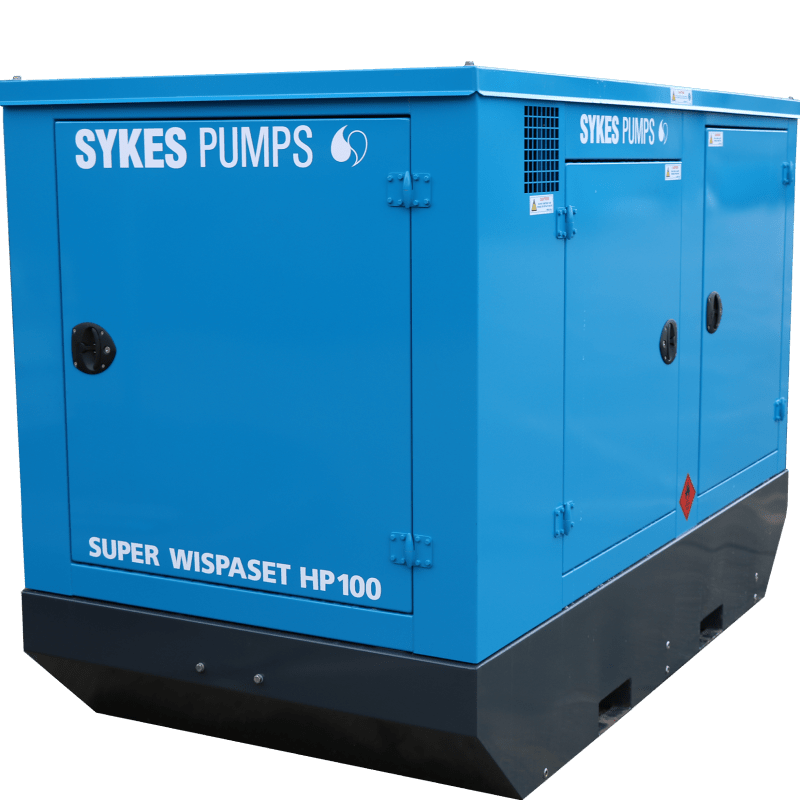

The HP100 Super Silenced is a low-noise high performance pump designed for a range of environments where quiet operation is essential. Typically deployed in jetting, dust suppression and temporary fire pump applications, the HP100 Super Silenced combines excellent fuel efficiency with an ability to operate unattended for extensive periods. Ideal for scenarios where standard pump pressures are inadequate, this unit can deliver heads up to 98 metres and maximum flows of 44 litres per second. This 4” jetting pump has a built-in fuel tank with a 155-litre capacity, allowing it to run for 24 hours before requiring refuelling. Incorporating the Sykes Univac priming system, this pump utilises a 25 cfm rotary vacuum pump allowing automatic priming and re-priming from dry.
Key Features
- Low noise operationfor discreet use
- Hard-wearing partsfor robust applications
- Automatic priming and re-primingfor maximum efficiency
- Compact and manoeuvrablefor simple redeployment
- Hours of unattended operationfor continuous use
- Electric startfor swift functionality
- Economical operationfor greater fuel efficiency
- Standard skid base chassisfor easy placement
Environments
- Environmental
- Emergency pumping services
- Docks, ports and harbours
- Refineries
- Local authorities
- Film production and events
- Offshore and float outs
- Quarries and mines
- Building and construction
- Manufacture and industry
- Power generation
- Tunnelling
- Agriculture
- Washing plants
Accessories
- 2.5 INCH X 60FT JETTING HOSE
- JETTING STRAINER
- 4" X 3M W/A BAUER HOSE
- 4" 20FT W/A SUCTION HOSE BAUER
- 4" 20FT POLYTUBE
- 4" X 6MTR STEEL BAUER PIPE
- BUNDED FUEL TANK 1000 LITRE
- BUNDED FUEL TANK 2000 LITRE
- BUNDED FUEL TANK 3000 LITRE
Specifications
- Performance
- Max Head:- 98m, Max Flow:- 44 l/sec
- Weight
- 1,621 kg with fuel / 1,504 kg without fuel
- Dimensions (LxWxH) mm
- 2,375 x 1,450 x 1,600
- Noise level
- @7m= 65 dBA
- Fuel Tank Capacity
- 155 litres
- Pipe Connections
- Suction:- 4” table D 0r 4” Bauer / Discharge:- Flanged 4” NP16
- Fuel Consumption
- Full Load @ 2,800 rpm:- 9 litres/hour
- Energy efficient duty point
- Fuel consumption @ 2,500 rpm:- 6.2 litres/hour
