SUPER WISPASET 200 super silenced pump

The Super Wispaset 200 is an 8” super silenced pump that has been specifically designed for scenarios where noise reduction is a primary consideration. The pump can deliver flows of up to 161 litres per second and operate at heads of up to 43 metres. Capable of running unattended for extensive periods of time, the Super Wispaset 200 is ideal for pumping slurry, sludge and clean or dirty water. Each unit is self-contained and double bunded for maximum protection, with optional telemetry available should remote monitoring be required.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

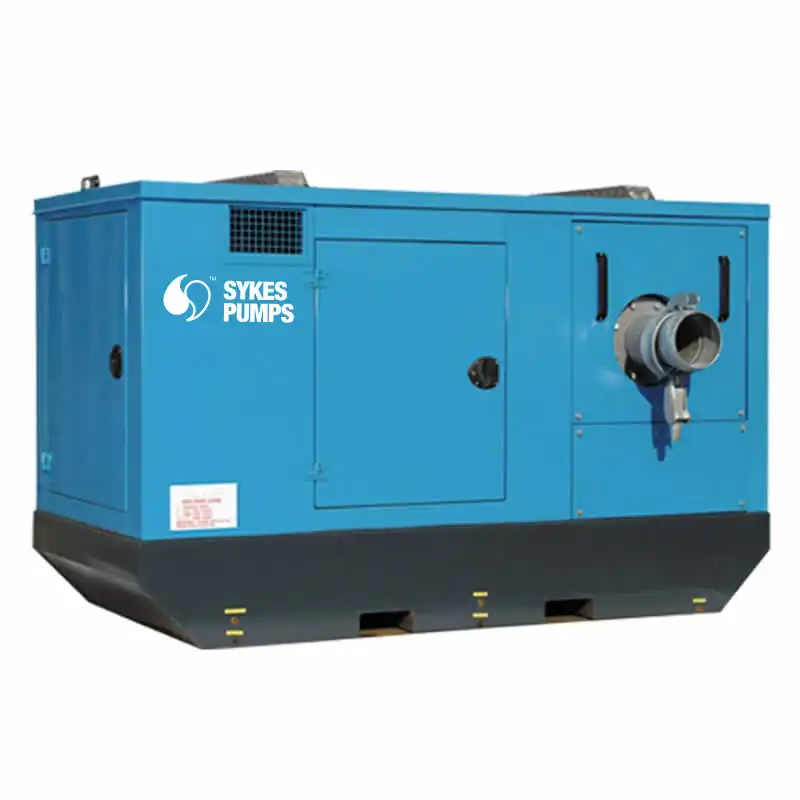

SUPER WISPASET 200 Super Silenced Pump Angle View Click image to Zoom

Features

  • Reduced noise levels
  • Fuel efficient operation
  • Capable of unattended operation
  • Easily changeable shaft seals
  • Compact and manoeuvrable
  • Solids handling up to 75 mm
  • Automatic priming and re-priming
  • Hard-wearing cast iron parts

Environments

  • Clean and dirty water transfer
  • Emergency sewer repairs
  • Sludge
  • Utilities
  • Light slurry
  • Quarries
  • Over pumping
  • Civil engineering
  • Site dewatering
  • Wastewater treatment

Accessories

  • 8" INTAKE
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE
  • RETAIL GAS OIL

Specifications

Performance
Max head:- 43 m
Max flow:- 161 l/s
Max solid:- 75 mm
Weight
2390 kg with fuel
2200 kg without fuel
Dimensions (L x W x H)
2610 x 1250 x 1535 mm
Noise level
@ 7m = 65 dBA
Fuel capacity
207 litres. Max 24 hours
Pipe connections
Suction:- 8" Table D
Discharge:- 8" Table D
Bauer couplings option
Fuel Consumption
Full load @ 1800 rpm:- 17 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- 7.3 litres/hour
