Super Wispaset 300 super silenced pump

The Super Wispaset 300 is a 12” silenced pump that is ideally suited to high flow lower head applications. This model can handle flows of up to 415 litres per second and combines this impressive pumping performance with excellent solids handling capabilities. The Super Wispaset 300 is a highly efficient unit and features a smaller engine, making it extremely cost-efficient. This pump is perfect for water authorities and utilities companies while hours of unattended operation enable continuous functionality without engineers on site.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

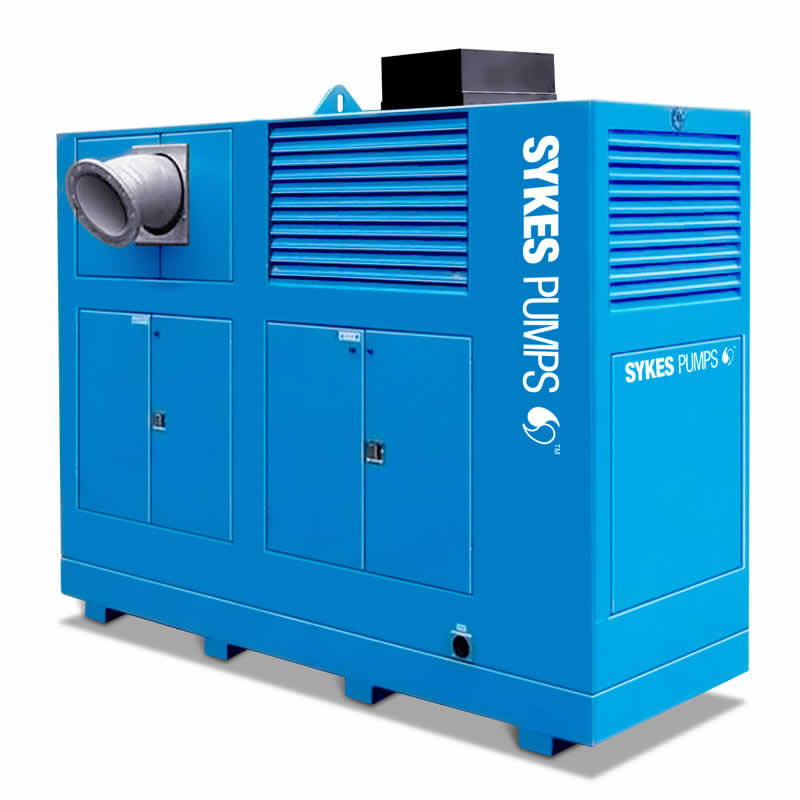

SUPER WISPASET 300 Super Silenced Pump Angle View Click image to Zoom

Features

  • Reduced noise levels
  • Fuel efficient operation
  • Capable of unattended operation
  • Easily changeable shaft seals
  • Low running costs
  • Solids handling up to 70 mm
  • Automatic priming and re-priming
  • Hard-wearing cast iron parts

Environments

  • Clean and dirty water transfer
  • Emergency sewer repairs
  • Sludge
  • Utilities
  • Light slurry
  • Quarries
  • Over pumping
  • Civil engineering
  • Site dewatering
  • Wastewater

Accessories

  • 12" W/A SUCTION HOSE X 6MTS
  • 12" 10FT STEEL PIPE
  • 12" FLANGED HIGH PRESSURE HOSE X 6MTS
  • 12" 45* BAUER BEND
  • 12" 90* BAUER BEND
  • 12" FLANGED 45* BEND
  • 12" FLANGED 90* BEND
  • 12" GATEVALVE
  • 12" NON RETURN VALVE
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE
  • RETAIL GAS OIL

Specifications

Performance
Max head:- 18 m
Max flow:- 415 l/s
Max solid:- 70 mm
Weight
3913 kg with fuel
3500 kg without fuel
Dimensions (L x W x H)
3300 x 1180 x 2700 mm
Noise level
@ 10m = 66 dBA
Fuel capacity
480 litres. Max 24 hours
Pipe connections
Suction flange:- 12" DN 300 PN 10 Discharge flange:- 12" DN 300 PN 10 Optional Bauer Couplings
Fuel Consumption
Full load @ 1800 rpm:- 14.9 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- 13.6 litres/hour
