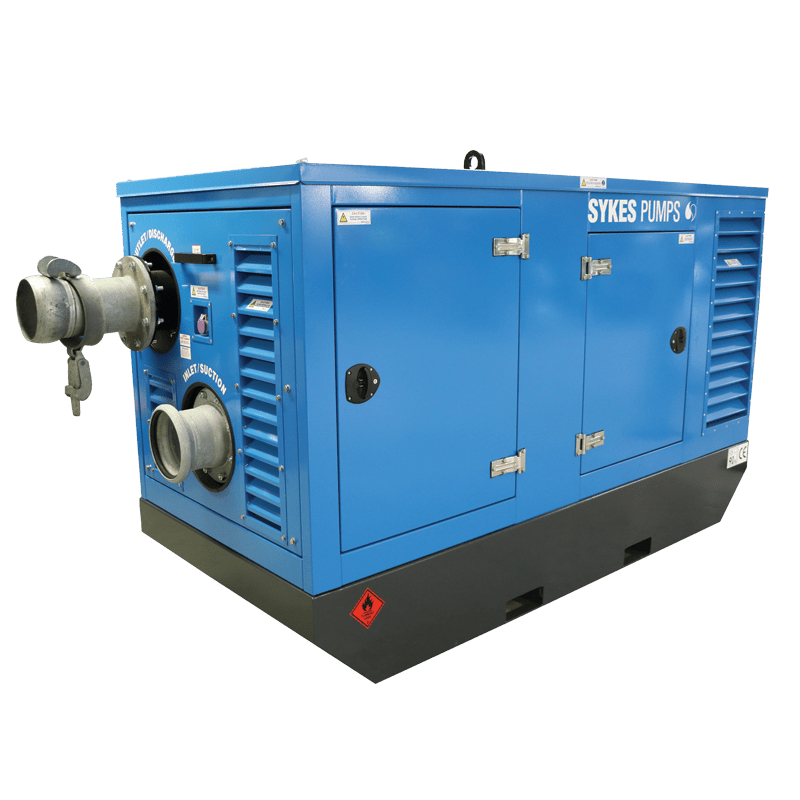

Super Wispaset 200 Ecotec super silenced pump

Sykes’ Super Wispaset 200 Ecotec is a super silenced pump designed for use on all general purpose applications. Featuring a British-manufactured JCB Ecomax engine to optimise performance, the Ecotec model offers maximum heads of 43 metres and a maximum flow rate of 161 litres per second. A built-in telemetry system provides detailed performance monitoring and location tracking to users based off site, as well as a remote start/stop option allowing full control at all times. This pump’s impressive fuel economy means it uses up to 10% less than comparable models while low fuel emissions ensure the Super Wispaset 200 Ecotec exceeds the requirements of the latest European legislation.

0800 211 611 Get A Quote

Click image to Zoom

Features

British JCB Ecomax engine for optimum performance
Telemetry system for external performance monitoring and location tracking
Remote start/stop for full control on or off site
Economical fuel consumption using 10% less fuel than comparable models
Low noise levels for use in built-up areas
Low emissions and compliant with latest European legislation
Central lifting eye for safe and easy crane manoeuvrability
Fork pockets to ease loading and offloading
Sykes auto self-priming enabling automatic priming from dry for ease of use
24-hour internal fuel tanks separate larger fuel tanks available
Pre-installed float control allowing automatic and unattended operation
Solids handling ensuring suitability to a wide range of applications

Environments

Clean and dirty water
Emergency sewer repairs
Sludge
Utilities
Slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Waste water

Accessories

8" INTAKE
8" 3M W/A BAUER HOSE
8" X 6M POLYTUBE BAUER DELIVERY
8" 20FT STEEL PIPE
8" 45* BAUER BEND
8" 90* BEND
8" GATEVALVE
8" NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD CROSSING C/W 8" PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Specifications

Performance: Max head:- 43 m
Max flow:- 161 l/s
Max solid:- 75 mm
Weight: 2426 kg with fuel
2314 kg without fuel
Dimensions (L x W x H): 2720 x 1250 x 1790 mm
Noise level: @ 7m = 65 dBA
Fuel capacity: 170 litres. Max 24 hours
Pipe connections: Suction:- 8" Table D
Discharge:- 8" Table D
Bauer couplings option
Fuel Consumption: Full load @ 1800 rpm:- 15 litres/hour
Energy Efficient duty point: Fuel Consumption @ 1500 rpm:- 7 litres/hour
