H80 Hydraulic Submersible Pump

The Sykes Hydraset 80 is a hydraulic submersible pump solution comprising of a power pack, a pump end and a set of 20m hydraulic hoses. It has been specifically designed for use in a broad range of applications, including construction, marine, quarries, wastewater sites and other remote locations, where an electricity supply is not available. At just 41kg, the lightweight steel Hydrapump can be manoeuvred easily and is capable of delivering a maximum head of 31m. A silenced diesel engine provides low noise functionality and the hydraulic oil itself is biodegradable – rendering it environmentally friendly.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

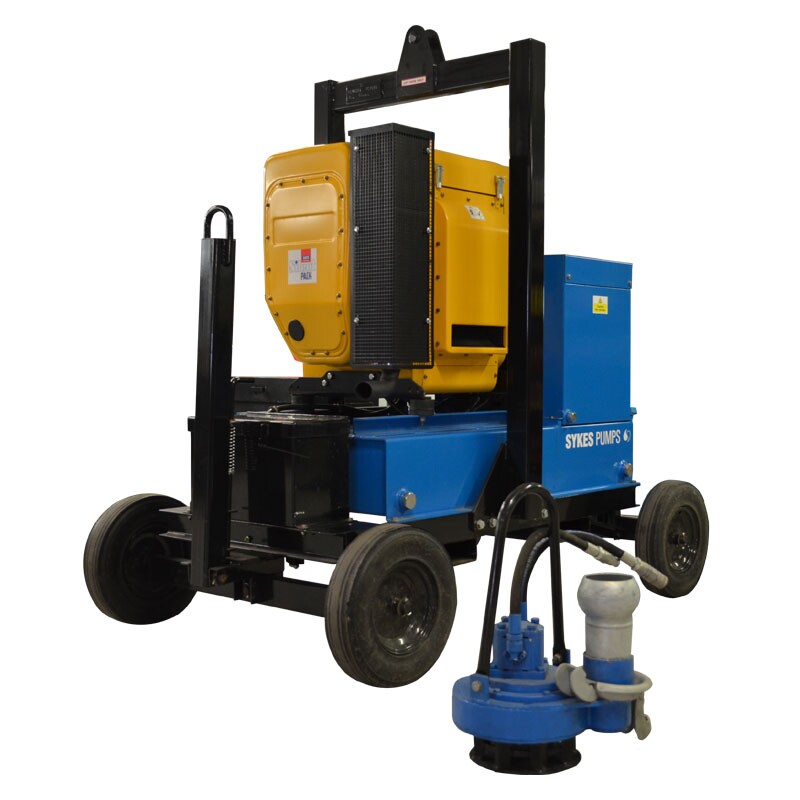

h80 Click image to Zoom

Features

  • No suction lift restrictions for use where depths are too large for standard surface pumps
  • Quick release hydraulic couplings enabling simple, leak-proof operation
  • Small and compact frame enabling easy access into small areas
  • Automatic shutdown enhancing safety and preventing blockages or overloading
  • Silenced diesel engine for quiet, unobtrusive functionality
  • Hydraulic biodegradable oil for safe and environmentally friendly deployment
  • Lightweight pump ends for manoeuvrability
  • Fuel efficient performance for low running costs

Environments

  • Wastewater
  • Industrial
  • Ground water control
  • Construction
  • Marine
  • Quarrying
  • Petrochemical
  • Emergency
  • Spillages
  • Docks and harbours

Accessories

  • HYDRAHOSE 2 LINE SET x 20M
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • RETAIL GAS OIL
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE

Specifications

Performance
Max head:- 31 m
Max flow:- 31 l/s
Max solid:- 22mm
Discharge
3" Bauer
Weight
Pump End 41kg
Powerpack 850kg
Dimensions
Pump end 360 x 300 x 550
Powerpack 1820 x 1090x 1830
Hydraulic lines
20 metres
Fuel tank capacity
145 litres
Fuel consumption
5 litres/hour
Noise Level
@ 7m = 75 dBA
