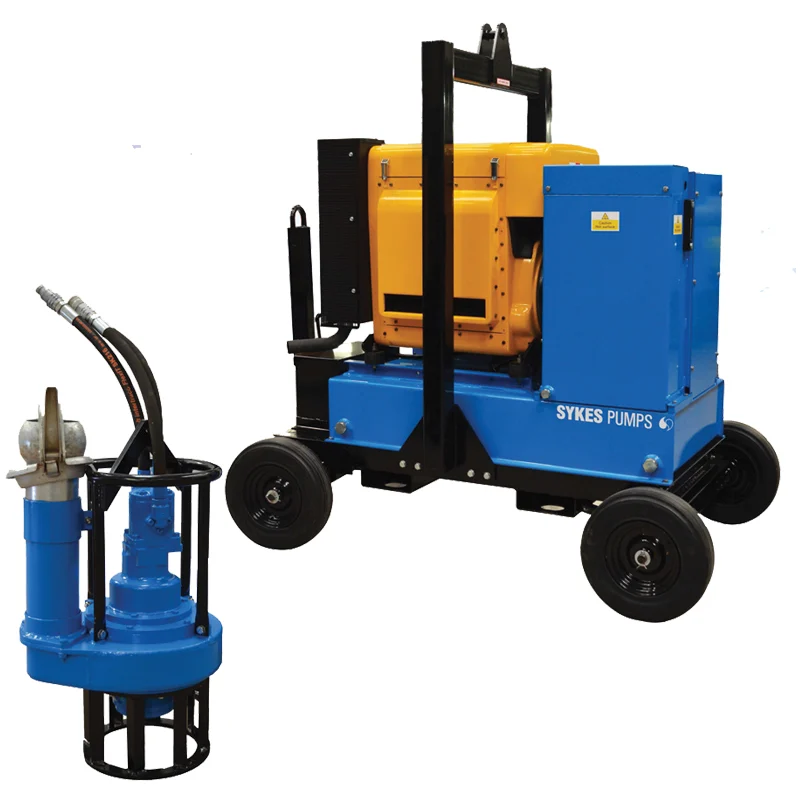

H100S Hydraulic Submersible Pump
The Sykes Hydraset range is made up of three vital components - the Hydrapak, Hydrapump and Hydrahose. This equipment represents an ideal alternative to diesel driven pumps and is perfect for environments with no accessible power supply. Its centrifugal pump is driven by an internal hydraulic motor and powered by a semi-silenced engine - making quiet operation possible.
- Full Details
- Features / Environments
- Specifications
- Accessories
The Sykes Hydraset’s average fuel consumption is just 9 litres per hour, ensuring low running costs even on a full load.
A four-wheel site trailer gives this pump model excellent manoeuvrability despite its size and weight. It can be transported by a forklift or even craned into place, facilitating deployment in a number of applications.
These high capacity units have been assembled with longevity in mind, and are often stationed in remote areas where on-site power is unavailable.
Designed for safe use, with no sparks or electricity generated, the Sykes Hydraset can be utilised in hazardous applications without endangering those close by. It can also be used with biodegradable oil.
Features
|
|
Environments
|
|
- Weight (kg)
- Pump end: 55 kg, Powerpack: 995 kg
- Fuel Tank Capacity
- 145 litres
- Dimension
- Pump end: 465 x 350 x 745 mm, Powerpack: 1900 x 1100 x 1720 (L x W x H)
- Fuel Consumption
- 9 litres/hour
- Noise level
- @ 7m = 75 dBA
- Pipe Connections
- 4" Bauer
- Performance
- Max Head 46m, Max Flow 38 l/s, Max Solid 70mm
- Engine(Type / Power / Speed)
- Hatz 26kw diesel engine, nominal speed 2000 rpm
- 4" X 3M W/A BAUER HOSE
- 4" 20FT W/A SUCTION HOSE BAUER
- 4" 20FT POLYTUBE
- 4" X 6M HELIFLEX PVC BAUER
- 4" X 6MTR STEEL BAUER PIPE
- 4" 45* BAUER BEND
- 4" 90* BEND
- 4" GATEVALVE
- 4" NON RETURN VALVE
- ROAD RAMP C/W 6" PN16 FLANGES
- ROAD RAMP WIDE C/W 6" PN16 FLANGES
- ROAD CROSSING C/W 8" PN16 FLANGES
- SETTLEMENT TANK
- SYKES SILT AWAY
