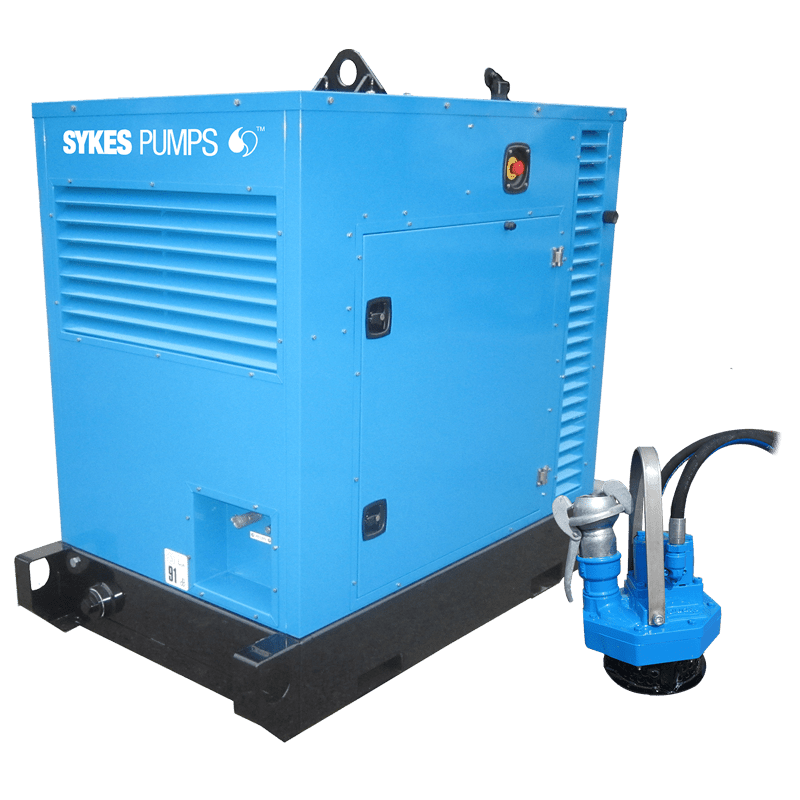

Sykes H50 hydraulic submersible

The Sykes Hydraset 50 is a hydraulic submersible pump solution comprising of a power pack, a pump end and a set of 20m hydraulic hoses. It has been designed for use in construction, quarrying, marine and wastewater applications in addition to other remote locations where electricity is not available on site. The super silenced Hydrapak is powered by a Kioti 3A diesel engine and can be fitted with a Chalwyn valve and spark arrestor to allow use in hazardous environments. Capable of delivering heads of up to 41m, the Hydraset 50 uses biodegradable oil for environmentally friendly functionality.

Key Features

Feature

No suction lift restrictions

for use where depths are too large for standard surface pumps

Quick release hydraulic couplings

enabling simple, leak-proof operation

Small and compact frame

enabling easy access into small areas

Automatic shutdown

enhancing safety and preventing blockages or overloading

Silenced diesel engine

for quiet, unobtrusive functionality

Hydraulic biodegradable oil

for safe and environmentally friendly deployment

Lightweight pump ends

for manoeuvrability

Fuel efficient performance

for low running costs

Product Specification

Additional information

Model	H50 / HH50
Performance	Max head:- 26 m [br] Max flow:- 13.7 l/s [br] Max solid:- 10 mm [br] Max head:- 41 m [br] Max flow:- 7.5 l/s [br] Max solid:- 3 mm
Discharge	2” Bauer
Weight (kg)	Pump End 20kg [br] Powerpack 1100kg
Dimensions (L x H x W)	Pump End 225 x 300 x 195 [br] Powerpack 1830 x 1670 x 1000
Hydraulic lines	20 metres
Fuel Tank Capacity	190 litres
Fuel Consumption	5 litres/hour
Noise sound pressure	@ 7m = 59 dBA
Noisesound power	90 LWA
Noise level	@ 7m = 75 dBA

Downloads

Accessories

HYDRAHOSE 2 LINE SET x 20M
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
RETAIL GAS OIL
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
2″ X 6M W/A SUCTION HOUSE BAUER
2″ BLUE LAYFLAT X 25M C/W BAUERS
2″ X 6M HELIFLEX PVC BAUER
2″ LAYFLAT HOSE PER METRE

Environments

Wastewater
Industrial
Ground water control
Construction
Marine
Quarrying
Petrochemical
Emergency
Spillages
Docks and harbours
