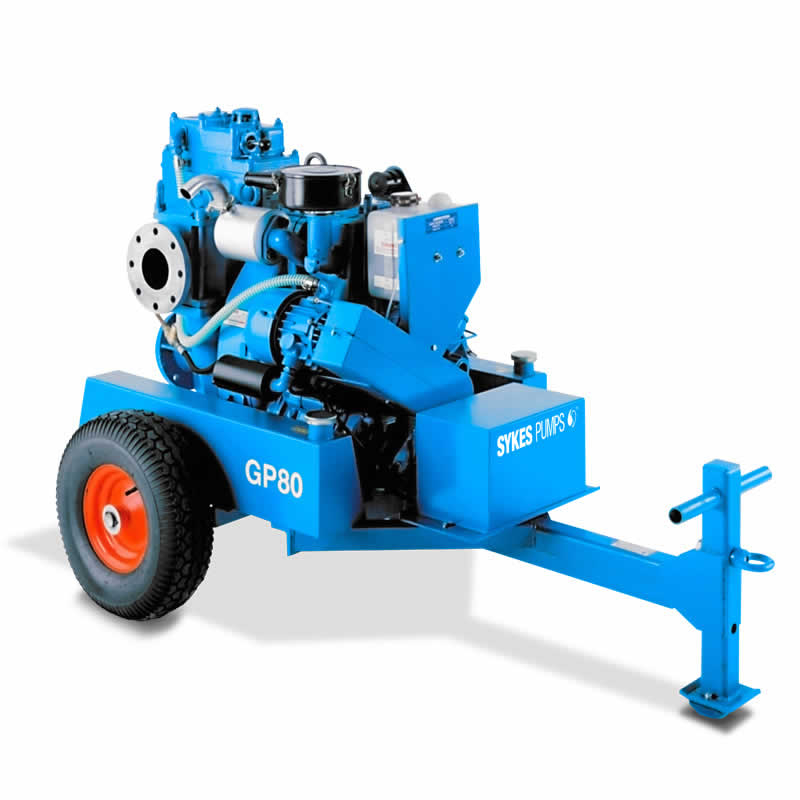

GP 80 general purpose pump

The GP 80 is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self - priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kw Lister engine. All Sykes General Purpose pumps are available with alternative engines, motors and chassis configurations.

Immediate
Dispatch

Spec Sheet Download
User Guide Download

Print this Page

Summary

Features & Environments

Specifications

Accessories

Pump performance

GP 80. Max Head: 24.0 m. Max Flow: 34.0 l/s. Max Solid: 40mm. The GP 80 dimensions are H1,093 X W1,190 X L1,700mm and it weighs 425kg excluding fuel

Weight (kg)
455 kg with fuel / 425 kg without fuel

Pump Materials
Main pump: SG grade iron

Dimension
(LxWxH)mm, 1700x1190x1093

Pipe Connections
Suction: 4” table D, Discharge: 4” table D, Bauer couplings option: 3”

Noise level
Typical noise level at 1m = 95 - 98 dBA, Typical noise level at 7m = 78 - 82 dBA

Engine(Type / Power / Speed)
Lister TR1 air cooled diesel engine developing 6.7 kW at 1800 rpm

Performance
Max head: 24 m / Max flow: 34 l/s / Max solid: 40 mm

Prime System
Oil Lubricated Rotary Vacuum Pump/ Nominal Displacement 16 cfm/ Non Return Valve

Fuel Tank Capacity
35 litres. Max 24 hour with cleaning and flushing facilities

Shaft Seal
Sykes patented Vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
