GP 80 eco

The Sykes GP80 eco pump is amongst the industry’s most durable and easily-manoeuvred models, simplifying the movement and redeployment at different points of a working site. A 35-litre fuel tank enables the pump to function continuously for up to 24 hours – underlining the product’s economic fuel consumption.

The GP80 eco unit also features the Sykes Univac vacuum system, enabling the pump to prime and re-prime fully automatically from dry. Powered by a Hatz silenced diesel engine, this particular unit has been purposefully designed for use on construction sites, utilities, and civil engineering projects.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

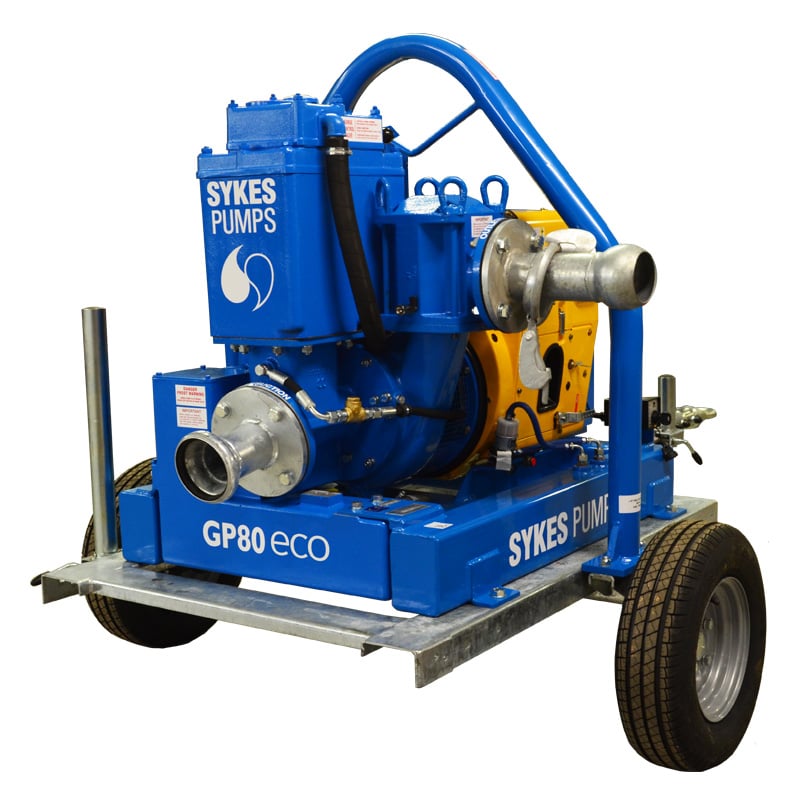

gp 80 eco Click image to Zoom

Key Features

  • Hard-wearingcast Iron parts
  • Fuel efficient enginefor hours of unattended operation
  • Corrosion resistant
  • Easily changeable shaft seals
  • Compact and manoeuvrable
  • Solids handlingup to 40 mm
  • Automatic priming and re-priming

Environments

  • Construction
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Film Production and Events
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling

Accessories

  • 3" SPLIT INTAKE
  • 3" 20FT W/A SUCTION HOSE BAUER
  • 3" 20FT POLYTUBE
  • 3" X 6M HELIFLEX PVC BAUER HOSE
  • 3" LAYFLAT HOSE PER METRE
  • 3" BLUE LAYFLAT X 25M CW BAUERS
  • 3" 90* BEND
  • 3" GATEVALVE
  • 3" NON RETURN VALVE
  • BUNDED FUEL TANK 1000 LITRE
  • RETAIL GAS OIL
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES

Specifications

Performance
Max head:- 24 m
Max flow:- 36 l/s
Max solid:- 40 mm
Weight
559 kg with fuel
525 kg without fuel
Dimensions (L x W x H)
2310 x 1470 x 1450
Noise level
@ 1m = 81 dBA
@ 7m = 72 dBA
Fuel capacity
35 litres
Pipe connections
Suction:- 4" table D
Discharge:- 4" table D
Bauer couplings:- Option 3"
Fuel Consumption
Full load @ 1800 rpm:- 1.99 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- 1.4 litres /hour
