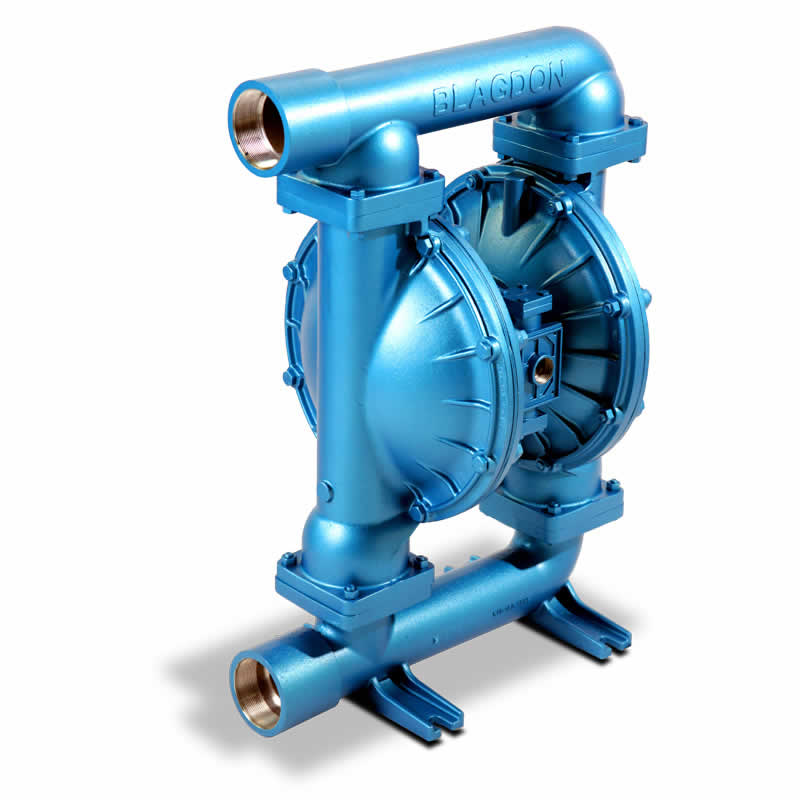

The Beaver 75 Air Pump is a double diaphragm air pump and is available with a combination of aluminium, cast iron, or stainless steel wetted parts and center section with a choice of elastomer option material. Options are available for the specific transfer of aggressive liquids or the hygienic handling of food substances.
Key Features
- Leak freepumping
- Self primingto over 6 meters
- Zero air leakagewhen stalled
Environments
- Clean and dirty water
- Food processing
- Waste water
Accessories
- 3" SPLIT INTAKE
- 3" 20FT W/A SUCTION HOSE BAUER
- 3" 20FT POLYTUBE
- 3" X 6M HELIFLEX PVC BAUER HOSE
- 3" LAYFLAT HOSE PER METRE
- 3" BLUE LAYFLAT X 25M CW BAUERS
- 3" 90* BEND
- 3" GATEVALVE
- 3" NON RETURN VALVE
Specifications
- Performance
- Max head:- 89 m
Max flow:- 13.5 l/s
Max solids:- 10 mm - Weight (kg)
- 83.7
- Dimensions (L x W x H)
- 575 x 460 x 746
- Motor
- Efficient air motor
Automatic overspeed control - Pipe connections
- 3" BSP or 3" Bauer
- Max air inlet pressure (psi)
- 125
- Max air inlet consumption (cfm)
- 160
- Note
- Side discharge and centre discharge available
