You are here: Home > Pumps > Air Pumps > BEAVER 50
  • Full Details
  • Features / Environments
  • Specifications
  • Accessories

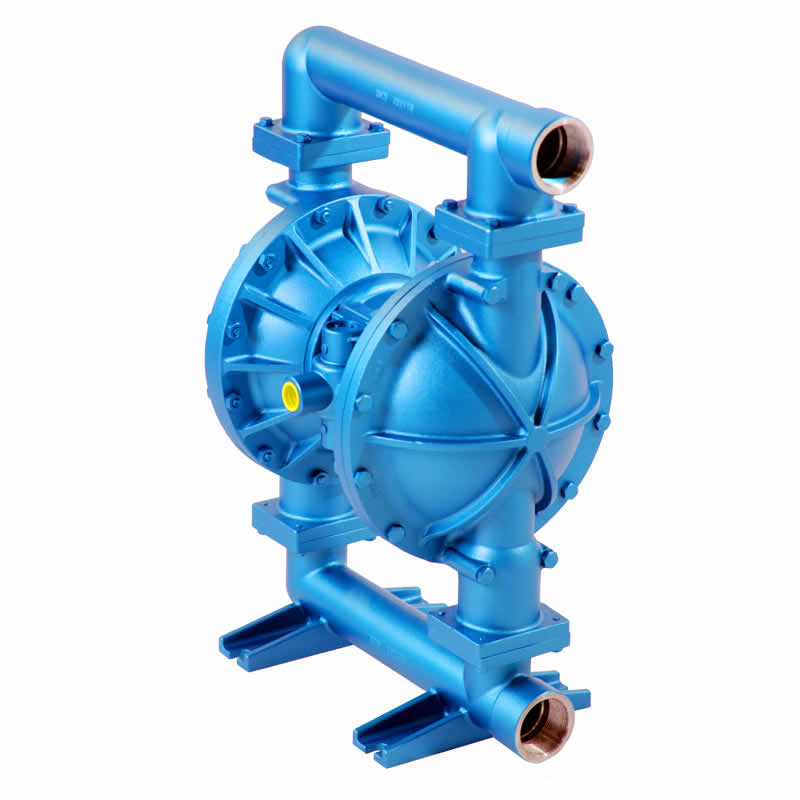

The Beaver 50 Air Pump is a double diaphragm air pump and is available with a combination of aluminium, cast iron, or stainless steel wetted parts and center section with a choice of elastomer option material. Options are available for the specific transfer of aggressive liquids or the hygienic handling of food substances .

Pump performance

Beaver 50 Air Pump . Max air inlet: 125.psi. Max air consumption: 140cfm Max Solids diameter: 6mm. The Beaver 50 Air Pump dimensions are H571 X W352 X L453mm and it weighs 41kg

Features
  • Leak free pumping
  • Self priming to over 6 meters
  • Zero air leakage when stalled
Environments
  • Clean and dirty water
  • Food processing
  • Waste water
Weight (kg)
41 kg
Health and Safety
Gloves, Boots/safety footwear, Protective clothing, Maximum temperature of fluid being pumped 100
Dimension
( LxWxH)mm: 453x352x571
Max Air Inlet Pressure
125 psi
Performance
Max head: 89 m / Max flow: 8.5 l/s / Max solid: 6 mm
Max Air Inlet Consumption
140 cfm
Pipe Connections
2” BSP
Motor
Efficient air motor, Automatic overspeed control
  • 2" SPLIT INTAKE
  • 2" 20FT W/A SUCTION HOSE BAUER
  • 2" X 6M HELIFLEX PVC BAUER HOSE
  • 2" LAYFLAT HOSE PER METRE
  • 2" BLUE LAYFLAT X 25M CW BAUERS
  • 2" BLUE LAYFLAT X 50M CW BAUERS
  • 2" 60* BEND
  • 2" GATEVALVE
  • 2" NON RETURN VALVE
