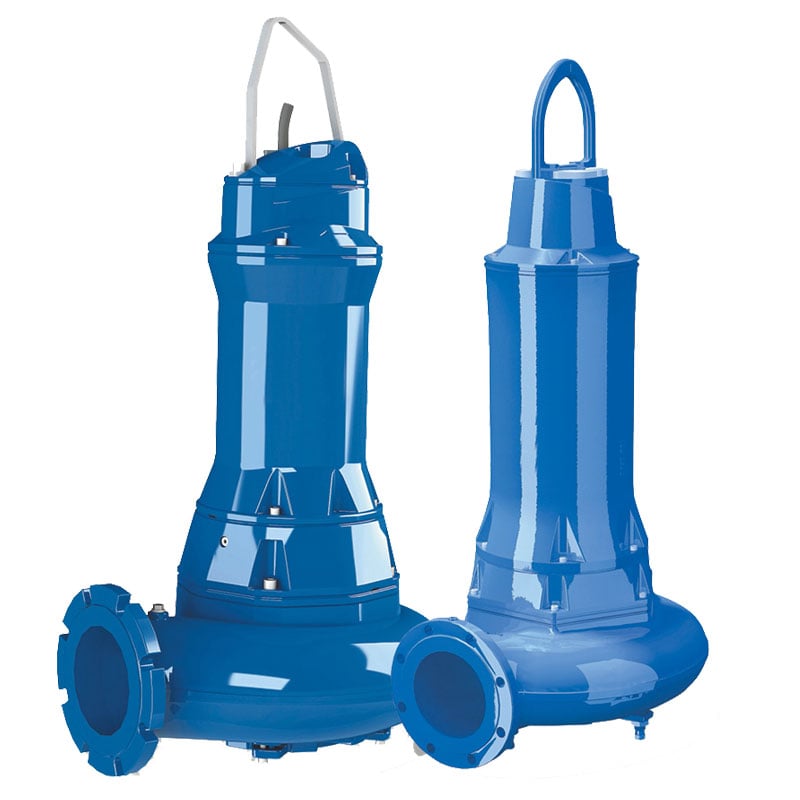

XFP100J Electric Submersible Wastewater Pumps

Sykes’ XFP100J 4” electric submersible wastewater pump has been designed for use on bypass, overpumping, sewage and emergency applications. This particular model comes in 30kW and 37kW versions and can handle solids of up to 80mm in diameter. Offering maximum flows of up to 110 litres per second and heads of up to 40 metres, the XFP100J is ATEX-rated which makes it suitable for use in explosion-proof zone II sites. The pump is compatible with a guide rail or can operate freestanding. A range of adaptors allow the unit to be modified to replace pumps from other manufacturers, making it a perfect replacement solution.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Click image to Zoom

Features

  • Contrabloc Impeller provides blockage-free operation
  • Double mechanical seals for maximum abrasive resistance
  • Premium Efficiency IE3 motor for reduce energy consumption
  • Simple design allows minimal service and maintenance
  • Easily portable so can be positioned quickly
  • Motor protection reduces the risk of damage
  • Compact so fits small spaces
  • No vibration allows smooth running and constant flows

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Manufacturing and industry
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries

Accessories

  • VARIABLE PANEL 18Kw – 56Kw
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE

Specifications

Model
XFP100J 315XFP100J 330
Motor type
415V415V
Motor rating
30kW37kW
Max power input
32kW39.4kW
Running current
54.6A68.1A
Discharge spigot
4"4"
Maximum solids
80mm80mm
EX Rated
Yes Yes
Cooling jacket
Yes Yes
Dimensions
Guide rail option
1405mm1485mm
Maximum Width
690mm690mm
Minimum Width
520mm520mm
Free standing Height
1555mm1635mm
Maximum Width
1000mm1000mm
Minimum Width
600mm600mm
Weight
640kg670kg
