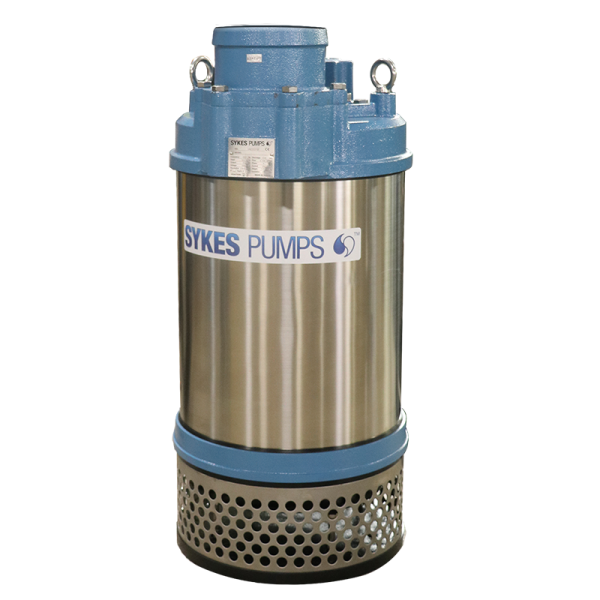

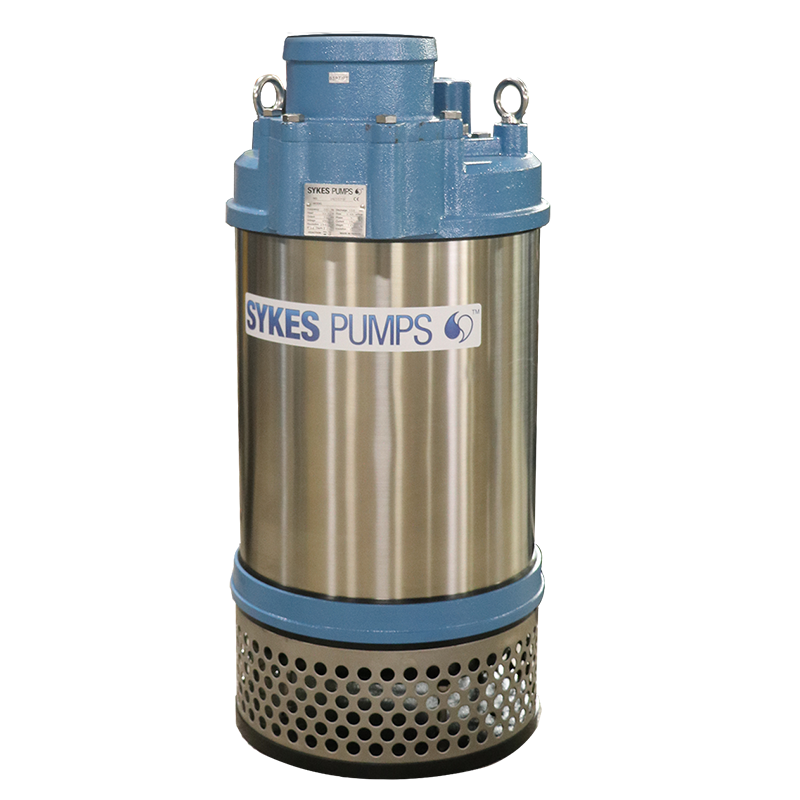

P3002N series electric submersible drainer pump

The P3002N submersible drainer is a reliable heavy-duty dewatering pump designed for arduous applications including construction sites, industrial facilities, quarries and mines. This 4/6” unit can deliver flows of up to 41 litres per second and operate at heads of up to 33m. Typically used for the transfer of nuisance water, this unit offers a dependable and robust solution and is able to handle small solids. Manufactured from hard-wearing cast iron components, the P3002N retains the excellent portability of smaller pumps while requiring only a 415V power supply in order to be instantly operational on site. These quality wear-resistant pumps are compatible with our range of control panels and can be configured to stop/start automatically to conserve power and help reduce running costs.

0800 211 611 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

Click image to Zoom

Features

  • Highly reliable and suitable for long-term use
  • Easily portable to simplify deployment
  • Plug-and-play installation for instant set-up
  • Heavy duty construction suited to arduous environments
  • Stainless steel components for abrasive resistance
  • Solids handling capability to 15mm
  • Compatible with Sykes control panels for automatic stop/start
  • Slim design permits access to small spaces

Environments

  • Construction
  • Emergency site drainage
  • Docks & Shipyards
  • Clean and dirty water pumping
  • Tunneling
  • Industrial
  • General dewatering
  • Mines & Quarries
  • Utilities
  • Power Generation

Accessories

  • P3000/SP80 LEVEL CONTROL
  • VARIABLE PANEL 1KW TO 15KW
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLY DISCHARGE HOSE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" LAYFLAT HOSE PER METRE
  • 4" BLUE LAYFLAT X 25M CW BAUERS
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • 6" 20FT W/A SUCTION HOSE BAUER
  • 6" 20FT POLY DISCHARGE HOSE
  • 6" X 6M HELIFLEX PVC BAUER
  • 6" LAYFLAT HOSE PER METRE
  • 6" BLUE LAYFLAT X 25M CW BAUERS
  • 6" X 6MTR STEEL BAUER PIPE
  • 6" 45* BAUER BEND
  • 6" 90* BEND
  • 6" GATEVALVE
  • 6" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model
P3002N
Motor type (V)
415 (3-phase) 50Hz
Motor rating (kW)
11
Running current (A)
26
Discharge spigot
4/6" Bauer
Dimensions (mm)
870 x 393
Weight (kg)
142
