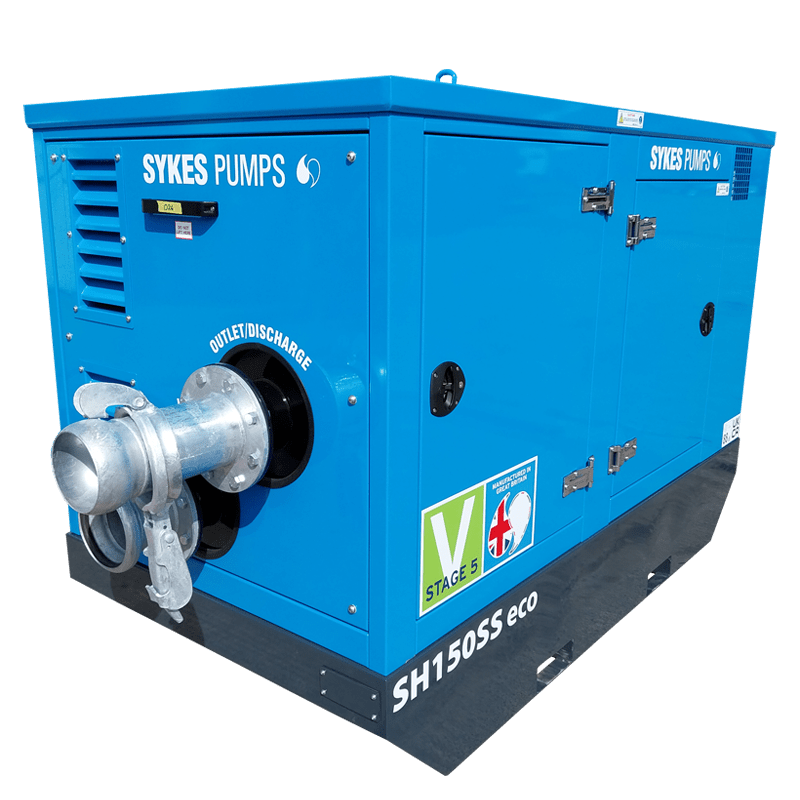

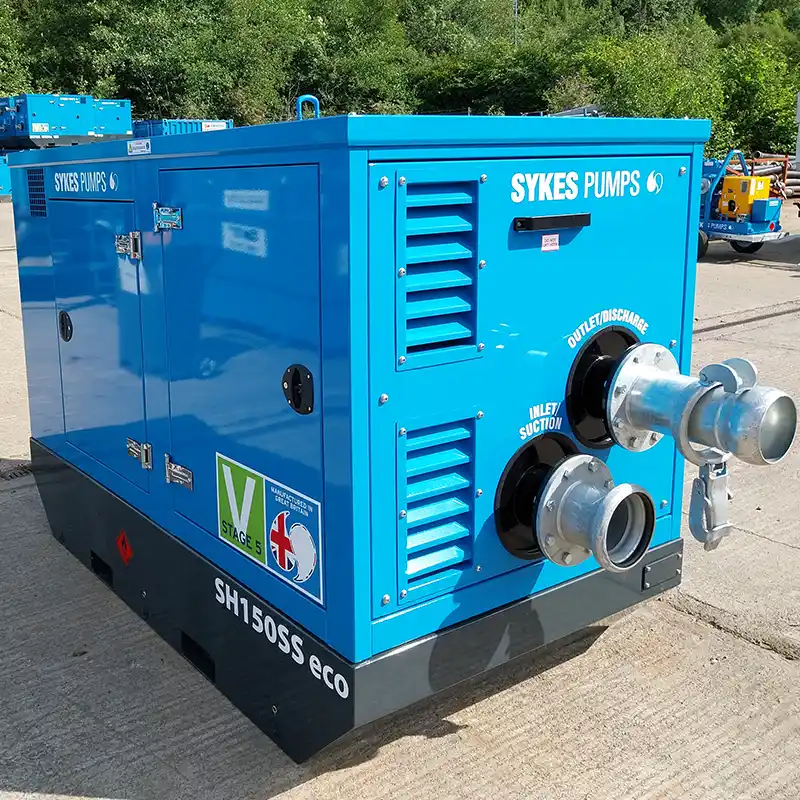

SH150 SS

The SH150 SS eco is a 6” super silenced pump designed for applications where quiet operation, fuel efficiency and environmental protection are essential.

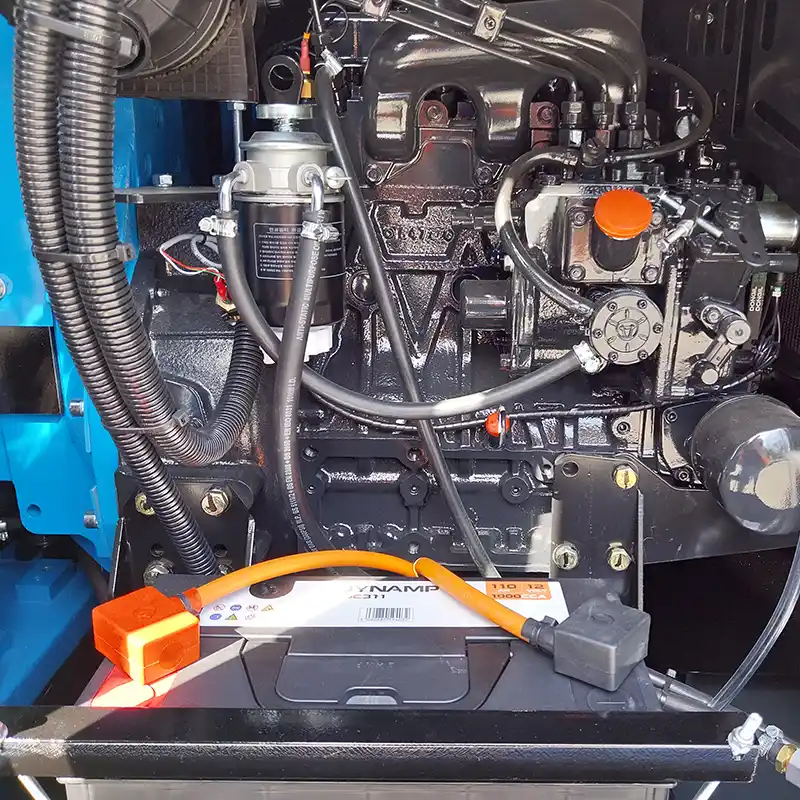

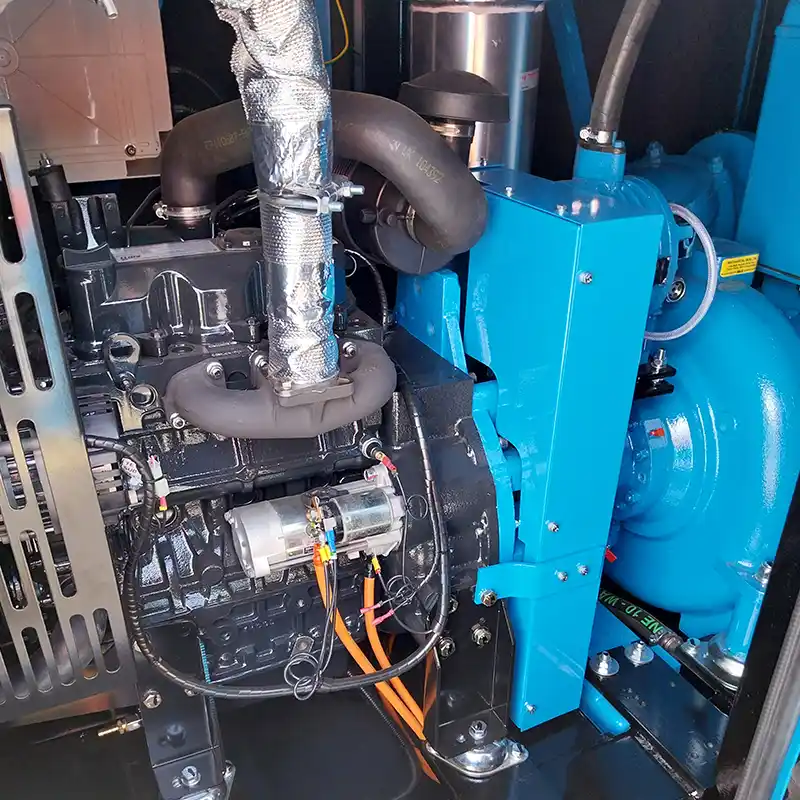

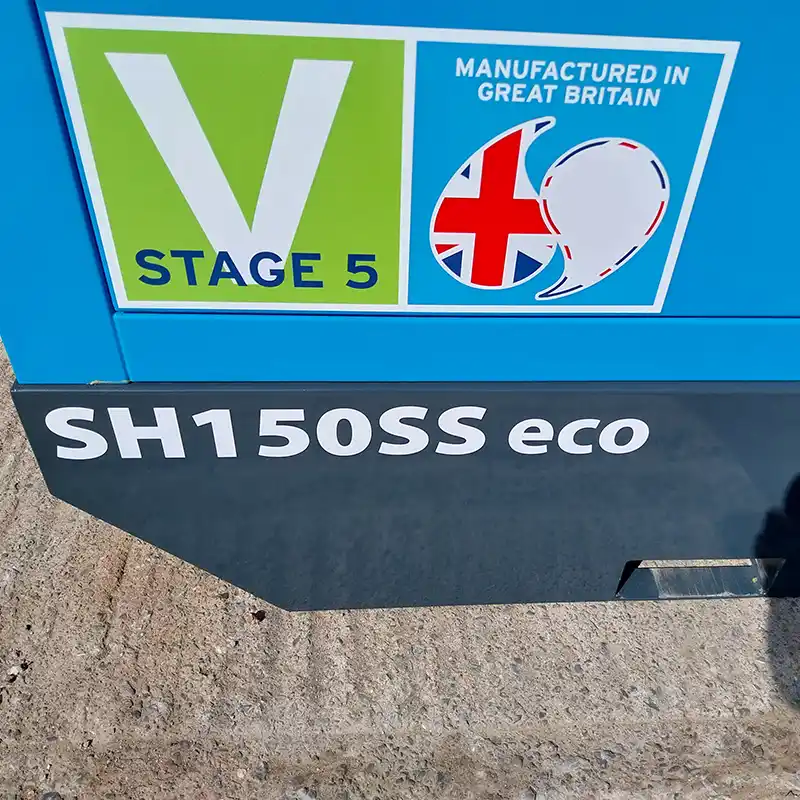

This model is powered by a modern Tier V compliant engine, significantly reducing harmful exhaust emissions in line with the latest environmental regulations. Despite its smaller engine size, the SH150 SS eco delivers outstanding performance while offering impressively low fuel consumption and reduced running costs.

A specially engineered impeller ensures excellent solids handling capabilities, making the pump ideally suited for demanding wastewater applications, including those involving high solids content or the use of polymers. The unit also features level control functionality, helping to minimise fuel usage by allowing the pump to run only when required.

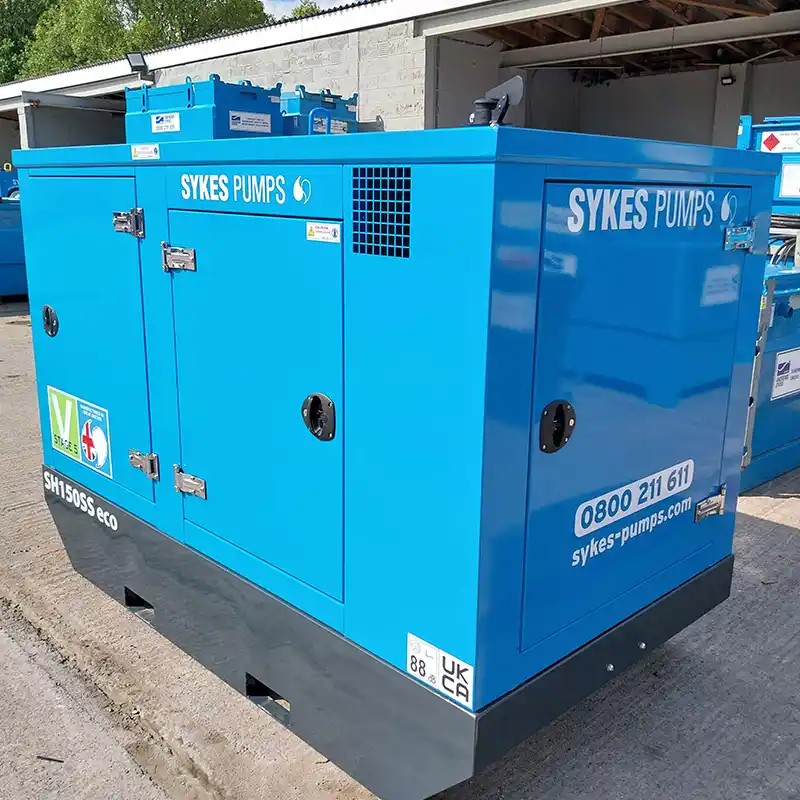

Housed within a heavy-duty acoustic canopy, the SH150 SS eco operates at low noise levels and is perfect for use in built-up or noise-sensitive areas. The unit is fully bunded to protect against oil or fuel spillages, providing an added layer of environmental security.

As with all pumps in our super silenced range, the SH150 SS eco is compatible with our advanced telemetry system, enabling remote monitoring and allowing for pro-active maintenance planning.

Key Features

Feature

Tier V engine

Reduces harmful emissions and meets latest regulations

Fuel efficient

Lower running costs and reduced fuel consumption

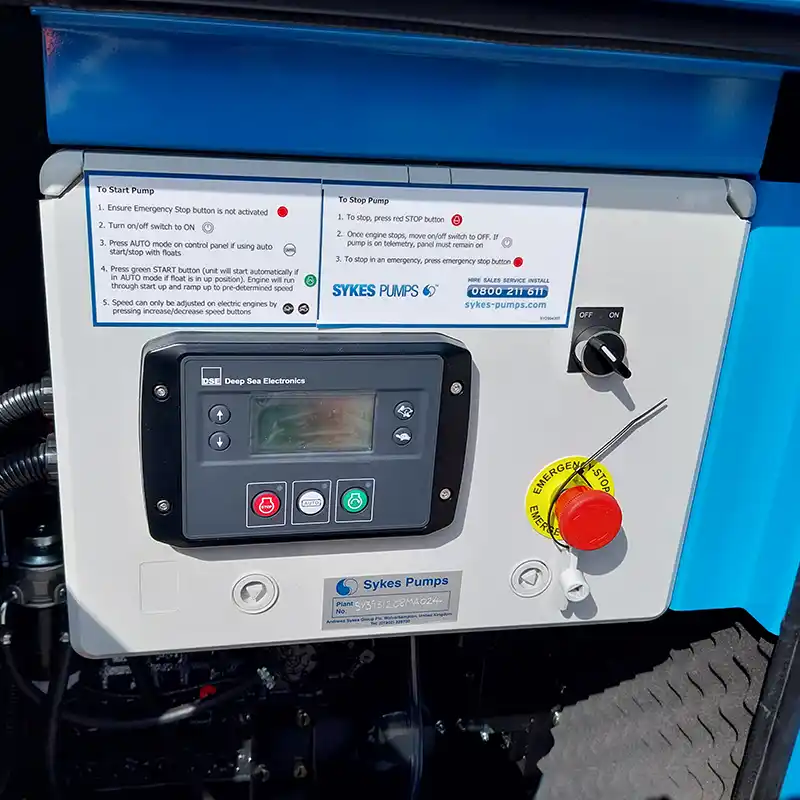

Level control

Automatic stop/start to save fuel and extend pump life

Solids handling impeller

Designed for reliable pumping of wastewater and polymers

Fully bunded

Prevents spills for added environmental protection

Super silenced canopy

Minimises noise for use in sensitive locations

Telemetry ready

Supports remote monitoring and maintenance planning

Versatile performance

Ideal for a wide range of solids handling applications

Rugged design

Built to perform in tough site conditions

Product Specification

Additional information

Perfomance	Max head: 28 m Max flow: 85 l/s Max solids: 90 x 90 mm
Weight	1600 kg without fuel
Dimensions (L x W x H)	2310 x 1250 x 1535 mm
Noise level	@1m = 72 dBA @7m = 63 dBA
Fuel Tank Capacity	175 litres
Pipe Connections	6" Table D and Bauer coupling options
Fuel Consumption	Full load @ 2,000 rpm: 4.5 litres/hour * % solids dependant

Downloads

Accessories

6″ SPLIT INTAKE
6″ 20FT W/A SUCTION HOSE BAUER
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX PVC BAUER HOSE
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 90° BEND
6″ GATE VALVE
6″ NON RETURN VALVE
TELEMETRY UNIT
FUEL TANK (EXTENDED CAPACITY)
ROADRAMP

Environments

Wastewater treatment sites
Construction and civil engineering projects
Flood relief and emergency pumping
Utilities and infrastructure maintenance
Industrial and processing plants
Residential and urban locations with noise restrictions
Environmental protection zones
Sites requiring strict emission compliance
