Super Wispaset 100 super silenced pump

The Super Wispaset 100 is a medium sized super silenced pump with a maximum head of 31 metres and a maximum flow rate of 45 litres per second. One of the quietest pumps of its size on the market, this particular model features float level control and can be configured to modern telemetry technology to allow remote monitoring, negating the need for engineers to visit site. The Super Wispaset 100 is a self-contained bunded unit, preventing potential oil spillages on site. It is suitable for a range of applications including over-pumping and wastewater transfer.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

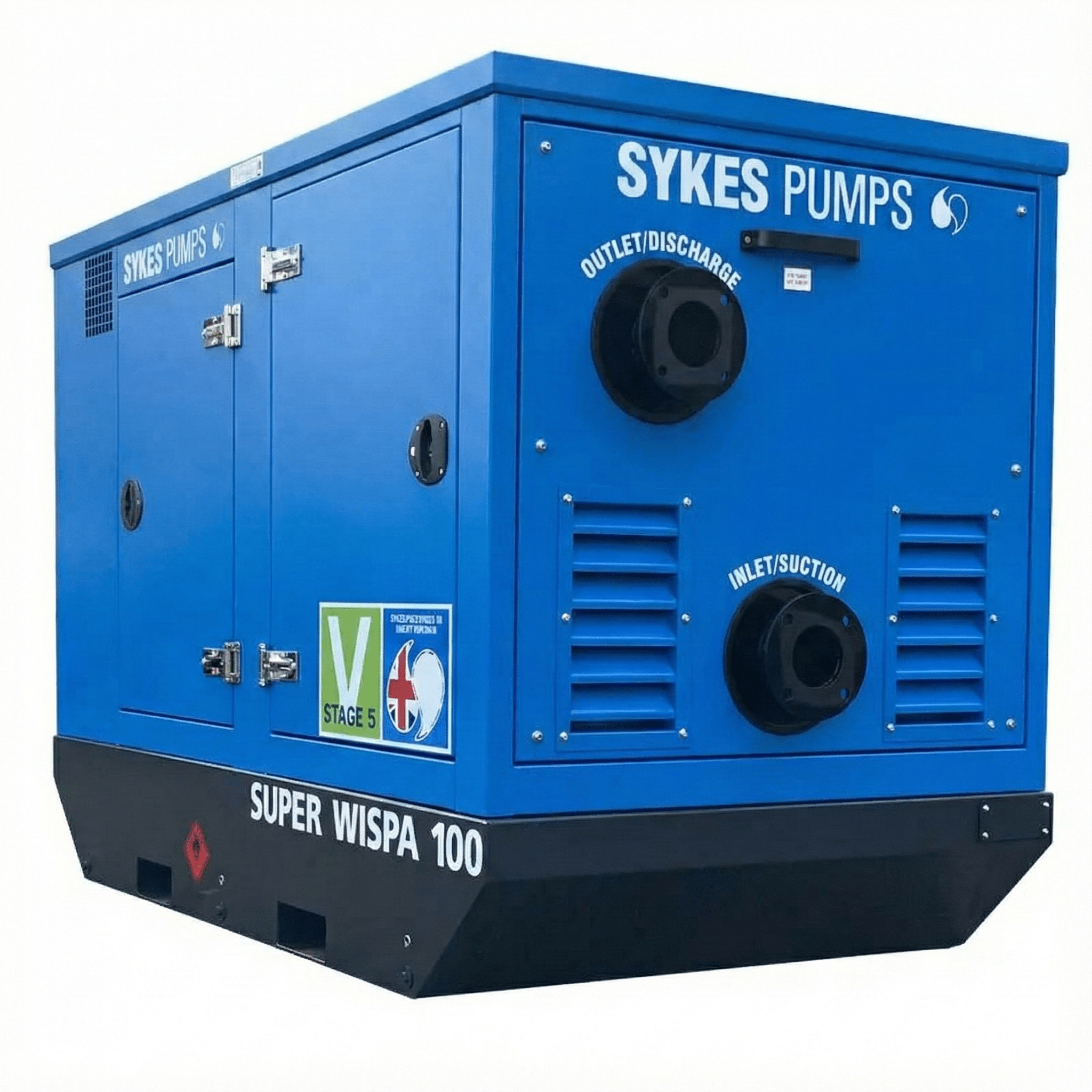

SUPER WISPASET 100 super silenced pump Anlge View Click image to Zoom

Key Features

  • Low noise operation
  • Fuel efficient operation
  • Integral fuel tank
  • Easily changeable shaft seals
  • Compact and manoeuvrable
  • Solids handlingup to 44 mm
  • Automatic priming and re-priming
  • Hard-wearing cast iron parts

Environments

  • Clean and dirty water
  • Emergency sewer repairs
  • Sludge
  • Utilities
  • Light slurry
  • Quarries
  • Over pumping
  • Civil engineering
  • Site dewatering
  • Wastewater

Accessories

  • 4" SPLIT INTAKE
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" LAYFLAT HOSE PER METRE
  • 4" BLUE LAYFLAT X 25M CW BAUERS
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE
  • RETAIL GAS OIL

Specifications

Performance
Max head:- 31 m
Max flow:- 45 l/s
Max solid:- 44 mm
Weight
1685 kg with fuel
1500 kg without fuel
Dimensions (L x W x H)
2137 x 1250 x 1535 mm
Noise level
@ 7m = 58 - 65 dBA
Fuel capacity
158 litres. Max 24 hours
Pipe connections
Suction:- 4" Table D
Discharge:- 4" Table D
Bauer couplings option
Fuel Consumption
Full load @ 1800 rpm:- 5 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- 2.25 litres/hour
