UVO 200/150F (D90) Silenced Medium & High Head

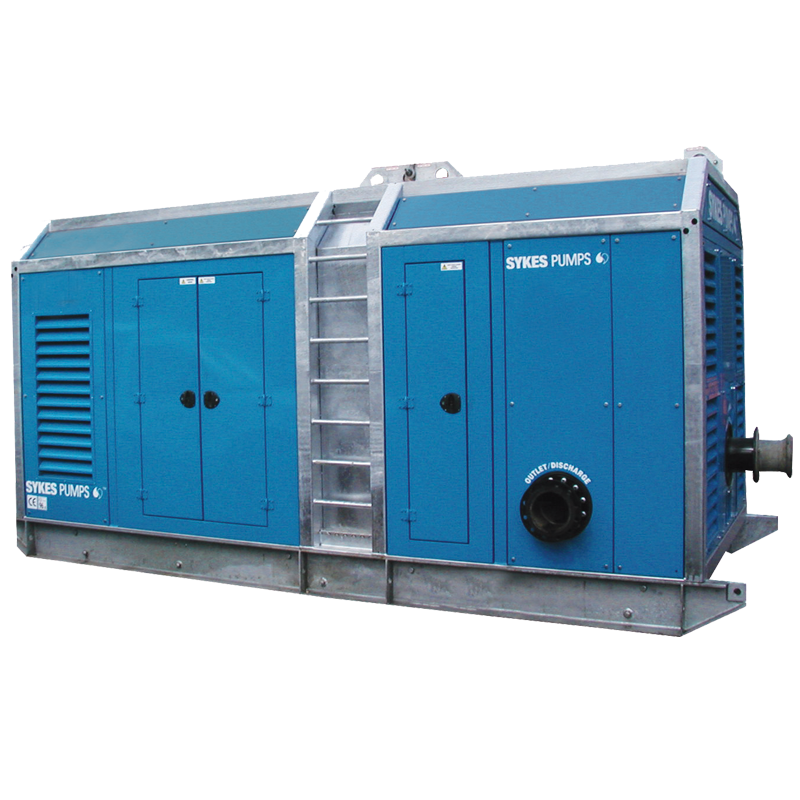

The UVO 200/150F (D90) silenced medium & high head pump is a contained hard iron unit designed for use in scenarios where high heads are required. This pump can operate at heads of up to 135 metres and deliver maximum flows of 375 litres per second, making it ideal for high capacity pumping applications. The UVO 200/150F (D90) silenced unit has built-in access points to simplify maintenance, while its high chrome iron alloy components provide sturdy resistance against abrasion and corrosion.

Key Features

Feature

Hours of unattended operation

for continuous use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Skid mounted unit

Silenced unit

for discreet operation

Economical operation

for greater fuel efficiency

Simple to maintain

60 mm solids handling

Product Specification

Additional information

Performance	Max head:- 135 m [br] Max flow:- 375 l/s [br] Max solid:- 60 mm
Weight	9600 kg
Dimensions (L x W x H)	5400 x 2200 x 2570 mm
Noise level	@ 7m = 71 dBA
Pipe Connections	Suction:- 8" Table D [br] Discharge:- 8" Table D [br] Optional Bauer Couplings
Fuel Consumption	Full load @ 1600 rpm:- 106 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1500 rpm:- 92.5 litres/hour

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
8″ 10FT STEEL PIPE
8″ 20FT STEEL PIPE
8″ FLANGED NP16 90* BEND
8″ FLANGED NP16 GATEVALVE
8″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
8″ 10FT STEEL PIPE
8″ 20FT STEEL PIPE
8″ FLANGED NP16 90* BEND
8″ FLANGED NP16 GATEVALVE
8″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Pipeline filling
Heavy Sludge
Pipeline boosting
Abrasive Slurry
Hydraulic sluicing
Pit dewatering
Quarries
Tailing deposits
Open cast mines
Slurry transfer
Construction
Ash handling
Waste water
Water boosting
