UV301M

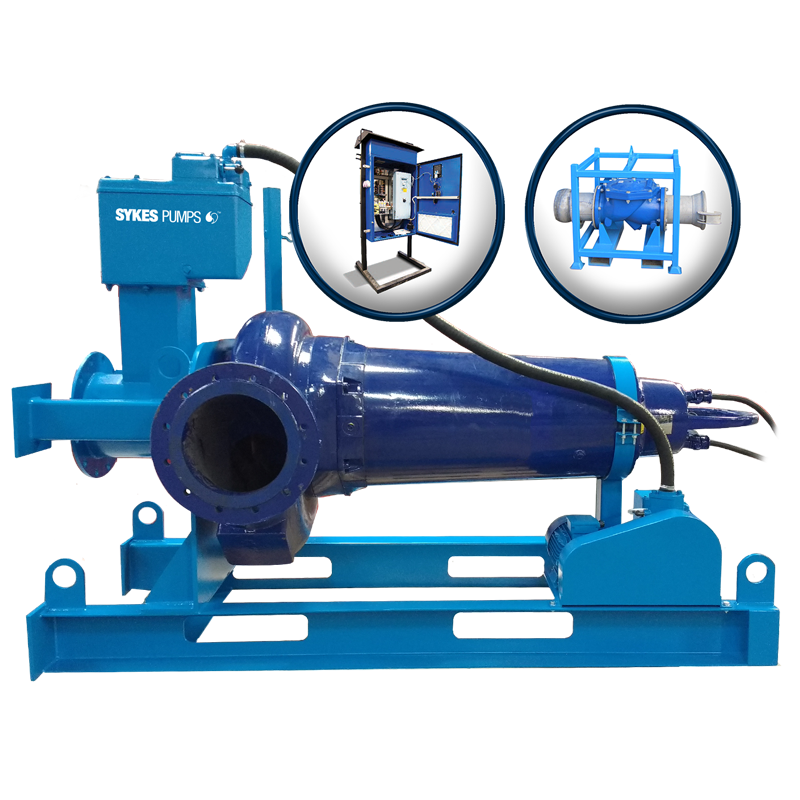

The Sykes UV301M is a prime-assisted surface-mounted capable of delivering flows of up to 450 litres per second with low associated running costs. Requiring only an electrical power source to operate, the UV301M combines economical performance with quiet functionality and a small footprint, making it ideal for situations where space is restricted, or silence is required. Featuring Sykesโ€™ renowned priming gear, this model is perfect for high-volume liquid transportation and can perform at heads of up to 36 metres. Because the UV301M is deployed at surface level, you only need to accommodate a 12โ€ suction hose through an available opening to facilitate pumping. A variable speed panel provides flexibility to suit a range of applications, with this unit specifically designed for sewage over-pumping applications, bulk water transfer, reservoirs, lagoons, flood situations and other environments.

Key Features

Feature

Feature

Low running costs

Small footprint

for use in confined spaces

Quiet operation

for noise sensitive areas

Impeller allowing

impressive solids handling

Premium Efficiency IE3 motor

for reduced energy consumption

Back flush feature

for blockage clearance

Easily portable

for swift repositioning

Motor protection

to reduce damage risk

Product Specification

Additional information

Motor Type (V)

415 (3-phase 50Hz)

Motor Rating (kW)

75 (UV301M) 2.2 (60CFM VP)

Running Current (Amps)

140 (UV301M) 4.58 (60CFM VP)

Running speed

980 rpm (UV301M) 1450 (60CFM VP)

Discharge port (mm)

300

Suction inlet port (mm)

300

Maximum solids (mm)

127 x 110

Max Power Input (kW)

16.7 kW

EX Rated

Yes

Cooling jacket

Yes

Dimensions mm (L x W x H)

2410 x 1100 x 1800 (UV301M)[br] 2920 X 1620 X 1800 (C/W fittings)[br] 920 x 920 x 980 (NRV)[br] 1768 X 920 X 980 (NRV C/W fittings)[br] 500 x 100 x 2000 (75kW VSD)

Weight (kg)

1842 kg (UV301M) [br]1920 kg (C/W fittings)[br]386 kg (NRV)[br]464 KG (NRV C/W fittings)

Accessories

  • 75Kw VFD Panel
  • 12″ W/A SUCTION HOSE X 3MTS
  • 12″ 10FT STEEL PIPE
  • 12″ FLANGED HIGH PRESSURE HOSE X 3MTS
  • 12″ 45* BAUER BEND
  • 12″ 90* BAUER BEND
  • 12″ FLANGED 45* BEND
  • 12″ FLANGED 90* BEND
  • 12″ GATEVALVE
  • 12″ NON-RETURN VALVE

Environments

  • Building and construction
  • Emergency sewage pumping
  • Bypass and over-pumping
  • Wastewater treatment sites
  • Flood restoration
  • Manufacturing and industry
  • Industrial processes
  • Agriculture
  • Utility industries
  • Commercial premises
