You are here :   Home > Pumps > General Purpose Pumps > GP 100M
Request Call Back

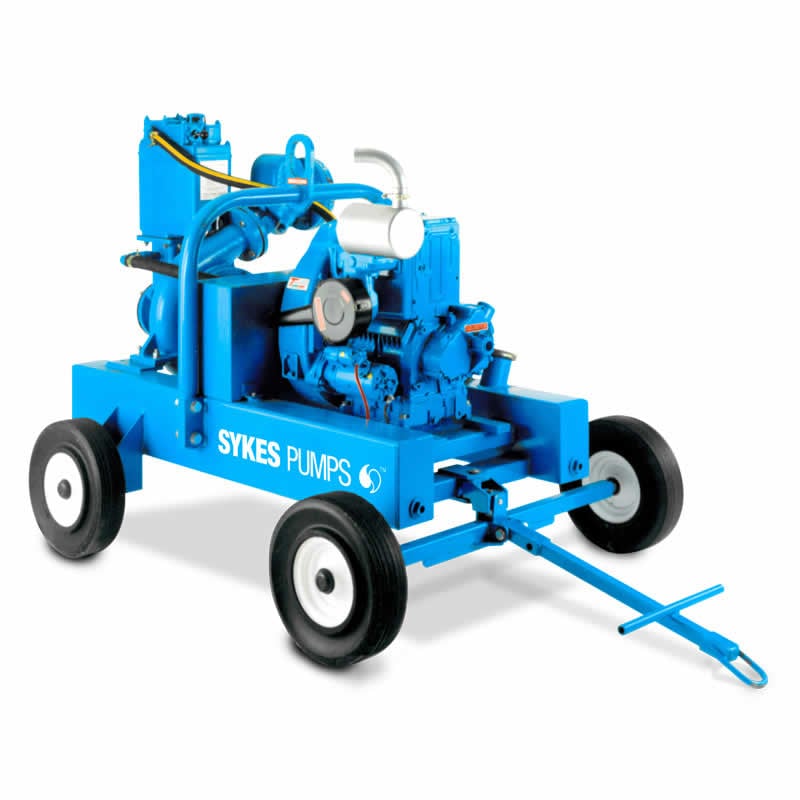

The GP 100M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self - priming, the GP 100M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 100M, is powered by a 13.1kw Lister engine. All Sykes General Purpose pumps are available with alternative engines, motors and chassis configurations.

Pump performance

GP 100M. Max Head: 31.0 m. Max Flow: 45.0 l/s. Max Solid: 44mm. The GP 100M dimensions are H1,500 X W1,450 X L1,940mm and it weighs 907kg excluding fuel

Features
  • Hard wearing cast Iron parts
  • Easy to tow
  • Corrosion resistant
  • Hours of unattended operation
  • Available as a four wheeled trailer
  • Automatic priming and re-priming
  • Available as skid mounted
  • Compact and manoeuvrable
  • Available as a high speed road trailer
  • Choice of engines
  • Electric motor option
  • Easy maintenance
Environments
  • Clean and dirty water
  • Over pumping
  • Heavy Sludge
  • Site dewatering
  • Heavy Slurry
  • Quarries
  • Waste water
Weight (kg)
1011 kg with fuel / 907 kg without fuel
Pump Materials
Main pump: SG grade iron
Dimension
(LxWxH)mm: 1940x1450x1500, typical length including tow bar 2620mm
Pipe Connections
Suction: 4” table D, Discharge: 4” table D, Bauer couplings option: 4”
Noise level
Typical noise level at 1m = 94 - 98 dBA, Typical noise level at 7m = 77 - 82 dBA
Engine(Type / Power / Speed)
Lister TR2 air cooled diesel engine developing 13.1 kW at 1800 rpm
Performance
Max head: 31 m / Max flow: 45 l/s / Max solid: 44 mm
Prime System
Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 25 cfm/ Non Return Valve
Fuel Tank Capacity
69 or 122 litres. Max 24 hour with cleaning and flushing facilities
Shaft Seal
Sykes patented Vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
Fuel Consumption
Typical fuel consumption on full load @ 1800 rpm: 3.7 litres/hour
Health and Safety
Ear Defenders, Gloves, Boots/safety footwear / Protective clothing, Noise power level Lwa:107 dB
Chassis
4 wheel site trailer / high speed trailer/ Skid mounted / Skid mounted C/w Roll cage
  • 4" SPLIT INTAKE
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" LAYFLAT HOSE PER METRE
  • 4" BLUE LAYFLAT X 25M CW BAUERS
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • RETAIL GAS OIL
  • BUNDED FUEL TANK 1000 LITRE
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE
