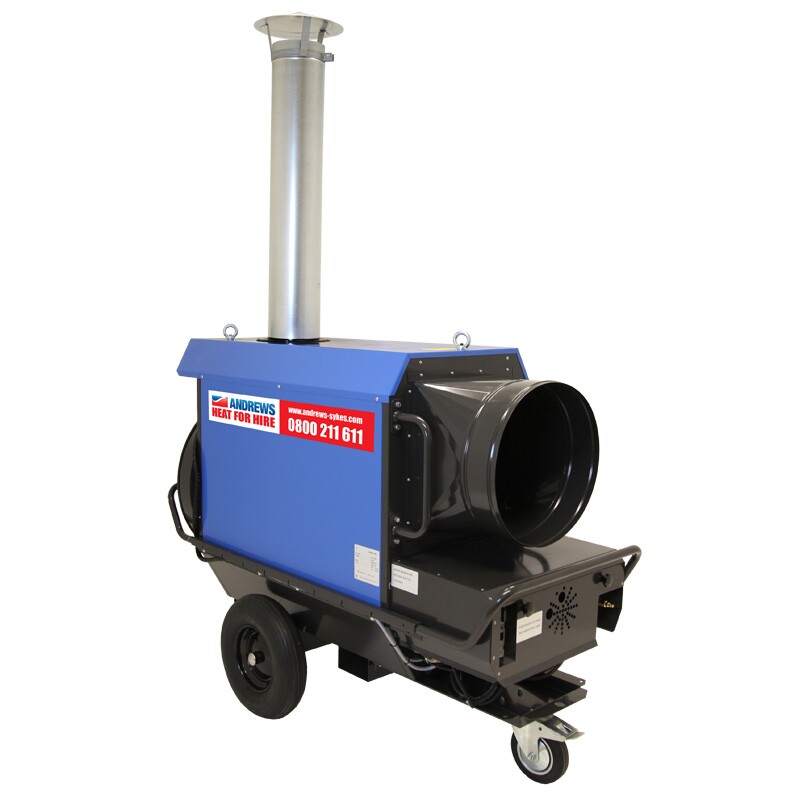

The ID65 is a high-capacity oil-fired heater with a nominal heating duty of 65kW. A single unit is able to heat areas up to 1,625m³ in size, consuming 5.25l/h of fuel on average.
Mounted on wheels to aid manoeuvrability, the ID65 is available with up to 24m of ducting and will operate on either a 230V or 110V power supply.
Once stationed in a selected area, the heater can be commissioned almost instantly, and can be supplied with automatic external controls if required.
Features
|
|
Environments
|
|
- Nominal heating duty
- 65 kW 221910 btu
- Duct size
- 1 x 450 mm
- Air flow (max)
- 4460 m3/h
- Fuel Consumption
- 5.25 l/h
- Power supply
- 230/110V 1 ph 50 Hz Run 4.1/9.0 A
- Typical heated area
- 1625 m3
- Noise level (max)
- 72 dBA @ 1 metre
- Fuel type
- Gas Oil
- Weight (kg)
- 230 kg
- Dimensions (L x W x H)
- 1580 x 730 x 1300 mm
- Control
- Manual (external controls available)
- Flue size (min)
- 1 mt x 180 mm
- Plug type
- BS1363 230 V / BS4343 16 A 110V
- Fuel tank
- Remote fuel tank required
- Duct length (max)
- 24 metres
- RCD
- 230V / 110V 5KVA CONTINIOUS TRANSFORMER
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 20M x 230V EXTENSION LEAD 2.5MM DIA
- 10M x 110V EXTENSION LEAD 2.5MM DIA
- 20M x 110V EXTENSION LEAD 2.5MM DIA
- T16 THERMOSTAT C/W 10M CABLE
- 127MM EXHAUST FLUE PER METER
- 8M X 450MM HEATER DUCT (18"")
- DUCT Y 450MM TO 2 X 300MM
- 450MM COUPLER/CONNECTING COLLAR
- 8M X 300MM HEATER DUCT (12"")
- 300MM COUPLER/CONNECTING COLLAR
- SPECIAL AIR DIFFUSER (SAD BOX)
- BUNDED FUEL BUGGY 110 LITRE
- 5M HP FUEL LINE
- GAS OIL
