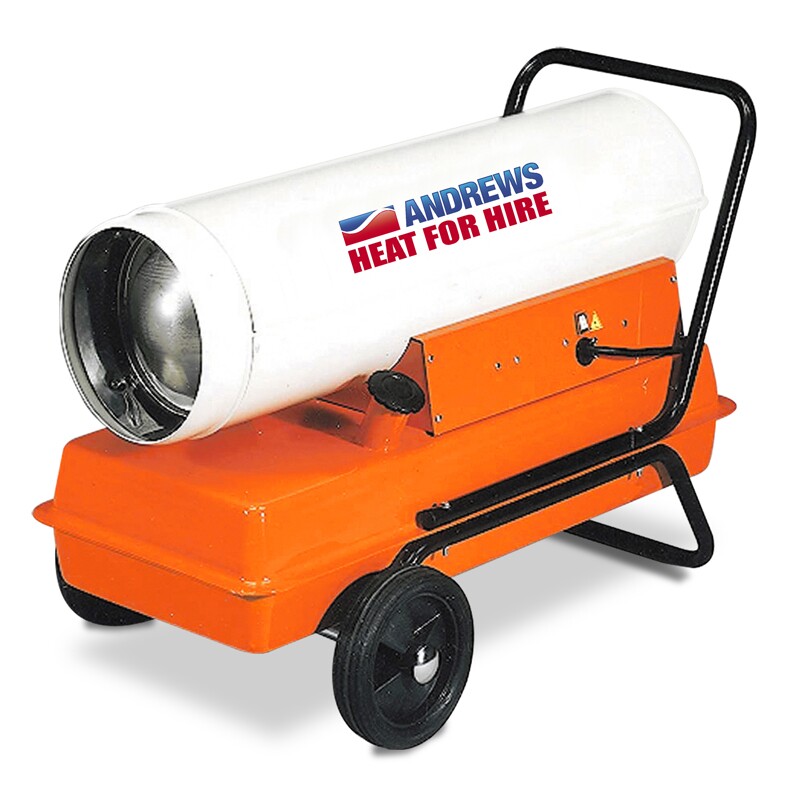

Model 40 direct fired portable oil heater
The Model 40 is a lightweight, fully portable direct fired gas oil heater designed for use in well-ventilated environments. This unit produces high volumes of warm air, with a heating capacity of 43kW, making it suitable for areas of up to 1,050m³ in size. The unit features a built-in fuel tank enabling immediate functionality and is available with either 230V or 110V electric supply. The Model 40 is mounted on a two-wheel trolley and can be relocated easily, making it suitable for a range of applications including loading bays, warehouses and sports halls.
Key Features
- Wheel-mountedfor easy transportation
- Fully automatic operationcan run unattended
- Robust constructionwill stand up to the rigour of industrial use
- 110V or 230Vsuitable for all applications
- Easy installationplug in and switch on
- Fully portablecan be positioned easily
- Built in fuel tankenabling immediate functionality
- External thermostatset desired temperature
Environments
- Factories
- Garages
- Warehouses
- Sports halls
- Farm buildings
- Loading bays
- Construction sites
- concrete batching plants
Specifications
- Nominal heating duty
- 43 kW
- Air flow
- 1,050 m3/h
- Typical heated area
- 1,050 m3
- Power supply
- 230 or 110 V 1 ph 50 Hz versions available Run 2/4.1 A
- Plug type
- BS1363 230v / BS4343 16 A 110v
- Noise level
- 79 dBA @ 1 metre
- Weight
- 37 kg (fuelled 87 kg)
- Dimensions (L x W x H)
- 930 x 560 x 615 mm
- Control
- Manual (external controls available)
- Fuel type
- Gas Oil
- Fuel consumption
- 4.6 l/h
- Tank capacity
- 46 litres 10 hours per tank
- Hours run
- 10 hours per tank
