G30 DV direct fired portable gas heater

The G30 DV is an efficient and economical direct fired gas heater designed for use in well-ventilated areas. The modern unit features a built-in circulation fan and can operate on either a 230V or 110V power supply. With a nominal heating duty of 38.6kW, this particular heater is ideal for increasing the temperature in areas of up to 923m³ in size. The manually-controlled G30 DV portable unit can be commissioned almost instantly, generating large volumes of warm air within seconds of deployment. These features make the product ideal for a wide range of everyday applications, including marquees, exhibitions and storage facilities.

0800 5875524 Get A Quote

Please complete the form below, so we can provide you a quick and efficient service.

You can find a list of our locations across the UK and Worldwide.

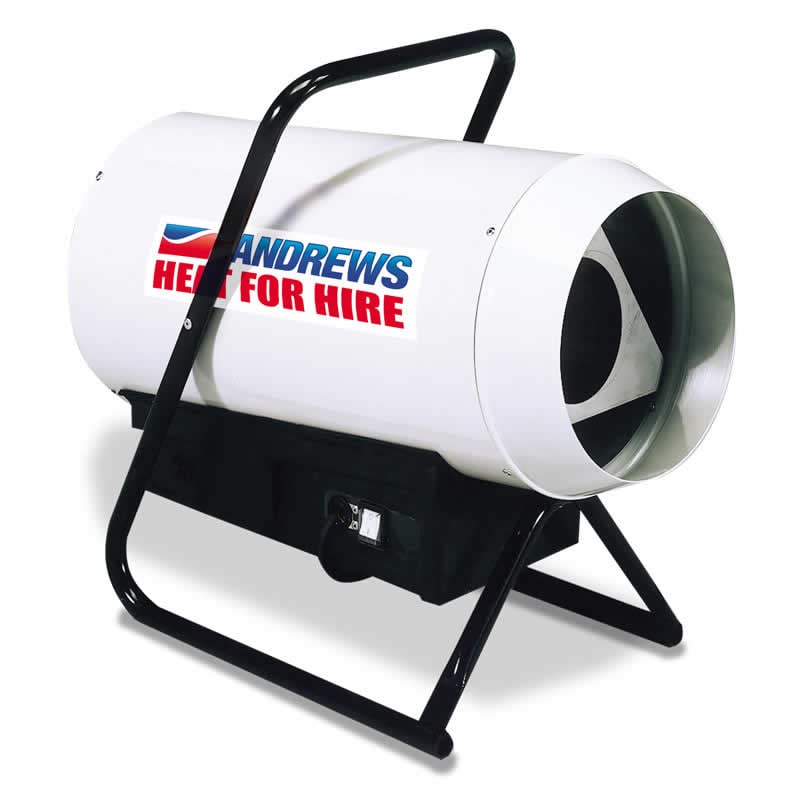

G30 DV 15386kW Angle View Click image to Zoom

Key Features

  • Fully automatic operationcan run unattended
  • Robust constructionwill stand up to the rigour of industrial use
  • 110V or 230Vsuitable for all applications
  • Delivers large volumesof warm air
  • Easy installationplug in and switch on
  • Fully portablecan be positioned easily
  • Stylish designfits discretely into any environment
  • Economicalreducing running costs

Environments

  • Offices
  • Storerooms
  • Computer rooms
  • Workshops
  • Shops
  • Manufacturing facilities
  • Exhibition halls
  • Product storage
  • Hotels
  • Restaurants
  • Archives
  • Hospitals
  • Schools
  • Data centres
  • Agricultural
  • Scheduled chiller maintenance
  • Process cooling

Accessories

  • RCD
  • 230V / 110V 3KVA CONTINIOUS TRANSFORMER
  • 10M x 230V EXTENSION LEAD 2.5MM DIA
  • 20M x 230V EXTENSION LEAD 2.5MM DIA
  • 10M x 110V EXTENSION LEAD 2.5MM DIA
  • 20M x 110V EXTENSION LEAD 2.5MM DIA
  • PIGTAIL/TEE MANIFOLD
  • 47KG PROPANE GAS (MIN 2 BOTTLES)

Specifications

Nominal heating duty
38.6 kW
Air flow
750 m3/h
Typical heated area
923 m3
Power supply
230/110 V 1 ph 50 Hz Run 0.4/0.8 A
Plug type
BS1363 230 V BS4343 16 A 110 V
Noise level
72 dBA @ 1 metre
Weight
15.5 kg
Dimensions (L x W x H)
610 x 372 x 480 mm
Control
Manual
Fuel type
LPG Propane only
Fuel consumption
1.15 kg/h
Minimum cylinder(s)
2 x 47 kg
Max. operating pressure
1.5 bar
