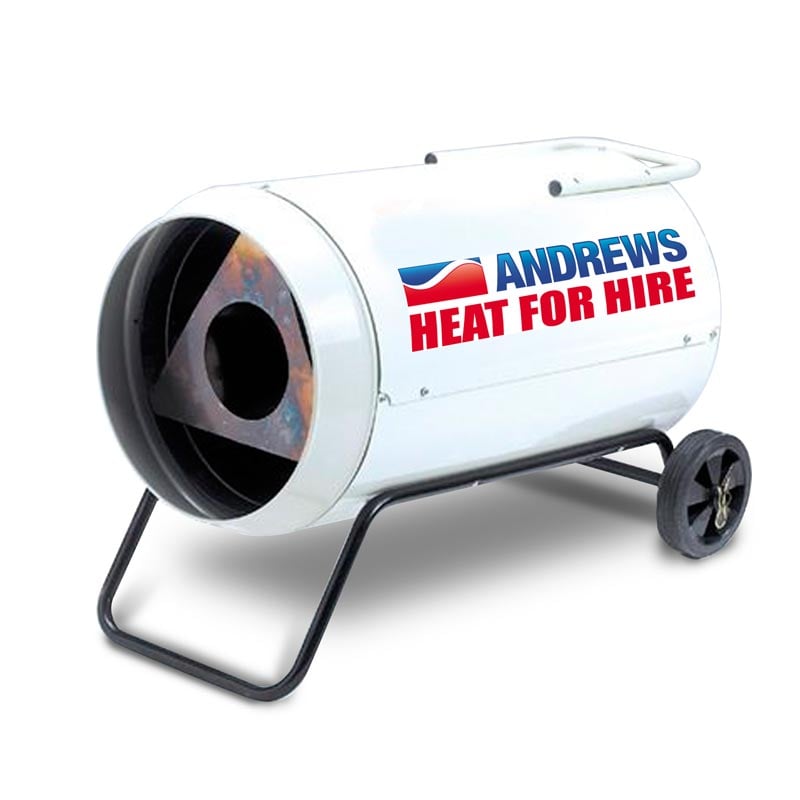

G80 DV Direct Fired Gas heater
The G80 DV direct-fired heater is an economical unit designed for use in well-ventilated areas. Reliable while in use and easy to manoeuvre, the product is stylishly designed and suitable for deployment in factories, garages and warehouses.
- Full Details
- Features / Environments
- Specifications
- Accessories
This particular model of heater is capable of efficient operation, and has an average fuel consumption of 6.4kg/h. With a nominal heating duty of up to 82.43kW, the unit is ideal for areas of up to 1,930m³ in size.
The G80 DV runs on liquefied petroleum propane gas and works with both an 110V or 230V power supply. Weighing just 25kg, this product can be constantly relocated if necessary, making it well-suited to a wide range of environments.
Once stationed in a desired area, the manually-controlled heater can be commissioned almost instantly, generating large volumes of warm air.
Features
|
|
Environments
|
|
- Nominal heating duty
- 82.43 kW 281251 btu
- Fuel type
- LPG Propane only
- Air flow (max)
- 2190 m3/h
- Minimum cylinder(s)
- 3 x 47 kg
- Power supply
- 230/110V 1 ph 50 Hz Run 6.5/1.3 A
- Max. operating pressure
- 2 bar
- Noise level (max)
- 77 dBA @ 1 metre
- Dimensions (L x W x H)
- 878 x 450 x 579 mm
- Weight (kg)
- 25 kg
- Fuel consumption (max)
- 6.44 kg/h
- Plug type
- BS1363 250 V BS4343 16A 110V
- Control
- Manual
- Typical heated area
- 1930 m3
- RCD
- 230V / 110V 3KVA CONTINIOUS TRANSFORMER
- 10M x 230V EXTENSION LEAD 2.5MM DIA
- 20M x 230V EXTENSION LEAD 2.5MM DIA
- 10M x 110V EXTENSION LEAD 2.5MM DIA
- 20M x 110V EXTENSION LEAD 2.5MM DIA
- PIGTAIL/TEE MANIFOLD (MIN 2)
- 47KG PROPANE GAS (MIN 3 BOTTLES)
