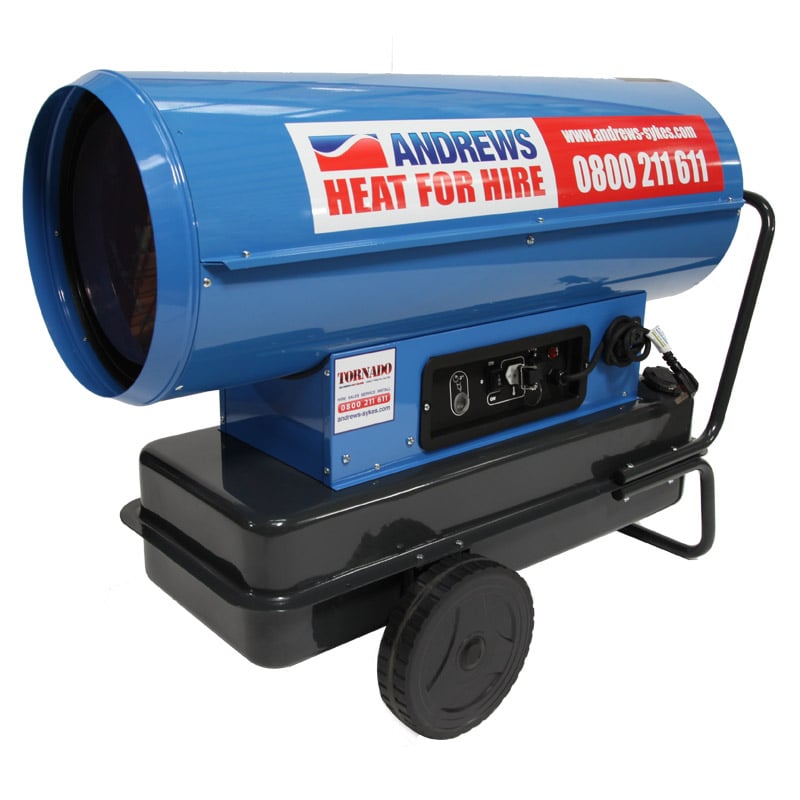

Tornado direct fired portable oil heater

  • Nominal heating duty 69 kW
  • Typical heated area 2,500 m3
  • Fuel Consumption 5.5 l/ h

Product Features

wheel-mounted

for easy transportation

Fully automatic operation

can run unattended

Robust construction

will stand up to the rigour of industrial use

110V or 230V

suitable for all applications

Easy installation

plug in and switch on

Fully portable

can be positioned easily

Built in fuel tank -enabling immediate functionality

External thermostat

set desired temperature

Description

The Tornado is a heavy duty direct fired oil heater which has a heating capacity of 69kW, providing large volumes of warm air for areas of up to 2,500m³ in size. The Tornado comes complete with a built-in fuel tank and runs on gas oil working with either an 110V or 230V power supply. Weighing just 58kg, this wheel-mounted product can be automatically operated by using a thermostatic controller, making it well-suited to a wide range of well-ventilated environments such as farm buildings, loading bays and construction sites.

Accessories

RCD
230V / 110V 3KVA CONTINIOUS TRANSFORMER
10M x 230V EXTENSION LEAD 2.5MM DIA
20M x 230V EXTENSION LEAD 2.5MM DIA
10M x 110V EXTENSION LEAD 2.5MM DIA
20M x 110V EXTENSION LEAD 2.5MM DIA
GAS OIL
T16 THERMOSTAT C/W 10M CABLE

Specifications

Nominal heating duty 69 kW
Air flow (max) 2,500 m3/h
Typical heated area 2,500 m3
Power supply 230 or 110 V 1 ph 50 Hz Run 2.8/5.62 A
Plug type BS1363 230 V / BS4343 16 A 110 V
Noise level (max) 71 dBA @ 1 metre
Weight 58 kg (fuelled 123 kg)
Dimensions (L x W x H) 1,200 x 555 x 860 mm
Control Manual (external controls available)
Fuel type Gas Oil
Fuel consumption Tank 5.5 l/ h
capacity 65 litres
Hours run 12 hours per tank
