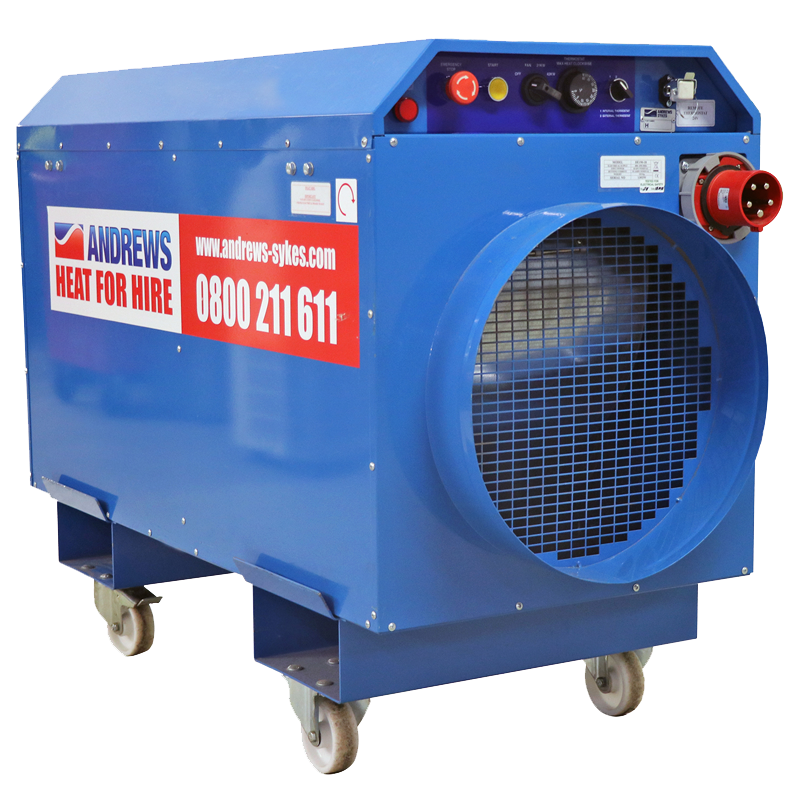

DE 190 portable electric heater

The DE190 is a high capacity electrical heater with three different power settings – 21kW, 42kW and fan only – and is capable of running from a 63amp, 415-volt power supply. It is ideal for heating large industrial spaces of up to 1,200m³ in size. This fully portable fan heater can generate a maximum air flow of 4,500m³/h, underlining its suitability for a broad range of heavy duty environments. The DE190 comes complete with an optional remote thermostat and is an ideal heating source for virtually any setting that requires high capacity fume free warm air. These include manufacturing facilities, building sites and tank drying applications.

Key Features

Feature

Fully portable

can be easily positioned

Robust construction

will stand up to the rigour of industrial use

Fully automatic operation

can run unattended

Compact and light

for easy transportation

Internal and external thermostat

set desired temperature

Economical

reducing running costs

Easy installation

plug in and switch on

Quiet operation

no sound disruption

High capacity

delivers huge volumes of warm air

Product Specification

Additional information

Nominal heating duty	42 kW
Air flow (max)	4500 m3/h
Typical heated area	1,200 m3
Power supply	415 V 3ph N + E 50 Hz Run 52 A
Plug type	BS4343 3 ph 5 pin 63 A
Generator size	60 kVA
Noise level (max)	68.7 dBA @ 3 metres
Weight	120 kg
Dimensions (L x W x H)	1,360 x 630 x 950 mm
Duct length (max)	32 metres
Duct size	450 mm
Control	Manual (external controls available)
Average power consumption	42 kW/h

Downloads

Accessories

T16 THERMOSTAT C/W 10M CABLE
10M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
8M X 450MM DUCTING
DUCT CLIP
DUCT Y 450MM TO 2 X 300MM
8M X 300MM HEATER DUCT (12″”) MAX 32M
300MM COUPLER/CONNECTING COLLAR

Environments

Large workshops
Manufacturing facilities
Product storage
Building sites
Tank drying
Agricultural
Temperature control
Industrial units
Ship building
Yacht maintenance
